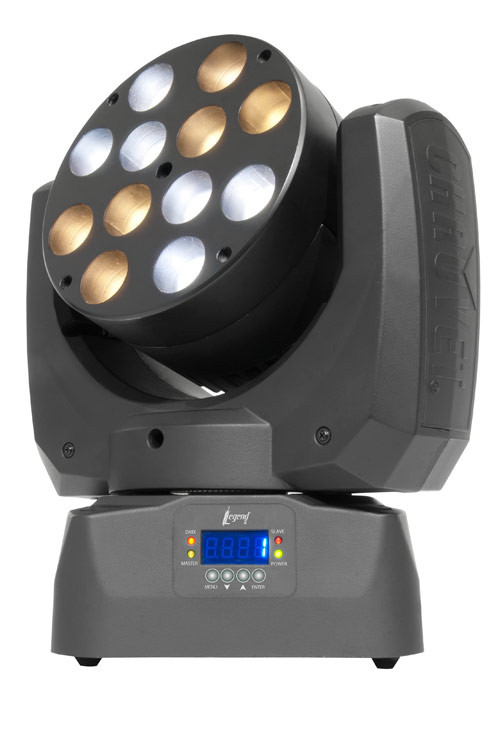

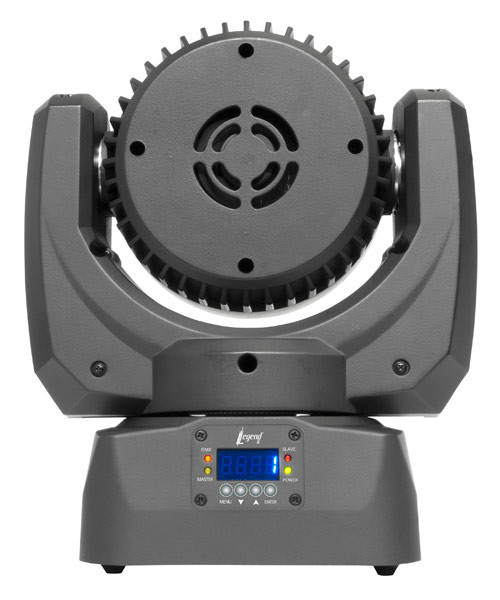

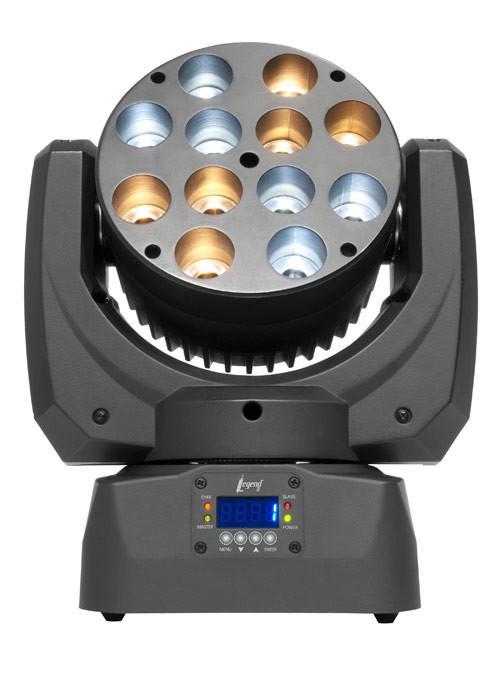

Chauvet Professional Legend 412 VW Quad-Colored LED

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

chauvet professional legend412vw
chauvet professional legend412vw Chauvet Professional Legend 412 VW Quad-Colored LED Chauvet Professional Legend 412 VW Quad-Colored LED Chauvet Professional Legend 412 VW Quad-Colored LED
Images may show accessories or configurations not packaged with this item.
Legend' 412 VW shares the architecture of the Legend' 412 but incorporates the variant of warm and cool white quad-colored Cree LEDs for better, purer whites and the flexibility of color temperature selection to go from warm and inviting, to crisp and cold shades. Fast and precise, it too, is capable of dynamic pixel-mapping effects and internal chases.

• DMX channels: 10 or 20
• Operating modes:
10 channel - basic operation
20 channel - advanced operation with quaderent control
• Color Mixing: Warm White, Cool White
• Color Temperature Range: 3,4006,500 K
• Electronic shutter
• Electronic dimmer
• All functions reset over DMX
• Move in Black over DMX or on display
• Movement Macros with speed adjustment
• Color Macros with speed adjustment
• Electronic power supply
• IEC power cable
• Fast movement
• Bright white quad color LEDs
• Quadrant control of output
• Strobe macros with quadrant strobe
• Flicker free operation for HD cameras


• DMX connectors: 5-pin
• Pan & tilt: 630 / 200
• Source: 12 (10W) quad color LEDs, 50,000 hrs
• Configuration: 12 VW (700 mA per die)
• Beam angle: 12
• Field angle: 23
• Lux: 1,680 @ 5 m
• AC Voltage Range: 100240 V, 50/60 Hz (auto-ranging)
• Power Consumption 120 V, 60 Hz: 145 W, 1.8 A (operating)
• Power Consumption 230 V, 50 Hz: 170 W, 0.5 A (operating)
• Dimensions: 5.5 x 10.1 x 12 in (140 x 256 x 304 mm)
• Weight: 10.1 lbs (4.58 kg)
• Certification: CE, MET
• Environment: IP20, indoor/dry

Additional Information

ManufacturerChauvet Professional
Product ConditionNew - On Clearance
