Chauvet Professional LEGEND412Z LED Wash Fixture

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

chauvet professional legend412z
chauvet professional legend412z Chauvet Professional LEGEND412Z LED Wash Fixture Chauvet Professional LEGEND412Z LED Wash Fixture Chauvet Professional LEGEND412Z LED Wash Fixture Chauvet Professional LEGEND412Z LED Wash Fixture Chauvet Professional LEGEND412Z LED Wash Fixture Chauvet Professional LEGEND412Z LED Wash Fixture Chauvet Professional LEGEND412Z LED Wash Fixture

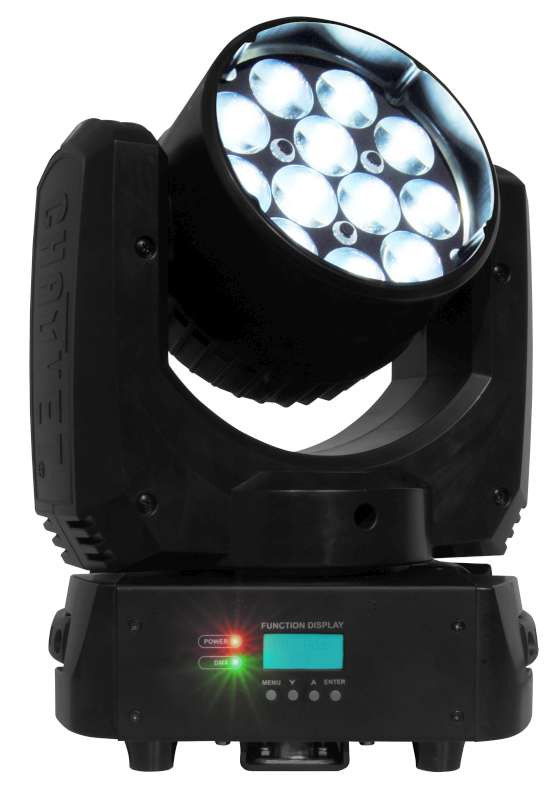

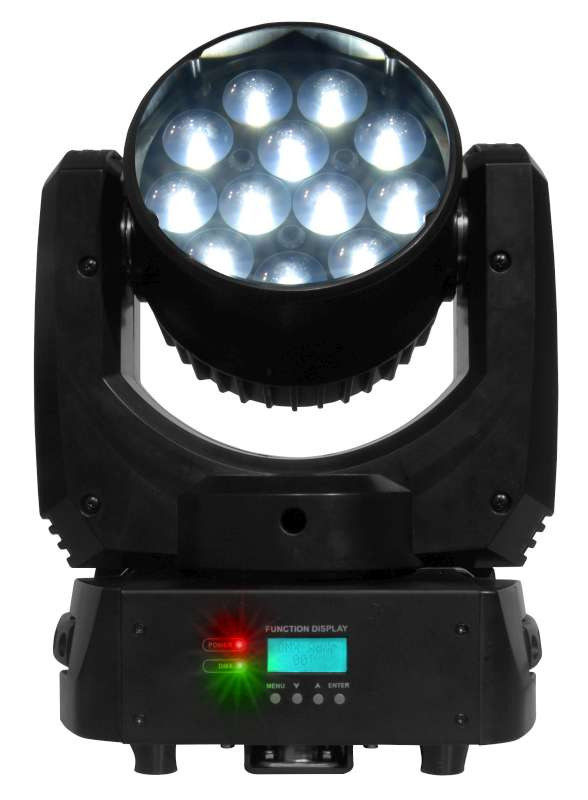

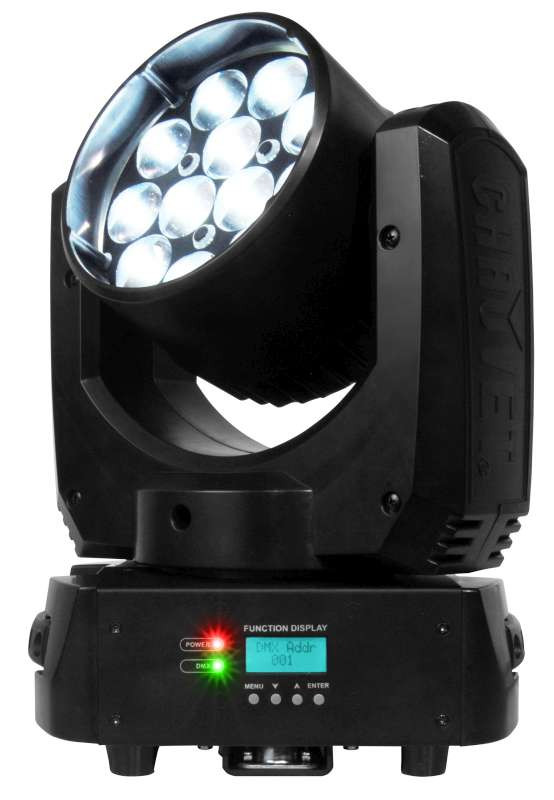

Legend' 412Z is a powerful and versatile LED wash fixture with an outstanding zoom range of 8 to 33, making it perfect for a wide array of applications, from touring to broadcast. The Legend' 412Z features twelve 10-watt quad-color RGBW emitters with four zones of independent pixel mapping control, providing ultimate versatility in programming and use. Legend' 412Z's light weight and road-worthy construction make it an excellent choice for rigs of any size and scope.

Features
• 15, 27, 31 or 34 DMX channel fixture profiles
• 4 zones of LED control
• Fast and precise pan/tilt movement
• Versatile 8 to 33 zoom range
• 12 powerful 10-W long-life quad-color RGBW LEDs
• Strobe macros with quadrant control

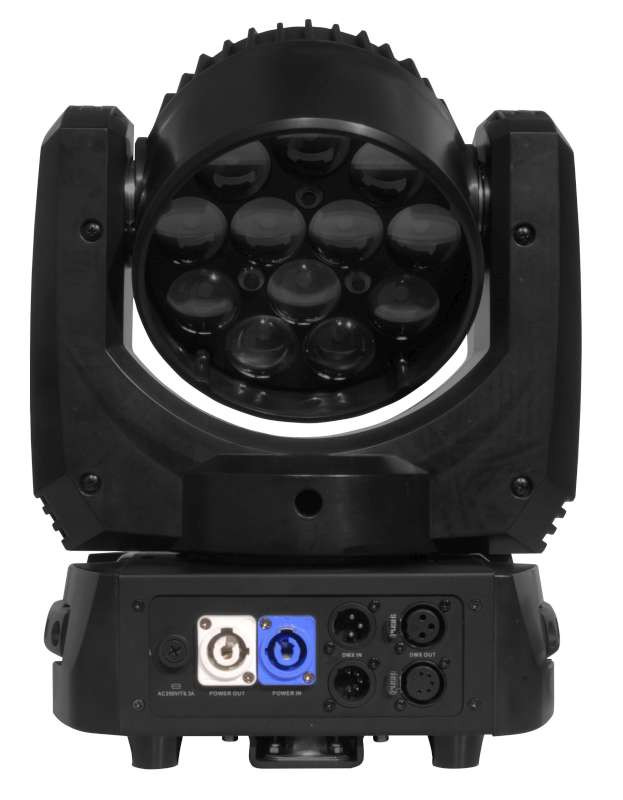

• Neutrik powerCON power input/output connections
• 3-pin and 5-pin DMX input/output connections
• Flicker-free operation for wide market application including broadcast and film

Specifications
• DMX Channels: 15, 27, 31 or 34
• Data Connectors: 3- and 5-pin XLR
• Light Source: 12 LEDs (quad-color RGBW) 10 W, (2.9 A), 50,000 hours life expectancy
• Pan and Tilt: 540/270
• Automatic Pan/Tilt Correction: Yes
• Built-in Automated Programs: Yes
• Customizable Programs: No
• Recall Custom Programs: No
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 20 Hz
• Stand Alone Color Mixing: Yes
• Color Temperature Presets: Yes
• Beam Angle: 8 to 33
• Field Angle: 11 to 53
• Zoom Angle: 8 to 33
• Illuminance (8): 3,880 lux @ 5 m
• Illuminance (33): 330 lux @ 5 m
• Color Temperature (range): 2800 to 10000 K
• IP Rating: IP20, dry location
• Cable Length: 5 ft (1.5 m)
• Power Connection: Bare-wired to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Power Linking: 9 units @ 120 V; 15 units @ 208 V; 17 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 185 W, 1.5 A @ 120 V, 60 Hz
• Power and Current: 187 W, 0.9 A @ 208 V, 60 Hz
• Power and Current: 188 W, 0.8 A @ 230 V, 50 Hz
• Weight: 16.6 lb (7.5 kg)
• Dimensions: 7.21 x 10.67 x 13.98 in (183 x 271 x 355 mm)
• Approvals: CE, MET Pending

Additional Information

UPC781462211288
SKULEGEND412Z
ManufacturerChauvet Professional
Product ConditionNew - On Clearance
ReturnableNo
