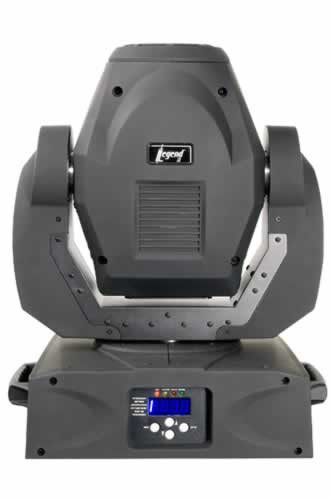

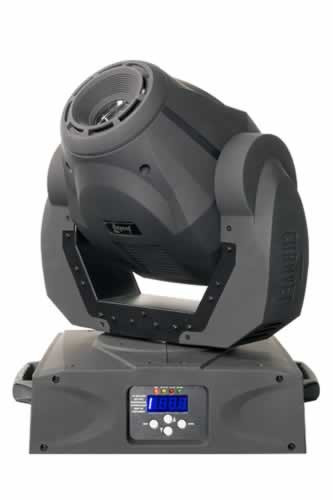

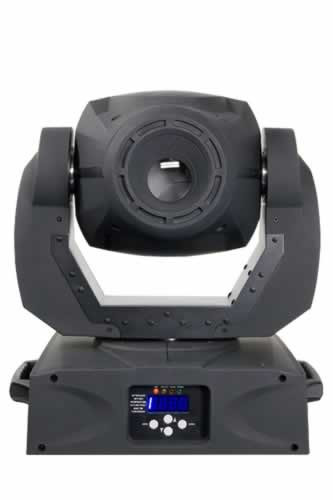

The Legend' 550 Spot moving yoke combines a powerful Philips MSI 575-watt high intensity discharge lamp with precision optics, including an iris, to deliver excellent output without sacrifice to hard focusing. It houses two independently controlled color wheels, one includes frost for a soft edge similar to a wash. Two gobo wheels, one fixed and the second indexed, are also included.
FEATURES INCLUDE: • 12 or 18 channel moving yoke
• Pan: 540
• Tilt: 270
• Color wheel 1: 9 trapezoid dicroic colors + white ( yellow red, magenta, green, blue, dark blue, UV purple, purple, pink)
• Color wheel 2: 9 trapezoid dicroic colors + white (orange, light yellow, light blue, light green, pink, light yellow, 5,600 K , 3,200 K, frost)
Step/split colors
Rainbow color spin at variable speeds
• Gobo wheel 1: Fixed gobo wheel
9 steel replaceable gobos plus open
• Gobo wheel 2: Indexed rotating gobo wheel with gobo shake
7 glass, interchangeable, slot-n-lock gobos + open
Gobo wheel spin at variable speeds
• 3-facet rotating prism
• Variable double bladed shutter
• Variable iris
• Variable focus
• Variable dimmer (0 100%)
• Move-in-black for pan/tilt, color, gobo
• Remote fixture reset, lamp on/off and vector speed adjustments
• Built-in movement and color macros with range adjustments
• Automatic pan & tilt correction

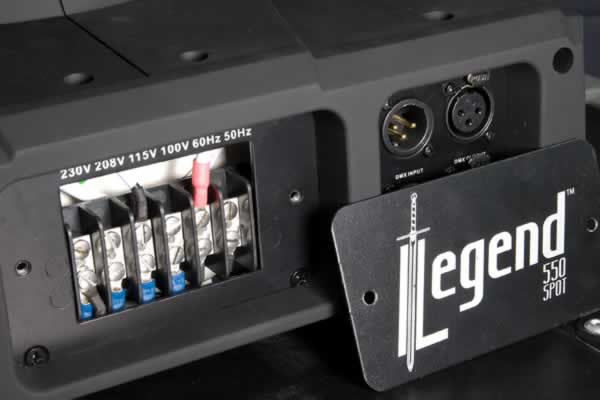

• FasTap' for easy access to voltage re-tap
VIDEO
SPECIFICATIONS: • Rotating gobos: 37.3 mm outside, 30 mm image, 2.57 mm max thickness
• Static gobos: 37.3 mm outside, 30 mm image, 1.0 mm max thickness
• Beam angle: 17
• Lux @ 2m: 17,527
• Light source: Phillips MSI575/DE, color temperature: 5,600 K, estimated life: 1,000 hr
• Power and current: 120 V, 60 Hz; 960 W, 8 A (operating), 8.9 A (inrush), PF 0.75
230 V, 50 Hz; 943 W, 4.1 A (operating), 4.5 A (inrush), PF 0.75
• AC power: 100/120/208/230 V 50/60 Hz
• Weight: 72.15 lbs (32.8 kg)
• Size: 17 x17 x 21 in (439 x 431 x 539 mm)
