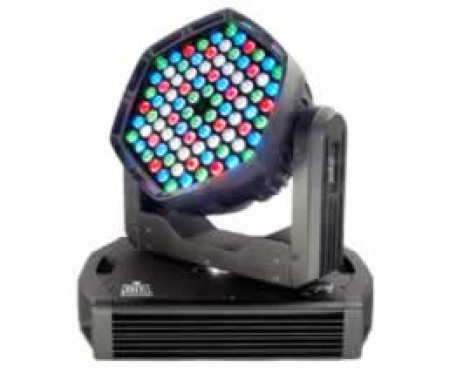

The Legend6500 is an LED moving yoke wash with full RGBW mixing capability, particularly suited for production, stage and architectural applications.
Distinguishing features include adjustable color temperatures, the capability to trigger instant color changes, silent operation and a casing design focused on stability and ruggedness. The unit comes fitted with a total of 90 high power LEDs, and produces an excellent long-throw wash.
FEATURES: • 10 or 14-channel DMX-512 LED moving yoke color wash• Pan: 530 / Tilt: 270 • RGBW color mixing with or without DMX controller• Vector speed channel for RGB color mixing• Variable electronic strobe• Variable electronic dimmer (0 - 100%)• Remote fixture reset and vector speed channel • 255 user-programmable steps without DMX controller • Color temperature presets (3,200K - 10,000K) /LI> • Move-in-black for pan/tilt• Adjustable fan speed • High-powered, 2W - 5W (600mA - 1300mA) LEDs 3-pin and 5-pin DMX connections• Neutrik PowerCon connector• User-selectable pan/tilt ranges• Automatic pan/tilt correction• Reset to factory settings option• User-selectable basic or advanced operating modes• LCD display with password protection
SPECIFICATIONS: • Beam angle: 12 • Field angle: 23• Lux: 20,200 @ 2m• Light source: (18 600mA red, 24 1300mA green, 24 1300mA blue, 24 1300mA white) LEDs 50,000hrs• Power and current: 120V, 60Hz: 517W, 4.3A operating, 4.1A inrush, PF 0.99• AC power: Autoswitching 100V - 240V 50/60Hz• Weight: 43.7lbs (19.8kg)• Size: 17in x 14.5in x 15.5in 432mm x 368mm x 394mm
