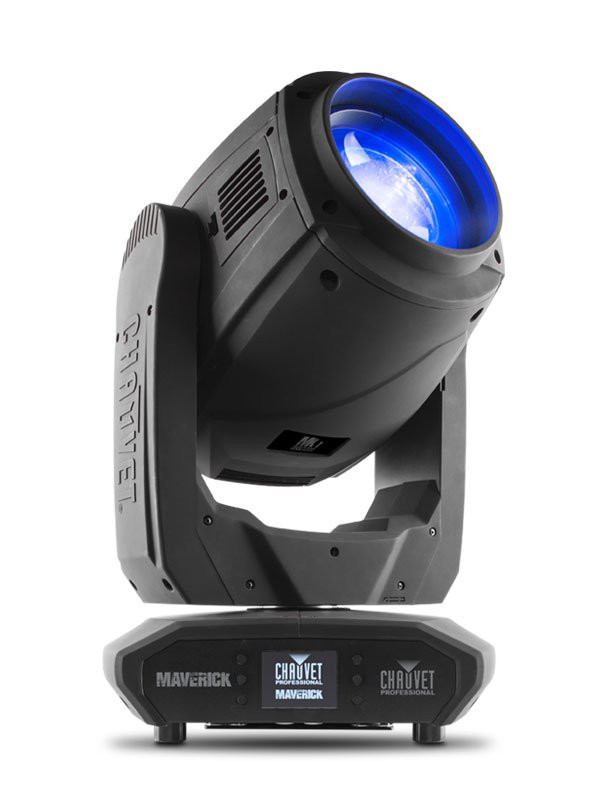

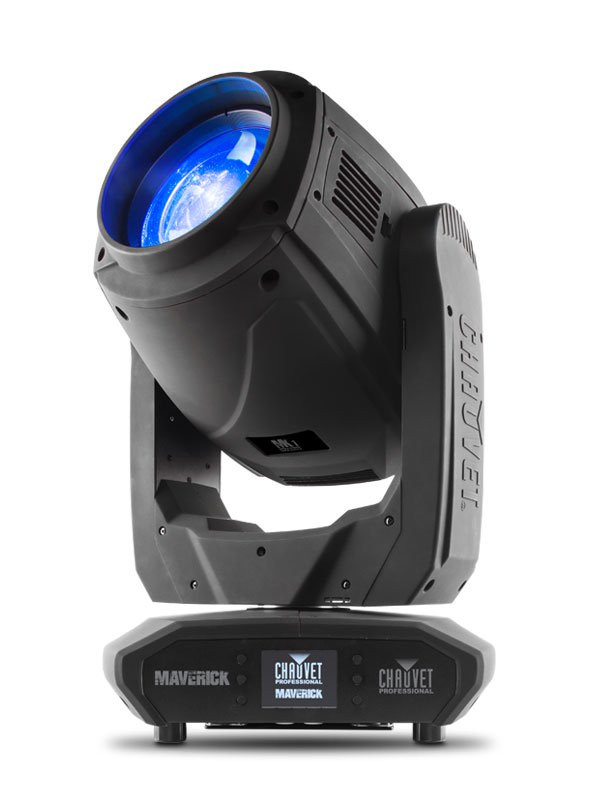

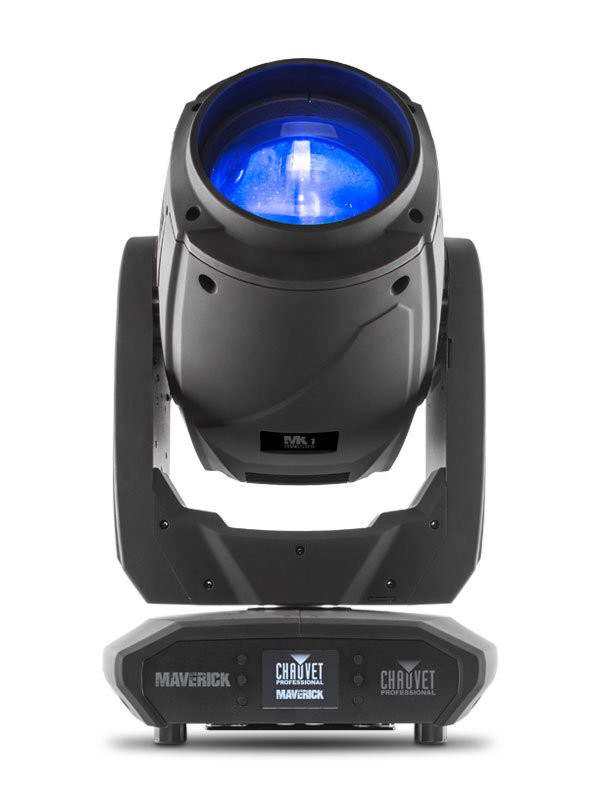

Features• Fully featured, high powered Spot/Beam combination fixture with CMY color mixing and overlapping prisms
• Fast and precise movement of Pan and Tilt functions
• Variable CMY color mixing and static colors to create a wide range of color options
• Individually controllable and overlappable 8 and 4-facet prisms
• Frost and beam flattening options for even light distribution
• Zoom angle of 3 to 18 in spot mode and 19 to 41 in wash mode for multiple coverage options
• Tight 1 beam for extremely focused areal effects
• 6 rotating and 18 static gobos for massive visual impact
• DMX , W-DMX, sACN, and Art-Net for full flexibility of control options
• True 1 compatible power input
• Battery backup display with auto rotate depending on fixture orientation.
SpecsOPTICAL
• Light Source: Osram Sirius 440W lamp, 7000 K (Color Temp), 1,500 hours life expectancy
• Color Temperature (at full): 6207 K
• Beam Angle: 1 to 6 (Spot mode)
• Field Angle: 3 to 18 (Spot mode)
• Beam Angle: 1 (Beam mode)
• Field Angle: 2 (Beam mode)
• Beam Angle: 9 to 22 (Wash mode)
• Field Angle: 19 to 41 (Wash mode)
• Zoom Angle (Spot mode): 3 to 18
• Zoom Angle (Wash mode): 19 to 41
• Illuminance (2): 212,100 lux @ 15 m
• Illuminance (3): 123,200 lux @ 15 m
• Illuminance (18): 25,800 lux @ 5 m
• Illuminance (19): 16,000 lux @ 5 m
• Illuminance (41) : 2,235 lux @ 5 m
Dynamic Effects
• Pan and Tilt: 540/270
• Pan and Tilt Ranges: 540, 360, 180 pan/270, 180, 90 tilt
• Colors: 15 + white, split colors
• Colors: CMY flags, CTO
• Gobos (1): 6 + open (6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 18 + open (18 metal), continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating): 22 mm (outside), 13 mm (image), 1.1 mm (max. thickness)
• Effect Wheel: 1 effect
• Framing Shutters: No
• Dimmer: Motorized
• Shutter/Strobe: Motorized
• Zoom: Motorized
• Focus: Motorized
• Frost: Motorized
• Prism (1): 4 Facets, motorized, rotating
• Prism (2): 8 Facets, motorized, rotating
• Move-in-Black: Yes
Construction / Physical
• Dimensions: 15.51 x 12.09 x 24.76 in (394 x 307 x 629 mm)
• Weight: 66.7 lb (30.3 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

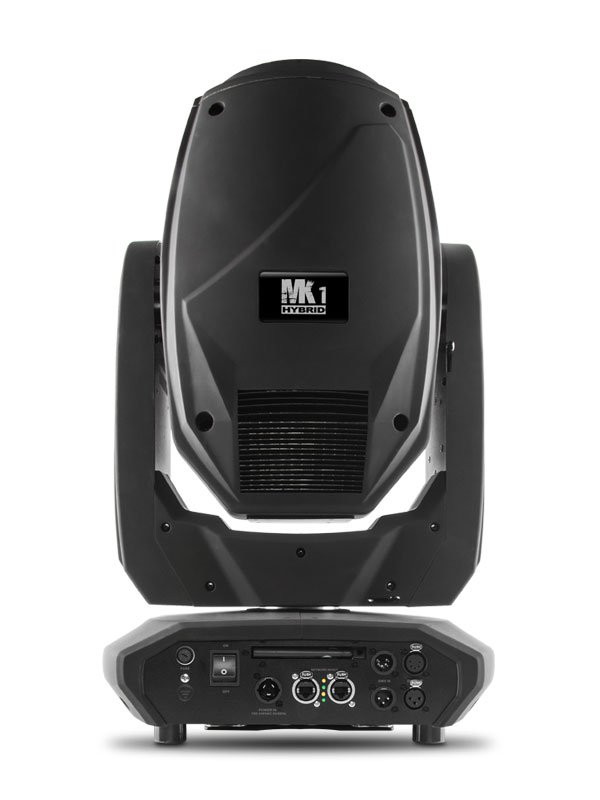

Connections
• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
Control
• Control Protocol: Art-Net, DMX, W-DMX, sACN
• DMX Channels: 27 or 30
• Art-Net Channels: 27 or 30
• Modes/Personalities: 2 personalities (27, 30)
Electrical
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 670 W, 5.45 A @ 120 V, 60 Hz
• Power and Current: 648 W, 3.12 A @ 208 V, 60 Hz
• Power and Current: 651 W, 2.81 A @ 230 V, 50 Hz
Certifications / Qualifications
• CE, MET
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)
What's Included
• Maverick MK1 Hybrid
• Seetronic Powerkon IP65 power cord
• Omega bracket with mounting hardware
Optional Accessories
• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• IP rated Seetronic Powerkon extensions
• DMX cables
• Flight case: CPSINGLECASEA1
