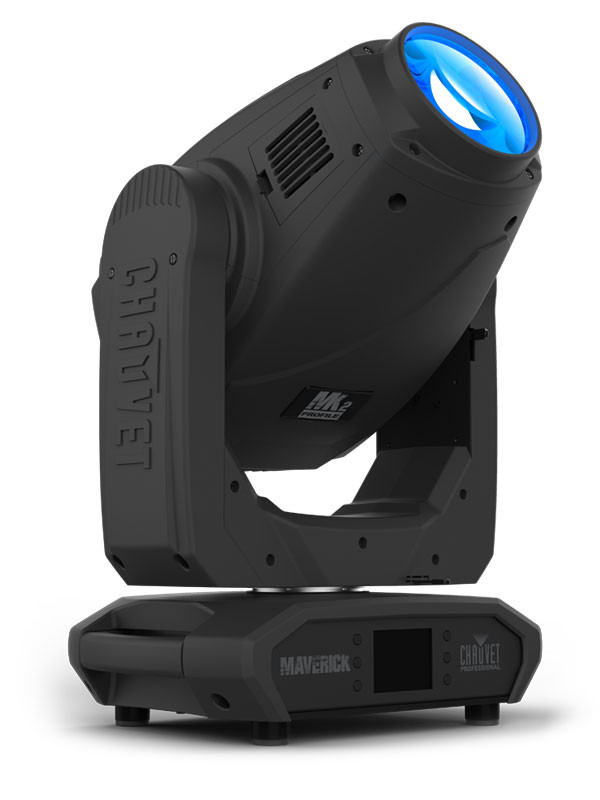

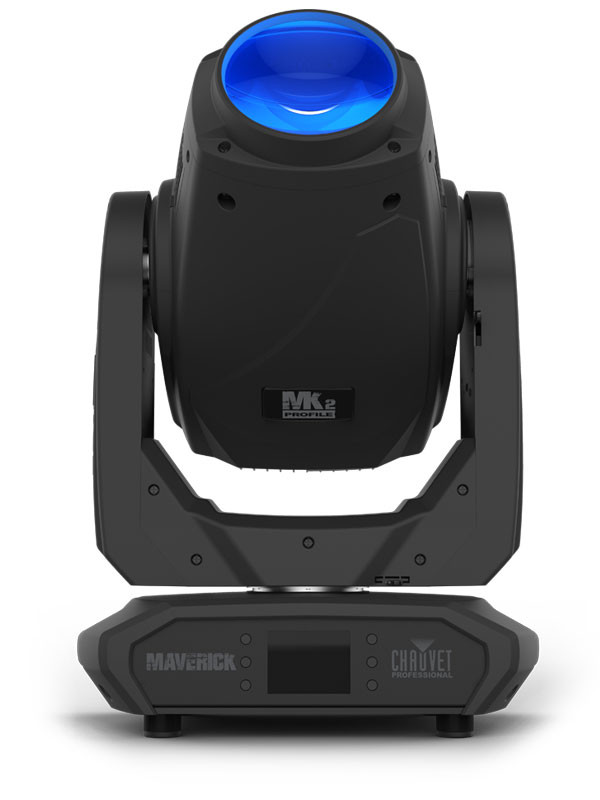

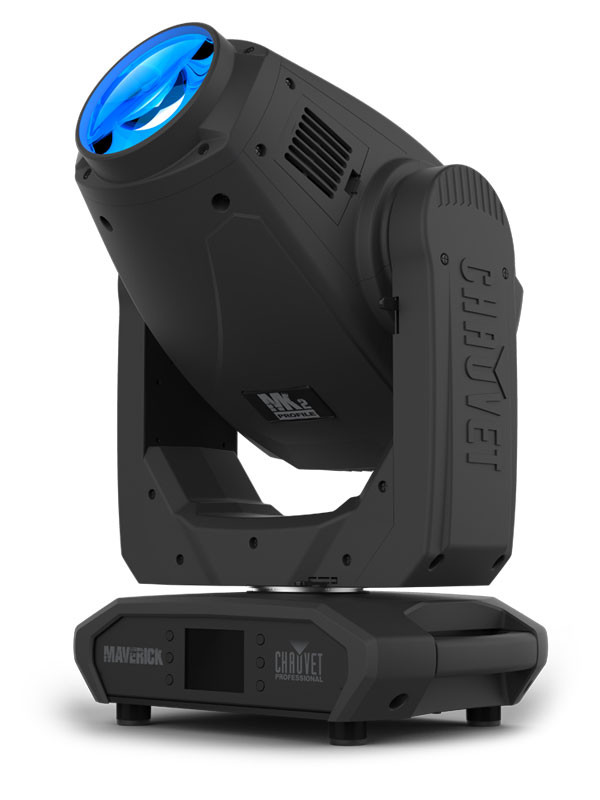

Features • Fully featured >90 CRI 440 W LED yoke profile fixture including CMY+CTO color mixing, a four blade framing shutter system with rotation, a color wheel, 3:1 zoom, and two rotating gobo wheels
• 16-bit dimming of master dimmer for smooth control of fades
• Variable CMY+CTO color mixing system to create a wide pallet of colors
• Two rotating, indexing and interchangeable slot and lock gobo wheels
• DMX , WDMX, sACN, and Art-Net for full flexibility of control options
• RDM control over DMX for fixture reporting
• 13 to 37 zoom angle for variable beam sizes
• Iris, 3-facet prism, and frost for beam control
• True 1 compatible power input
• Battery backup display with auto rotate depending on fixture orientation
Specs OPTICAL
•Light Source: 1 LEDs (CW) 469.1 W, (6.5), 6,016 K, 50,000 hours life expectancy
•Color Temperature (at full): 5883 K
•CRI: >90
•Beam Angle: 12 to 35
•Field Angle: 13 to 37
•Zoom Angle: 13 to 37
•Illuminance (13): 14,981 lux @ 5 m
•Illuminance (36): 2,098 lux @ 5 m
•Selectable PWM: 600Hz, 1,200Hz, 2,000Hz, 4,000Hz, 6,000Hz, 15,000Hz
Dynamic Effects
•Pan and Tilt: 540/270
•Pan and Tilt Ranges: 540, 360, 180 pan/270, 180, 90 tilt
•Colors: 7 + white, split colors, continuous scroll at variable speeds
•Colors: CMY flags, CTO flag
•Gobos (1): 6 + open glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
•Gobos (2): 6 + open glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
•Gobo Size: Gobo Wheel 1 (rotating): 32 mm (outside), 28 mm (image), 1.1 mm (max. thickness)
•Gobo Size: Gobo Wheel 2 (rotating): 32 mm (outside), 26 mm (image), 1.1 mm (max. thickness)
•Framing Shutters: 4 blades, each with dual axis movement
•Framing Shutter rotation: 90
•Dimmer: Electronic
•Shutter/Strobe: Electronic
•Zoom: Motorized
•Focus: Motorized
•Frost: Motorized
•Iris: Motorized
•Prism: 3 Facets, motorized, rotating
•Strobe Rate: 0 to 20 Hz
•Move-in-Black: Yes
•Dim Curves: 4
Construction / Physical
•Dimensions:15.5 x 10.9 x 26.4 in (394 x 279 x 671 mm)
•Weight: 69.8 lb (31.7 kg)
•Exterior Color: Black
•Housing Material: High-impact flame-retardant polymer

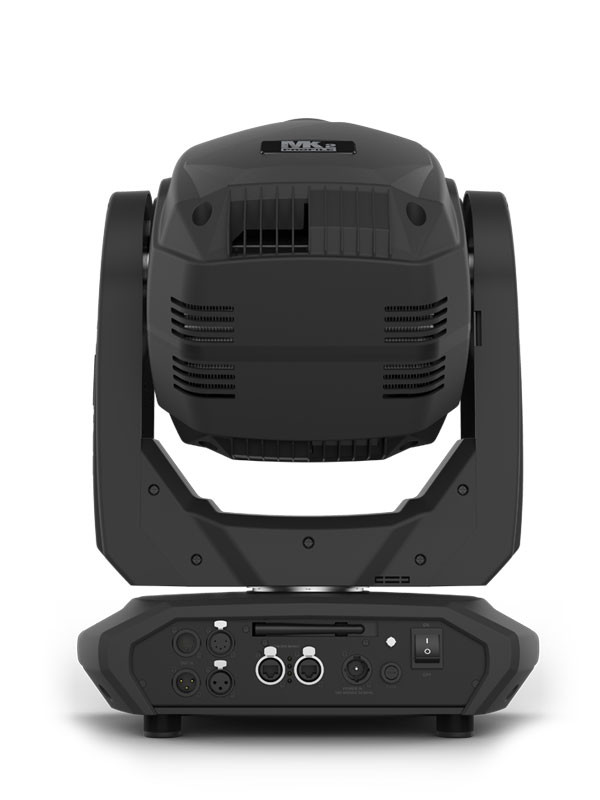

Connections
•Power Connection: Edison plug to Seetronic Powerkon IP65
•Power Input: Seetronic Powerkon IP65
•Data Connectors: 3- and 5-pin XLR, Amphenol XLR Net RJ45 Connectors in/out
•Cable Length (power): 5 ft (1.5 m)
Control
•Control Protocol: Art-Net, DMX, W-DMX, sACN
•DMX Channels: 33 or 50
•Art-Net Channels: 33 or 50
•Modes/Personalities: 2 personalities (33, 50)
Electrical
•Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
•Power and Current: 750 W, 6.32 A @ 120 V, 60 Hz
•Power and Current: 732 W, 3.5 A @ 208 V, 60 Hz
•Power and Current: 734 W, 3.1 A @ 230 V, 50 Hz
•Breaker Size: F12 A, 250 V
Certifications / Qualifications
•CE, MET
•IP Rating: IP20, dry location
•Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)
What's Included
•Maverick MK2 Profile
•Seetronic Powerkon IP65 power cord
•Omega bracket with mounting hardware
Optional Accessories
•Professional Clamps: CTC-50HC, CTC-50HCN
•Safety Cable: SC-07
•IP Rated Seetronic Powerkon Extensions
•DMX cables
