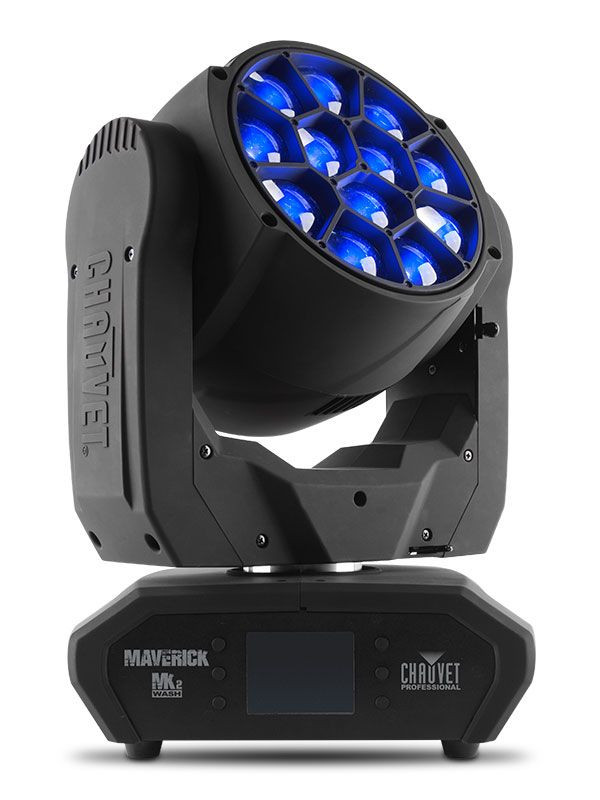

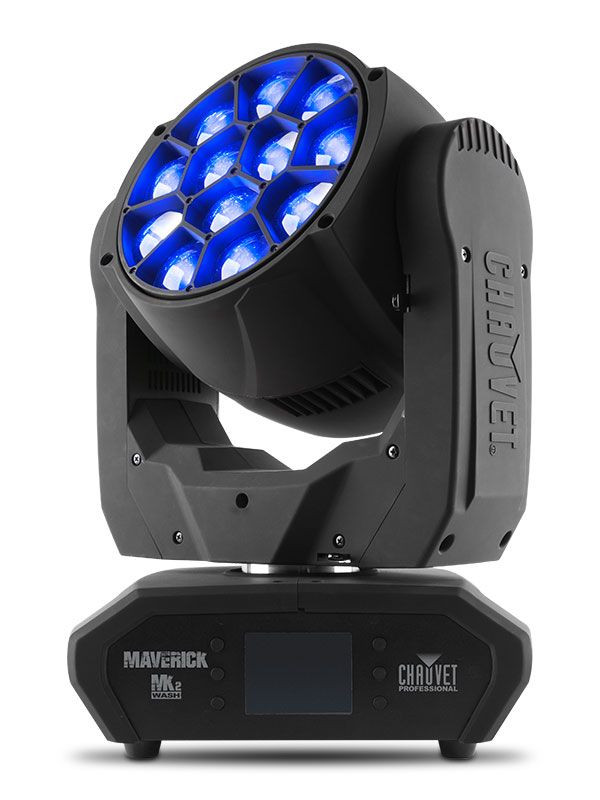

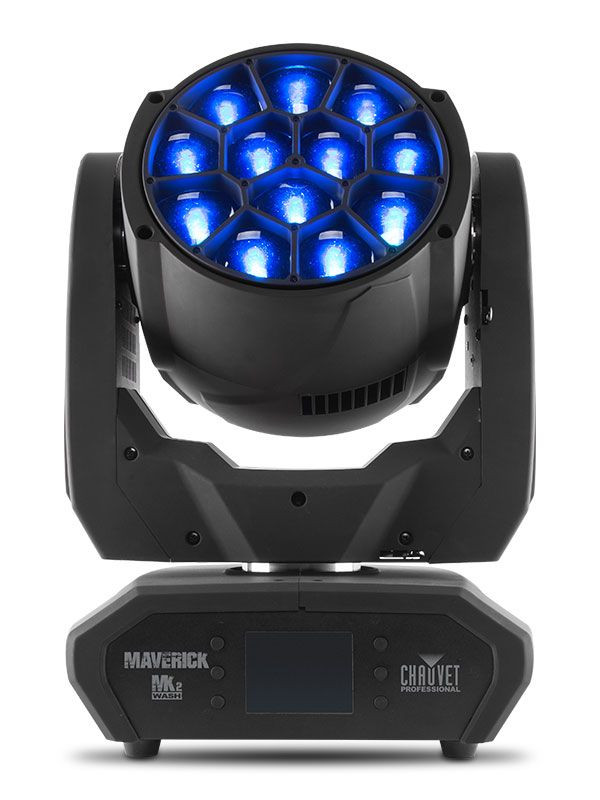

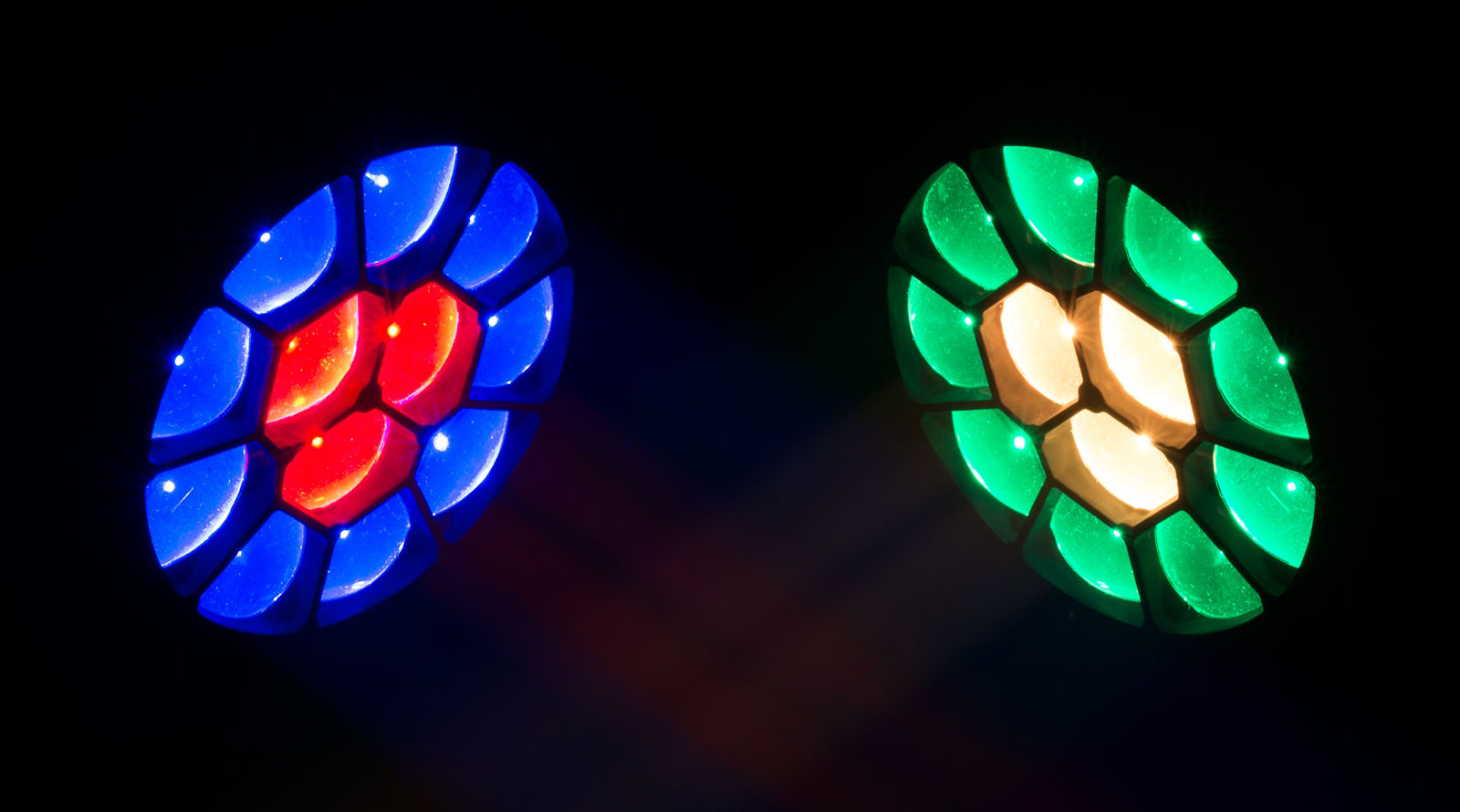

Chauvet Professional Maverick MK2 Wash Features • Fully featured RGBW LED yoke wash fixture with pixel mapping and zoom
• 16-bit Dimming of master dimmer as well as individual colors for smooth control of fades
• Built in colors for quick design possibilities
• Built in virtual gobo wheel with background colors for impressive atmospheric effects
• Fast movement of pan, tilt, and zoom
• Quiet operation for a wide range of installation situations
• DMX, WDMX, S ACN, Art-Net, and Kling-Net control for full flexibility
• Converts TCP/IP Protocol to DMX for shorter data cable runs
• 7 - 49 Zoom angle for variable beam sizes
• True 1 compatible power input
Chauvet Pro Maverick MK2 Wash Specs OPTICAL

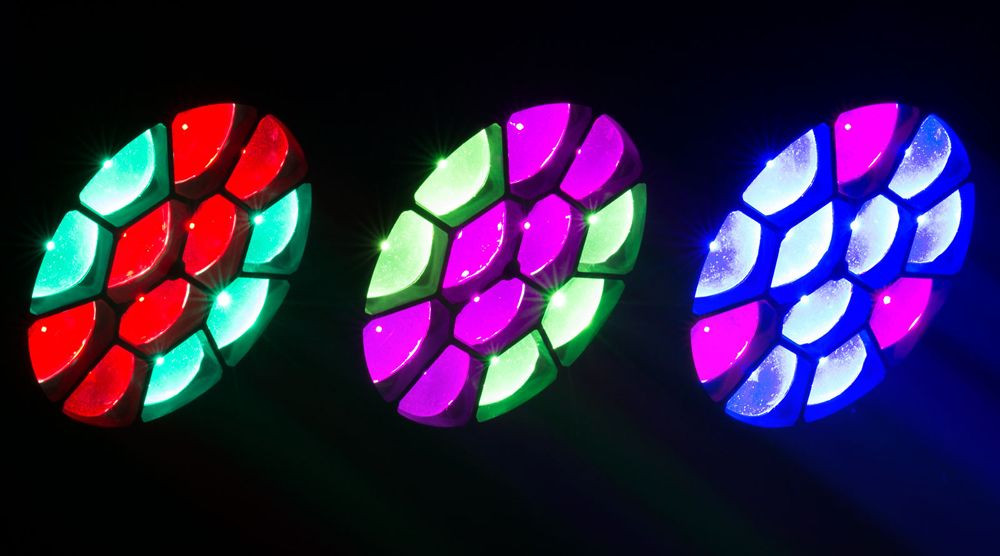

• Light Source: 12 LEDs (quad-color RGBW) 40 W, (2.6 A), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 10000 K
• Beam Angle: 5 to 36
• Field Angle: 7 to 49
• Zoom Angle: 7 to 49
• Illuminance (7): 19,000 lux @ 5 m
• Illuminance (49): 800 lux @ 5 m
• PWM Frequency: 900 Hz
DYNAMIC EFFECTS
• Pan and Tilt: 540/270
• Pan and Tilt Ranges: 180, 360, 540 pan/90, 180, 270 tilt
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: No
• Color Temperature Presets: Yes
• Move-in-Black: Yes
• Dim Curves: 4
CONSTRUCTION / PHYSICAL
• Dimensions: 12.72 x 9.17 x 18.54 in (323 x 233 x 471 mm)
• Weight: 32.8 lb (14.8 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

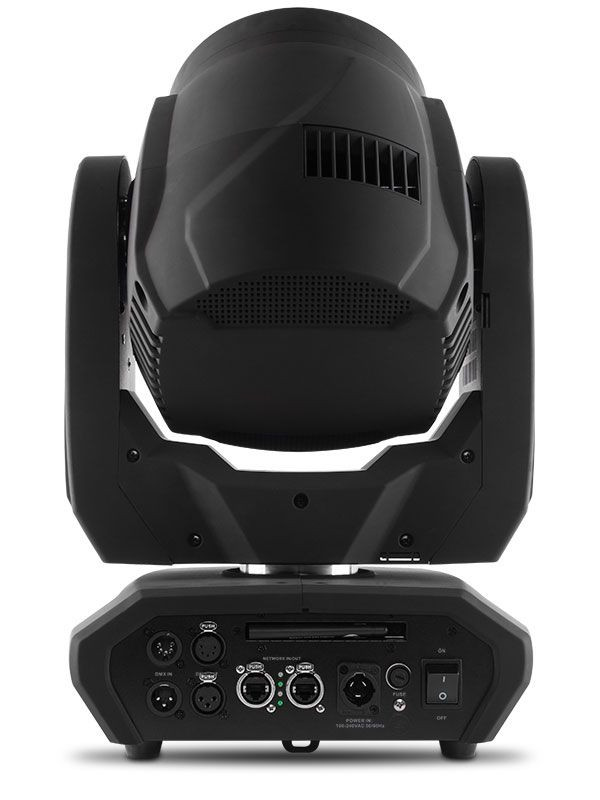

CONNECTIONS
• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
CONTROL
• Control Protocol: Art-Net, sACN, Kling-Net, DMX, W-DMX
• DMX Channels Single Mode: 20, 69, 115
• DMX Channels Dual Mode Function: 8, 20, 26
• DMX Channels Dual Mode Pixel: 36, 48, 60
• Art-Net Channels Single Mode: 20, 69, 115
• Art-Net Channels Dual Mode Function: 8, 20, 26
• Art-Net Channels Dual Mode Pixel: 36, 48, 60
ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 651 W, 5.51 A @ 120 V, 60 Hz
• Power and Current: 629 W, 3.03 A @ 208 V, 60 Hz
• Power and Current: 609 W, 2.53 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
• CE, METIP Rating: IP20, dry location
WHAT'S INCLUDED
• MK2 Wash
• Seetronic Powerkon IP65 power cord
• Omega bracket with mounting hardware
