Features• Fully featured 820W LED yoke spot fixture including CMY+CTO Color Mixing, a color wheel, a CRI filter, animation wheel, a 9:1 zoom, two independently layerable prisms, two frosts, a static and 2 rotating gobo wheels
• 16-bit dimming of master dimmer for smooth control of fades
• Variable CMY + CTO color mixing system to create a wide palette of colors
• Independently layerable 5 facet linear and 5 facet round prisms for increased prism options
• Two rotating and one static gobo wheel for maximum dynamic texture possibilities
• Independent light and medium frosts for beam control
• Animation wheel for enhanced visual effects
• Iris for total beam control
• RDM control over DMX for fixture reporting
• 6.1 to 52.1 zoom angle for variable beam sizes
• 3 menu presets and preset cross load for decreased shop setup time
• True 1 compatible power input
• Battery backup display with auto-rotate depending on fixture orientation
SpecificationsOptical
• Light Source: 1 LEDs (CW) 820 W, (24 A), 7,472 K, 50,000 hours life expectancy
• Color Temperature (at full): 7,207 K
• CRI: 73.8
• CRI W / Filter: 93.2
• Beam Angle: 6.1 to 52.1
• Field Angle: 7.6 to 60.5
• Zoom Angle: 6.1 to 52.1
• Lumens Source: 51,000
• Lumens Output: 22,000
• Illuminance (6.1): 56,945 lux @ 5 m
• Illuminance (52.1): 1,920 lux @ 5 m
• Illuminance W / CRI Filter (6.1): 39,011 lux @ 5 m
• Illuminance W / CRI Filter (52.1): 1,242 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 4000 Hz, 6000 Hz, 15000 Hz
Dynamic Effects
• Pan and Tilt: 540/270
• Pan and Tilt Ranges: 540, 360, 180 pan/270, 180, 90 tilt
• Colors: 6 + white, split colors, continuous scroll at variable speeds
• Colors: CMY flags, CTO flag, CRI filter, color correction
• Gobos (1): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (3): 8 + open (8 metal), 2 rotating, 1 static gobo wheel.
• Gobo Size: Gobo Wheel 1 (rotating): 30 mm (outside), 23 mm (image), 1.1 mm (max. thickness)
• Gobo Size: Gobo Wheel 2 (rotating): 30 mm (outside), 21 mm (image), 1.1 mm (max. thickness)
• Gobo Size: Gobo Wheel 3 (static): 160 mm (outside), 22 mm (image), 0.8 mm (max. thickness)
• Effect Wheel: 1 effects
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Focus: Motorized
• Frost 1: Light Frost - Motorized
• Frost 2: Medium Frost - Motorized
• Iris: Motorized
• Prism: 5 Linear facets, motorized, rotating
• Prism: 5 Circular facets, motorized, rotating
• Strobe Rate: 0 to 25 Hz
• Move-in-Black: Yes
• Dim Modes: 5
Construction / Physical
• Dimensions: 16.10 x 11.92 x 29.76 in (409 x 303 x 756 mm)
• Weight: 72.9 lb (33 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer, Steel

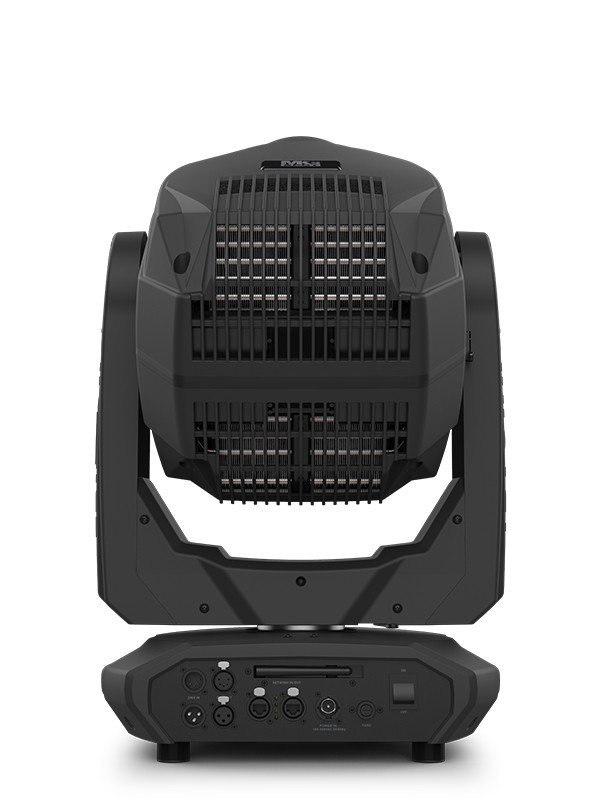

Connections
• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
• Cable Length (power): 5 ft (1.5 m)
Control
• Control Protocol: Art-Net, DMX, W-DMX, RDM, sACN
• DMX Channels: 31 or 39
• Art-Net Channels: 31 or 39
• Modes/Personalities: 2 personalities (31, 39)
Electrical
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 1180 W, 9.90 A @ 120 V, 60 Hz
• Power and Current: 1160 W, 5.60 A @ 208 V, 60 Hz
• Power and Current: 1150 W, 5.04 A @ 230 V, 50 Hz
Certifications / Qualifications
• CE, MET, FCC
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)
What's Included

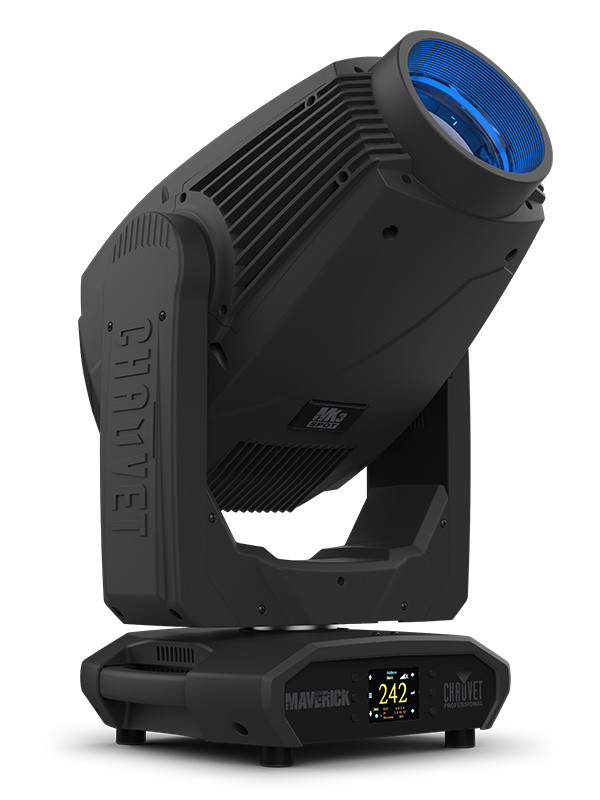

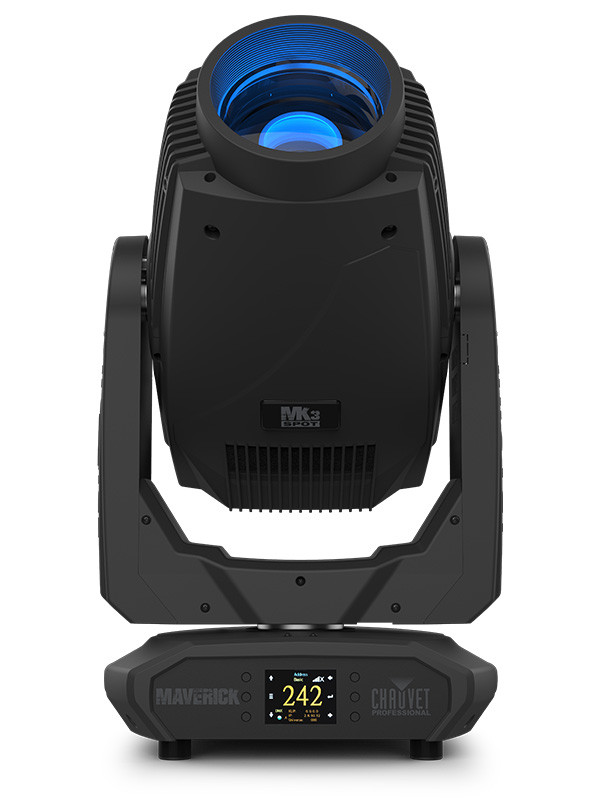

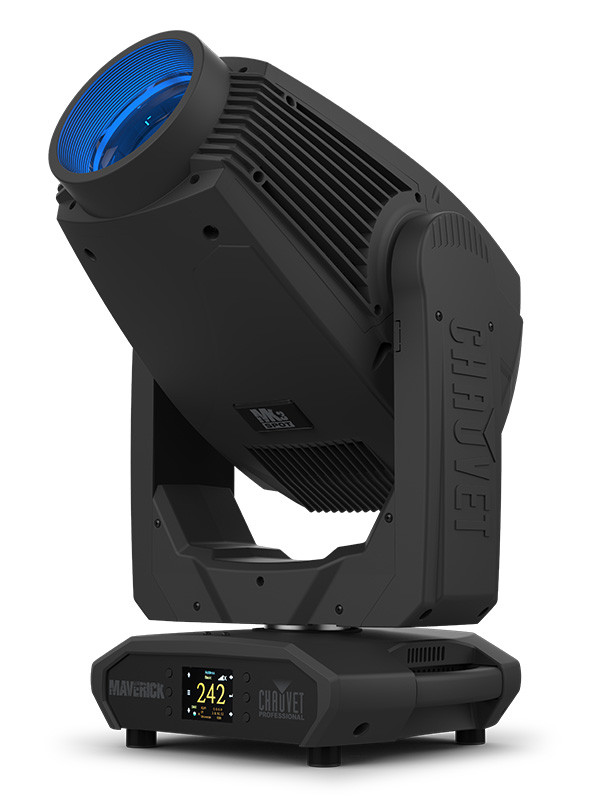

• Maverick MK3 Spot
• Seetronic Powerkon IP65 power cord
• 2 Omega brackets with mounting hardware
Optional Accessories
• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• IP Rated Seetronic Powerkon Extensions
• DMX cables
• Ethercon extension cables
• Flight Case: CP2CASEMK
• MRUPLOAD software uploader
