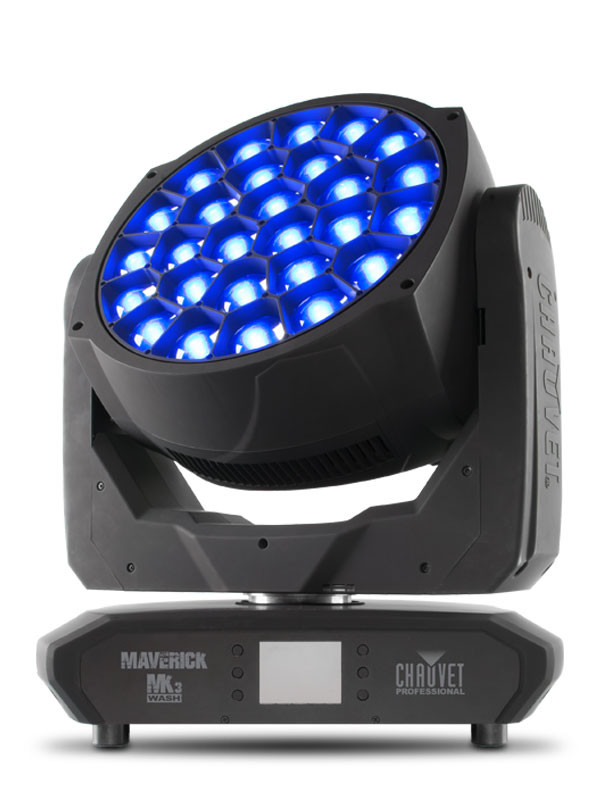

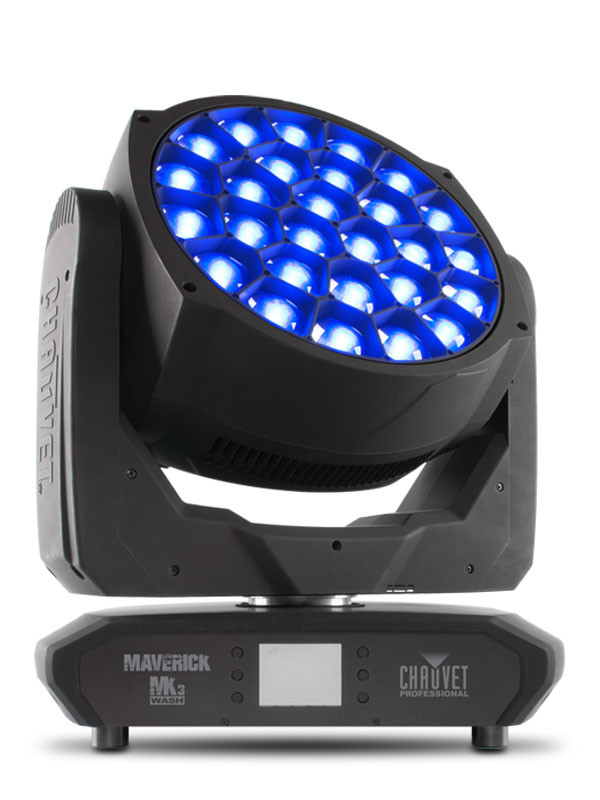

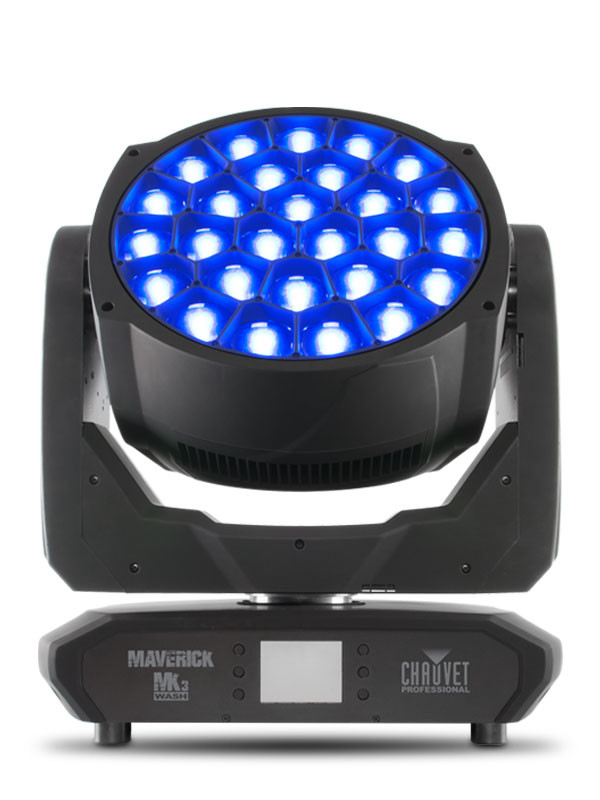

Features • Fully featured RGBW LED yoke wash fixture with pixel mapping and zoom
• 16-bit dimming of master dimmer as well as individual colors for smooth control of fades
• Built in colors for quick design possibilities
• Built in virtual gobo wheel with background colors for impressive atmospheric effects
• Precise movement of pan, tilt, and zoom
• Quiet operation for a wide range of installation situations
• DMX, WDMX, S ACN, Art-Net, and Kling-Net control for full flexibility
• RDM Enabled for remote addressing and trouble shooting
• 7 - 45 Zoom angle for variable beam sizes
• True 1 compatible power input
• Battery backup touchscreen display with auto rotate depending on fixture orientation
Specs OPTICAL

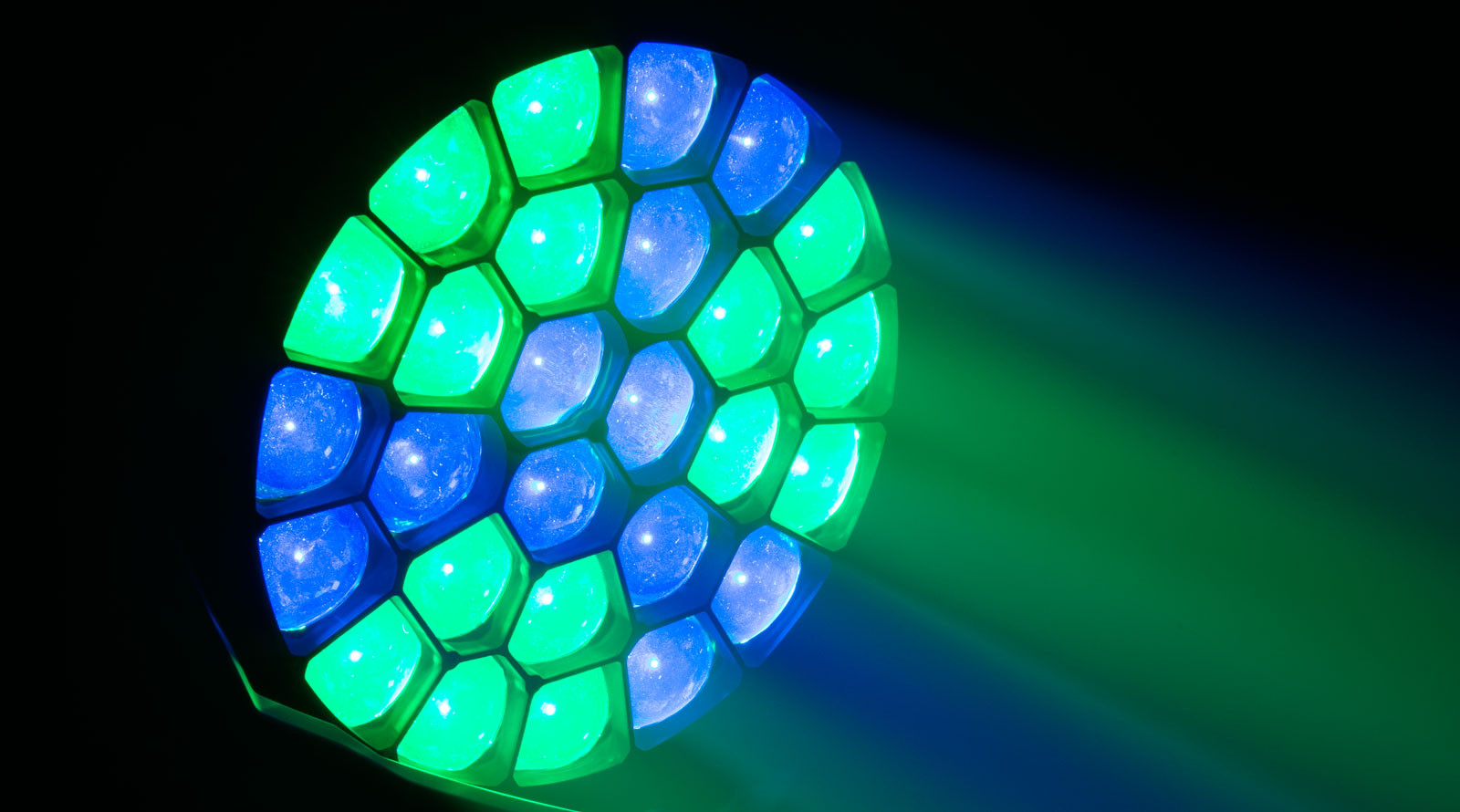

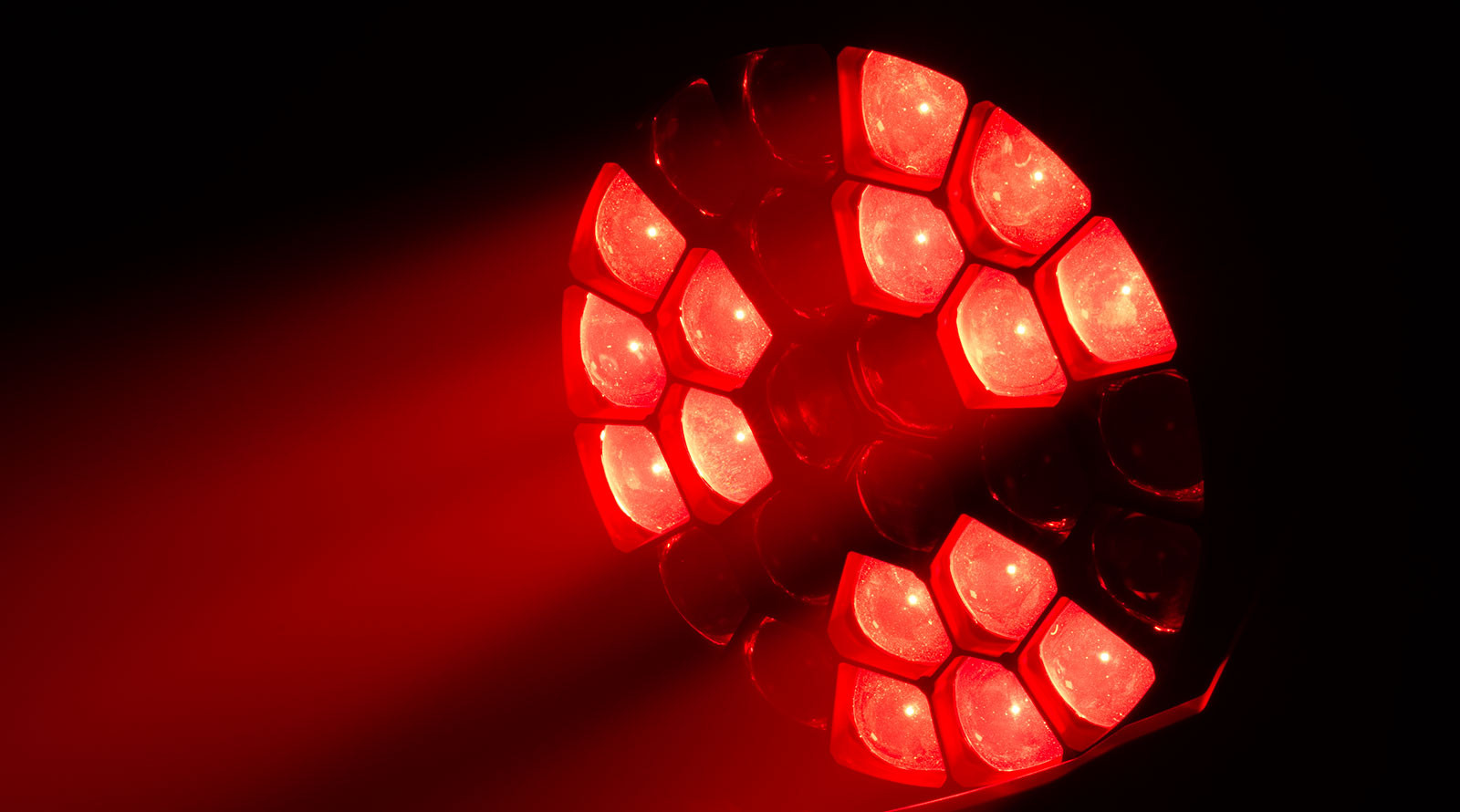

• Light Source: 27 LEDs (quad-color RGBW) 40 W, (2.6A), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 10000 K
• Beam Angle: 5 to 29
• Field Angle: 7 to 45
• Zoom Angle: 7 to 45
• Illuminance (7): 89,200 lux @ 5 m
• Illuminance (45): 2814 lux @ 5 m
• Selectable PWM: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 15000Hz
DYNAMIC EFFECTS
• Pan and Tilt: 540/270
• Pan and Tilt Ranges: 540, 360, 180 pan/270, 180, 90 tilt
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Move-in-Black: Yes
• Dim Curves: 4
CONSTRUCTION / PHYSICAL
• Dimensions: 18.7 x 11.49 x 22.93in 459 x 292 x583 mm)
• Weight: 68.2 lb (31 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

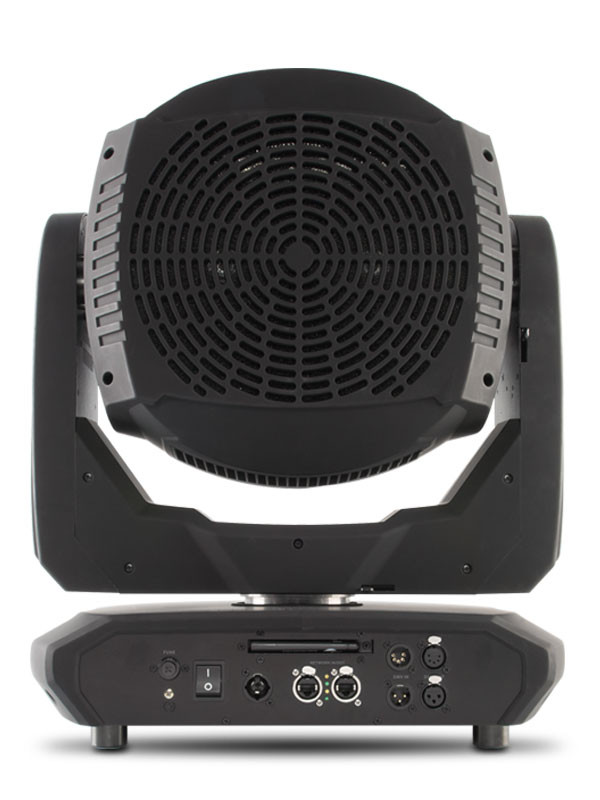

CONNECTIONS
• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
CONTROL
• Control Protocol: Art-Net, Kling-Net, sACN, DMX, W-DMX
• DMX Channels Single Mode: 20, 129, 243 or 297
• DMX Channels Dual Mode Function: 9,21,27
• DMX Channels Dual Mode Pixel: 81,108,216
• Art-Net Channels Single Mode: 21, 129, 243 or 297
• Art-Net Channels Dual Mode Function: 9,21,27
• Art-Net Channels Dual Mode Pixel: 81,108,216
ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 1,120 W, 9.51 A @ 120 V, 60 Hz
• Power and Current: 1,090 W, 5.35 A @ 208 V, 60 Hz
• Power and Current: 1,100 W, 4.84 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
• CE, MET
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)
WHAT'S INCLUDED
• Seetronic Powerkon IP65 power cord
• Omega bracket with mounting hardware
Optional Accessories
• Professional Clamp: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• DMX Cables
