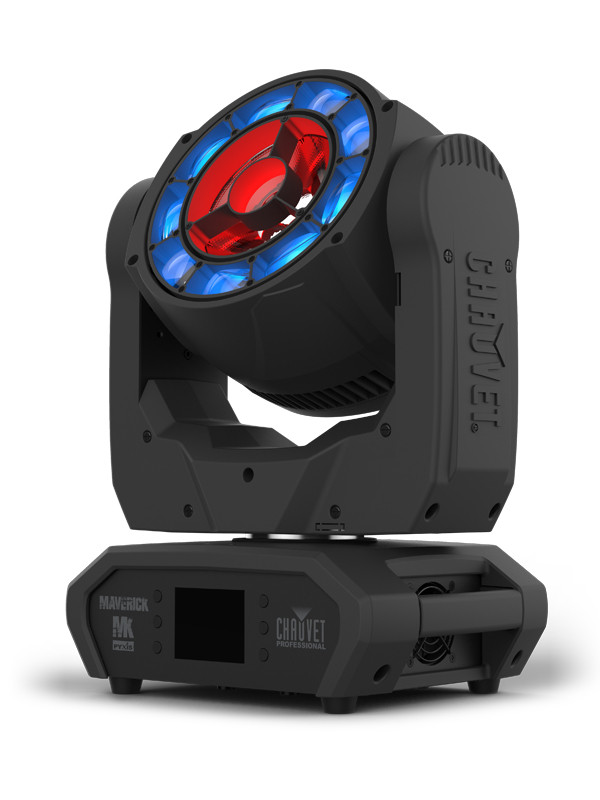

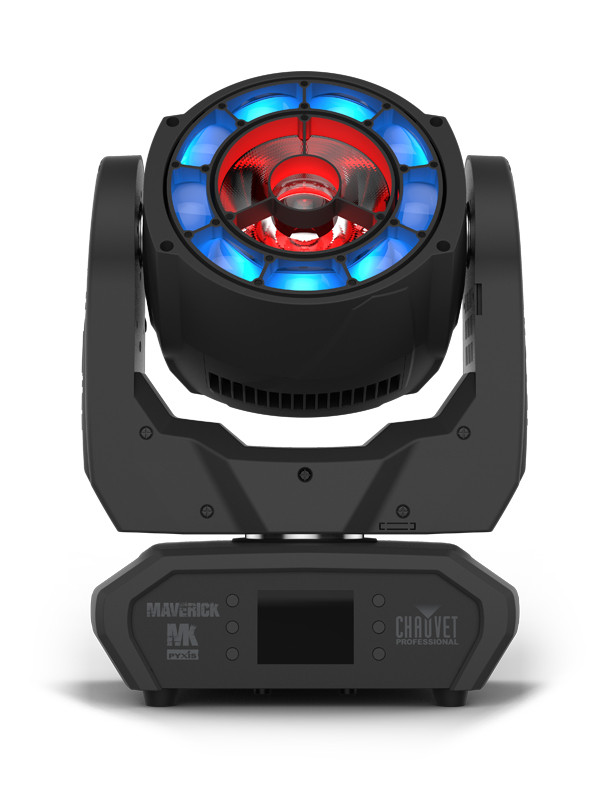

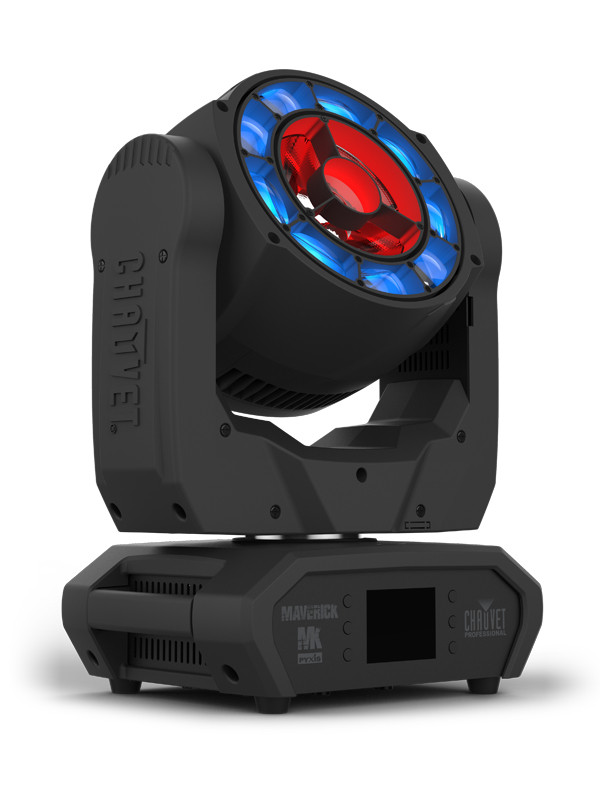

Features • A full featured RGBW LED wash and beam fixture with 360 continuous pan and tilt movement
• A (9) 15 W RGBW LED outer ring of LEDs with a 7 45 zoom angle and pixel control for wash and narrow effects
• A single 60 W RGBW LED center pixel with a fixed 3 beam angle for dedicated beam color effects
• Virtual Color wheel with instantaneous access to 21 colors
• Built in color effects for quick design possibilities
• Built in virtual gobo wheel with background colors for impressive atmospheric effects
• Quiet operation for a wide range of installation situations
• DMX, W-DMX, S ACN, Art-Net, and Kling-Net control for full flexibility
• RDM enabled for remote addressing and trouble shooting
• Converts TCP/IP to DMX for shorter data cable runs
• 7 45 zoom angle for variable beam sizes
• True 1 compatible power input
• Battery backup touchscreen display with auto rotate depending on fixture orientation
• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
Specs OPTICAL
• Light Source: 9 LEDs outer ring (quad-color RGBW) 15 W, (1.29 A), 50,000 hours life expectancy
• Light Source: 1 LED center pixel (quad-color RGBW) 60 W, (4.5 A), 50,000 hours life expectancy
• Color Temperature (range): 2,800 to 10,000 K
• Beam Angle (center pixel and outer ring): 3
• Beam Angle (center pixel): 3
• Beam Angle (outer ring): 5 to 28
• Field Angle (center pixel and outer ring): 6
• Field Angle (center pixel): 5
• Field Angle (outer ring): 7 to 45
• Zoom Angle: 7 to 45
• Lumens Source: (center pixel) 1,700, (outer ring) 4,300
• Lumens Output: (center pixel) 1,100, (outer ring) 2,400
• Illuminance (center pixel / outer ring): 27,560 lux @ 5 m
• Illuminance (center pixel): 20,300 lux @ 5 m
• Illuminance (outer ring): 7,330 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
DYNAMIC EFFECTS
• Pan and Tilt: 540/270
• Pan and Tilt Ranges: Infinite, 540, 360, 180 pan/ Infinite, 270, 180, 90 tilt
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 20 Hz
• Color Temperature Presets: Yes
• Move-in-Black: Yes
• Dim Modes: 2
• Dim Curves: 4
CONSTRUCTION / PHYSICAL
• Dimensions: 12.20 x 8.85 x 18 in (310 x 225 x 459 mm)
• Weight: 31.96 lb (14.5 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

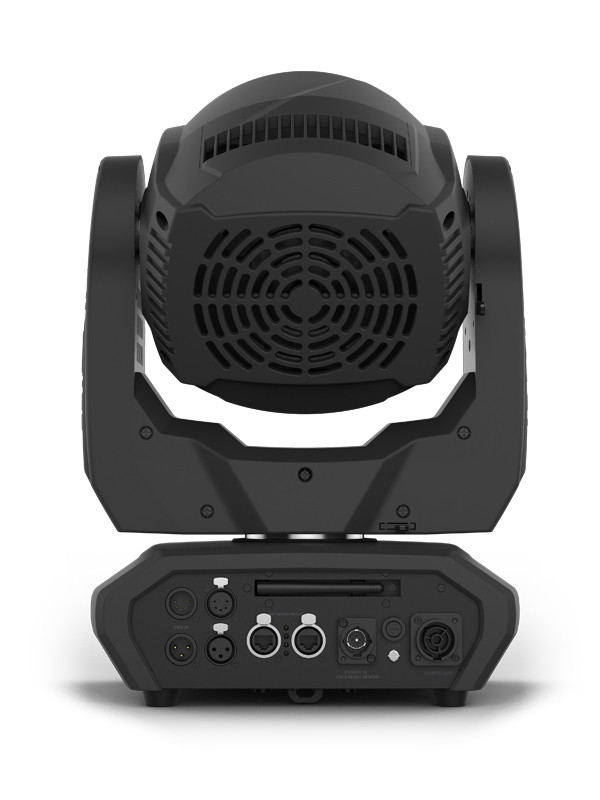

CONNECTIONS
• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin XLR, , Amphenol XLR Net RJ45 Connectors in/out
• Cable Length (power): 5 ft (1.5 m)
CONTROL
• Control Protocol: Art-Net, sACN, Kling-Net, DMX, W-DMX
• DMX Channels Single Mode: 26,66,113,131
• DMX Channels Dual Mode Function: 13,26,33
• DMX Channels Dual Mode Pixel: 30,40,80
• Art-Net Channels Single Mode: 26,66,113,131
• Art-Net Channels Dual Mode Function: 13,26,33
• Art-Net Channels Dual Mode Pixel: 30,40,80
ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 6 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V
• Power and Current: 262 W, 2.2 A @ 120 V, 60 Hz
• Power and Current: 260 W, 1.2 A @ 208 V, 60 Hz
• Power and Current: 223 W, 1.1 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
• CE, MET
• IP Rating: IP20, dry location
WHAT'S INCLUDED
• Maverick PYXIS
• Seetronic Powerkon IP65 power cord
• Omega bracket with mounting hardware
Optional Accessories
• Professional Clamp: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• DMX Cables
• IP Rated Seetronic Powerkon Extensions
