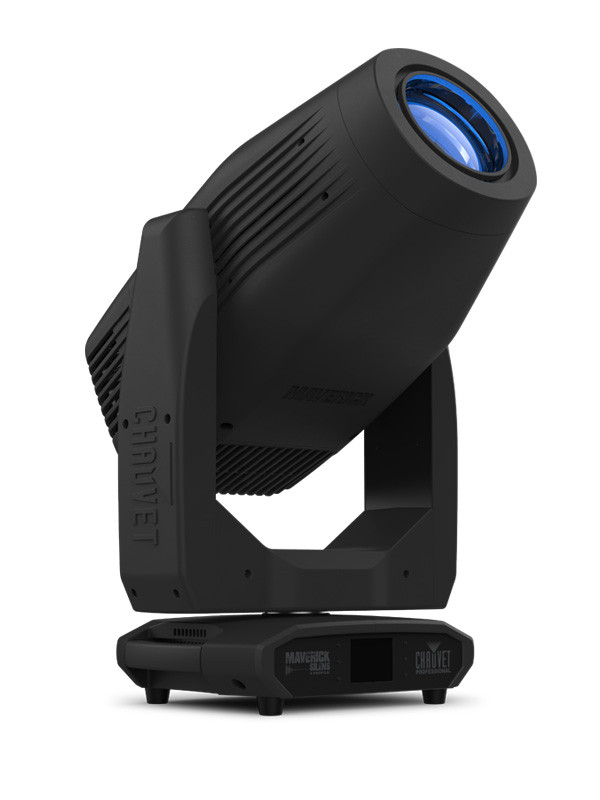

Maverick Silens is also capable of superb animation effects via 1 rotating, 1 static gobo wheel, 1 prism, fully variable frost and an emulated red shift for a tungsten punch. Control your way with DMX, sACN, Art-Net, or CRMX.
Features• Completely silent, fully featured 560 W 95+ CRI LED yoke profile fixture including CMY+CTO color mixing, a four-blade framing shutter system with rotation, a color wheel, animation wheel, a 10:1 zoom, prism, variable frost, as well as static and rotating gobo wheels.
• 100% convection cooled for zero fan noise along with silent motion and effects
• 16-bit dimming with selectable red shift of master dimmer for smooth control of fades
• Variable CMY + CTO color mixing system to create a wide pallet of colors
• One rotating and one static gobo wheel with unique, theatrical based designs
• Interchangeable gobos between rotating and static wheels
• Variable frost system
• + or 60 degrees rotation framing shutter system to allow for better framing positioning.
• Animation wheel for enhanced visual effects
• Iris for total beam control
• RDM control over DMX for fixture reporting
• 5 to 58 zoom range for variable beam sizes
• True 1 compatible power input and throughput
• Battery backup display with auto-rotate depending on fixture orientation
SpecificationsOptical
• Light Source: 1 LEDs (CW) 500 W, (15.5 A), 6000 K, 30,000 hours life expectancy
• Light Source: 1 LED (RGB) 60 W, (3.2 A), 50,000 hours life expectancy
• Color Temperature (at full): 6000 K
• CRI: 95.6
• Beam Angle: 5 to 50
• Field Angle: 6 to 54
• Zoom Range: 5 to 58
• Cutoff Angle: : 7 to 58
• Lumens Source: 20,672
• Lumens Output: 10,549
• Illuminance (6.4): 29,598 lux @ 5 m
• Illuminance (53.7): 640 lux @ 5 m
• Selectable PWM: 20,000, 40,000
Dynamic Effects
• Pan and Tilt: 540/270
• Pan and Tilt Ranges: 540, 360, 180 pan/270, 180, 90 tilt
• Colors: 6 + white, split colors, continuous scroll at variable speeds
• Colors: CMY flags, CTO flag, color correction
• Gobos (1): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 8 + open (8 glass), continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating): 30 mm (outside), 23 mm (image)
• Effect Wheel: 1 effect
• Framing Shutters: Yes
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Focus: Motorized
• Frost: Variable Frost - Motorized
• Iris: Motorized 15 Leaf
• Prism: 5 Facets, round, motorized, rotating
• Strobe Rate: 0 to 20 Hz
• Move-in-Black: Yes
• Dim Curves: 4
Construction / Physical
• Dimensions: 17.0 x 10.8 x 31.1 in (433 x 276 x 792 mm)
• Weight: 75.5 lb (34.4 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant Polymer
Connections
• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
• Cable Length (power): 5 ft (1.5 m)
Control
• Control Protocol: Art-Net, DMX, CRMX, RDM, sACN
• DMX Channels: 32 or 41
• Art-Net Channels: 32 or 41
• Modes/Personalities: 2 personalities (32, 41)
Electrical
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 2 units @ 100 V; 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V; 4 units @ 240 V
• Power and Current: 650 W, 6.53 A @ 100 V, 60 Hz
• Power and Current: 640 W, 5.45 A @ 120 V, 60 Hz
• Power and Current: 639 W, 3.10 A @ 208 V, 60 Hz
• Power and Current: 648 W, 2.82 A @ 230 V, 50 Hz
• Power and Current: 654 W, 2.75 A @ 240 V, 50 Hz
Certifications / Qualifications
• CE, MET, FCC
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)
What's Included
• Maverick Silens 2 Profile
• Seetronic Powerkon IP65 power cord
• 2 Omega brackets with mounting hardware
• Gel Frame Holder and Gel Frame
Optional Accessories
• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• IP Rated Seetronic Powerkon Extensions
• DMX cables
• Ethernet cables
