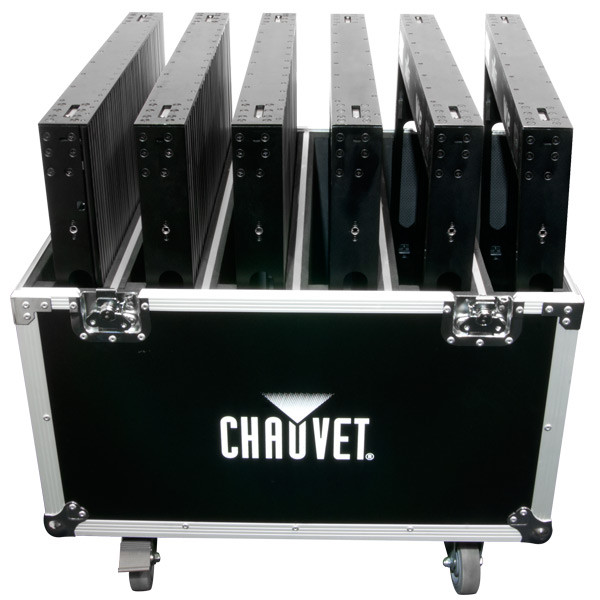

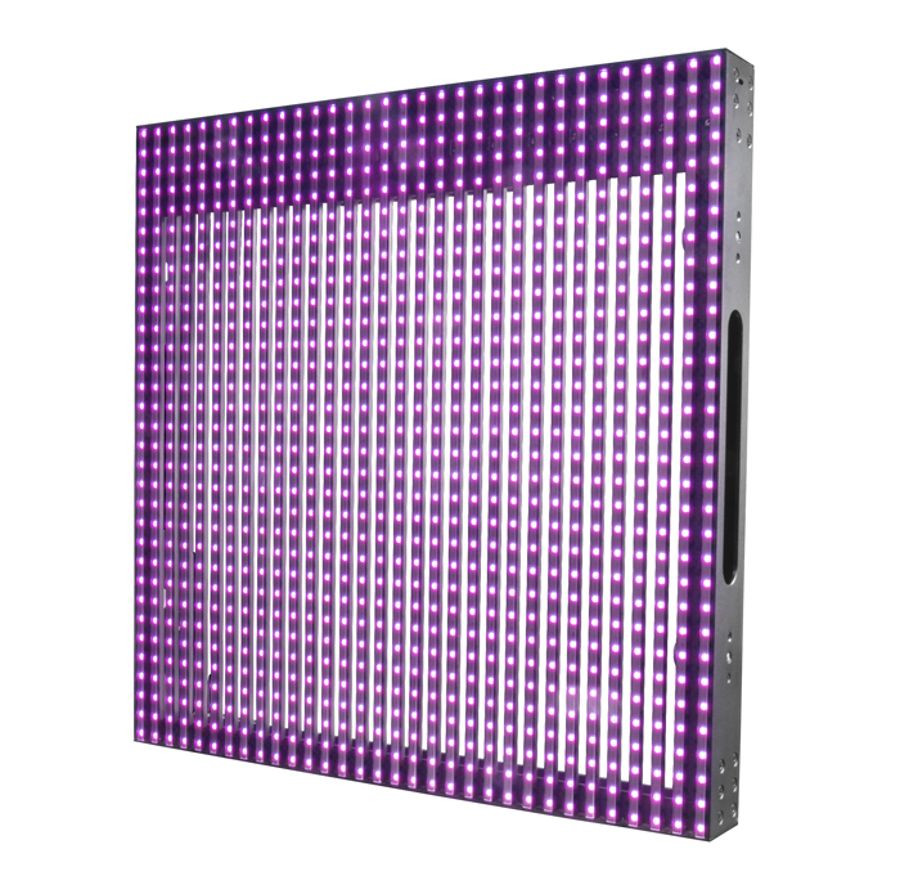

Chauvet Professional MVP 18 - SMD LED Video Panel 6-Pack

chauvet professional mvp18x6
chauvet professional mvp18x6 Chauvet Professional MVP 18 - SMD LED Video Panel 6-Pack Chauvet Professional MVP 18 - SMD LED Video Panel 6-Pack Chauvet Professional MVP 18 - SMD LED Video Panel 6-Pack Chauvet Professional MVP 18 - SMD LED Video Panel 6-Pack Chauvet Professional MVP 18 - SMD LED Video Panel 6-Pack Chauvet Professional MVP 18 - SMD LED Video Panel 6-Pack Chauvet Professional MVP 18 - SMD LED Video Panel 6-Pack Chauvet Professional MVP 18 - SMD LED Video Panel 6-Pack
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Dropships Currently Out of Stock at Planet DJ
In Stock May Be Available on Amazon
In Stock Free Shipping On Most Orders Over $35
Buy on Amazon

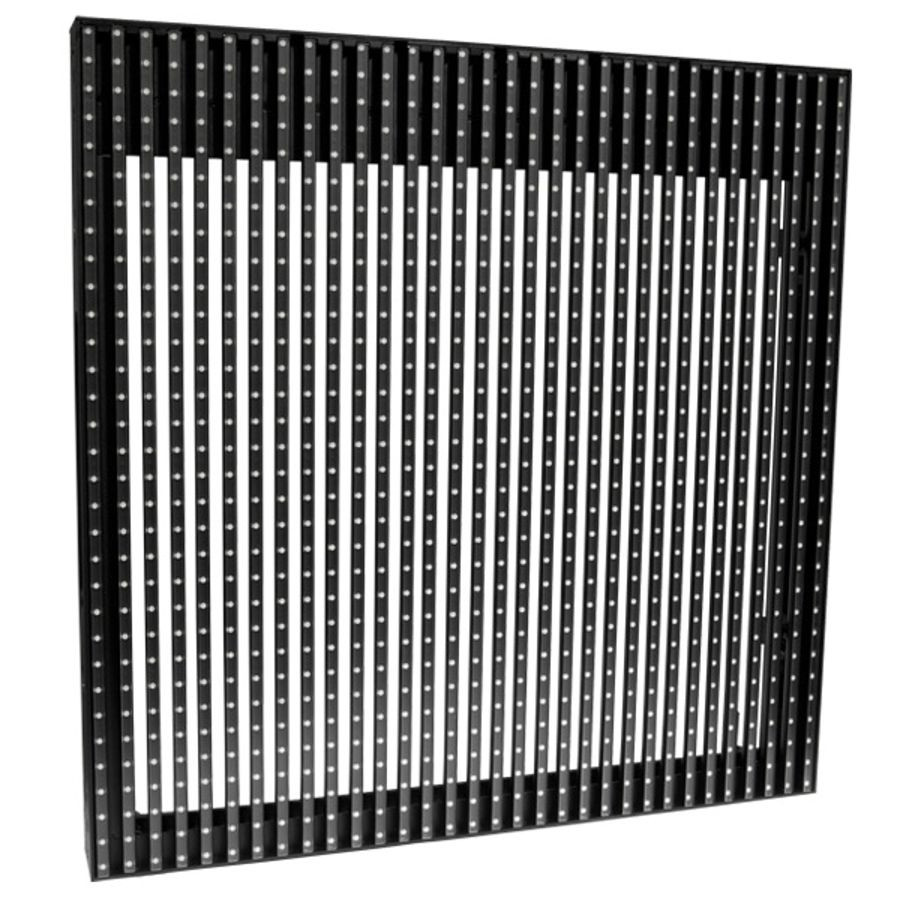

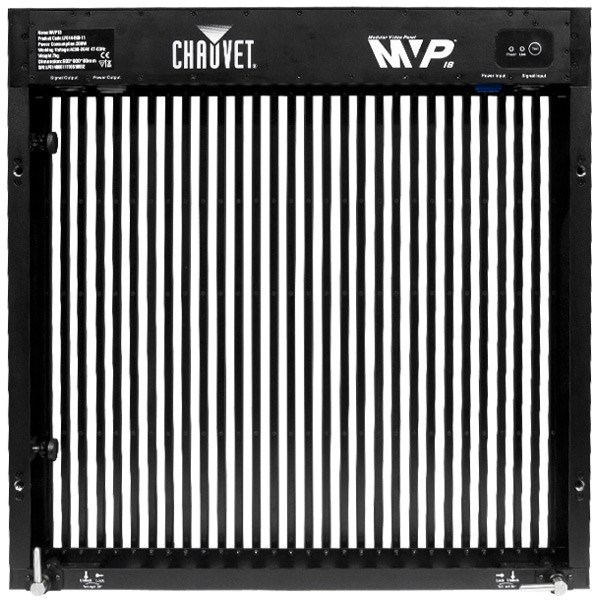

MVP' 18 is a bright, versatile, and cost-effective modular video panel with a pixel pitch of 18.75 millimeters. Due to the panel's transparency of 38 percent, pass-through atmospheric elements can add dimension and interest to your show. A wide viewing angle and the color consistency afforded by calibrated tri-colored SMD LEDs ensure camera-ready image quality.

• Lightweight and modular system for medium-resolution graphics
• Easy installation and connectivity using Neutrik powerCON and etherCON connectors
• Perfect product for long term installation
• Interchangeable with the MVP' 12 and MVP' 37.5 panels to create large wall designs
• Tri-color SMD LEDs provide better image quality and wider viewing angle
• Designed for temporary outdoors use and can be viewed during daylight operation

Specifications
• Pixel pitch: 18.75 mm

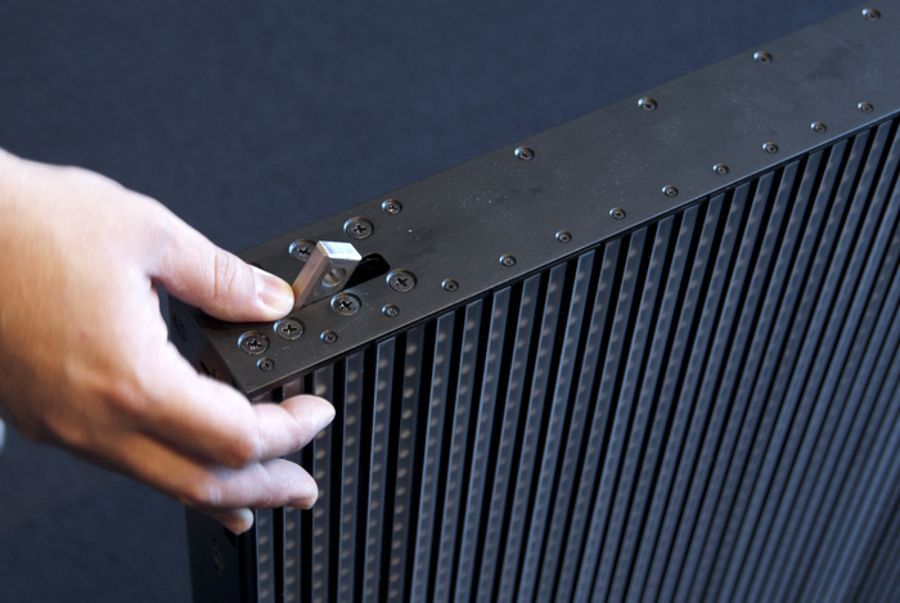

• Compatible mounting options: MVP' Rig Kit (truss mounting), or M10 bolt/clamp (rear mounting)
• Pixels / screen: 32 x 32 (1,024 total)
• Pixel density: 2844/m2
• Transparency: 38%
• Display rate: 400 Hz (flicker-free)
• Light source: Tri-color SMD 5050 LEDs 50,000 hrs
• Color wavelengths: Red: 622627 nm; green: 520525 nm; blue: 465470 nm
• Housing material: Aluminum alloy
• Viewing angle: 140
• Illuminance: 4,300 NITS
• IP rating: IP 54, temporary outdoor use
• Included etherCON & powerCON cable length: 1.3 ft (0.4 M)
• Power linking: 7 units @ 120 V/ 11 units @ 208 V/ 12 units @ 230 V
• Input voltage: Auto-ranging 100-240 VAC 50/60 Hz
• Power and current: 126 W, 1.06 A @ 120 V 60 Hz
• Power and current: 139 W, 0.68 A @ 208 V 60 Hz
• Power and current: 144 W, 0.67 A @ 230 V 50 Hz
• Weight: 15.5 lbs (7 kg)
• Size: 23.6 x 23.6 x 2.4 in (600 x 600 x 60 mm)
• Approvals: CE, ROHS

Additional Information

UPC781462207014
SKUMVP18X6
ManufacturerChauvet Professional
Price$9,599.99
Product ConditionNew - On Clearance
