Chauvet Professional MVP Ta8 Curve - Curving SMD LED Video Panel 6-Pack

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

chauvet professional mvpta8curvex6
Images may show accessories or configurations not packaged with this item.

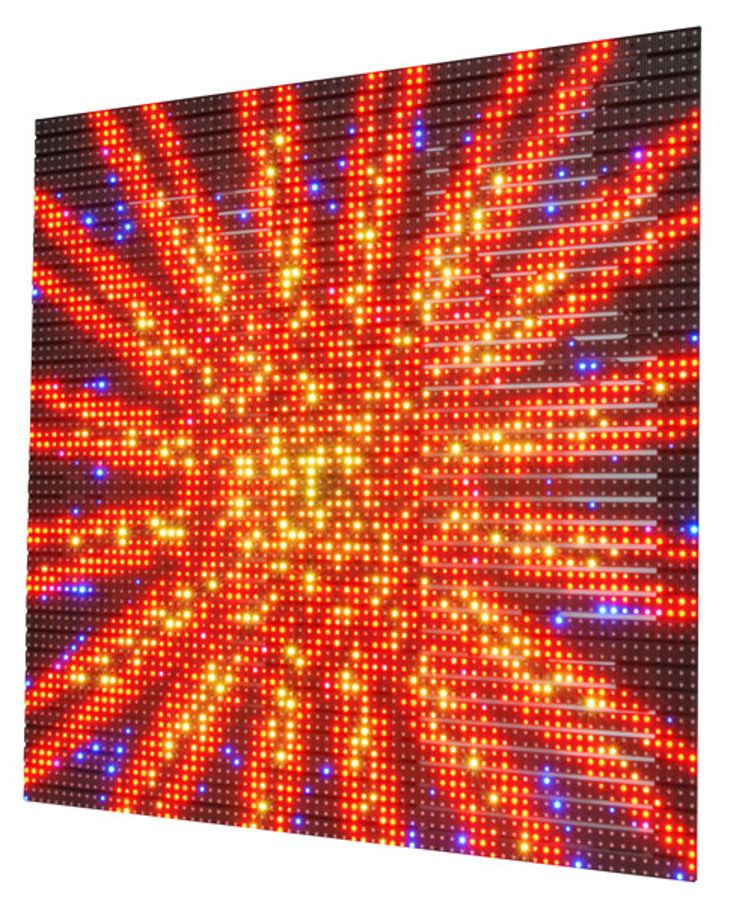

MVP' Ta8 Curve is a modular video panel with a tight pixel pitch of 8.33 mm, offering the flexibility to build concave or convex displays for short or long distance viewing. Intensely bright tri-colored SMD LEDs make it suited for temporary outdoor applications.

• 8.33 mm pixel pitch panels with integrated hardware allows units be hung straight, or in convex/concave curves
• Innovative rigging hardware lets the panels curve +/-18 degrees, without losing pixel pitch.
• Superb contrast through the use of blackface SMD LEDs
• Tight binning of LEDs ensures consistent color rendering across panels
• Durable and modular system for high-resolution graphics
• Easy installation and connectivity using Neutrik powerCON and etherCON connectors
• Solid construction makes these a perfect product for both touring and long term installation
• Tight pixel pitch allows for equally effective close range and long range viewing
• Designed for temporary outdoors use and can be viewed during daylight operation
• Works with VIP' Driver, VIP' 5162 Signal Processor, VIP' 112 Signal Processor, and VIP' Signal Distributor
• Compatible mounting options: MVP' Curve Rig Kits (truss mounting), or M10 bolt/clamp (rear mounting)
• Designed for temporary, outdoor use and can be viewed during daylight operation





Specifications


• Pixel pitch: 8.33 mm
• Compatible mounting options: MVP' Rig Kit (truss mounting), or M10 bolt/clamp (rear mounting)
• Pixels / screen: 72 x 72 (5,184 total)
• Pixel density: 14,400/m2
• Transparency: 12.5%
• Display rate: 720 Hz
• Light source: Tri-color SMD 3528 LEDs 50,000 hrs
• Color wavelengths: Red: 622627 nm; green: 520525 nm; blue: 465470 nm
• Housing material: Aluminum alloy
• Viewing angle: 140
• Curving angle: 18
• Illuminance: 4,800 NITS
• IP rating: IP 54, temporary outdoor use
• Power linking: 9 units @ 120 V/ 15 units @ 208 V/ 16 units @ 230 V
• Input voltage: Auto-ranging 100-240 VAC 50/60 Hz
• Power and current: 231 W, 1.92 A @ 120 V 60 Hz
• Power and current: 238 W, 1.17 A @ 208 V 60 Hz
• Power and current: 247 W, 1.12 A @ 230 V 50 Hz
• Weight: 27 lbs (12.25 kg)
• Size: 23.6 x 23.6 x 2.6 in (600 x 600 x 66 mm)
• Approvals: CE

Additional Information

UPC

N/A

SKU

MVPTA8CURVEX6

Manufacturer

Chauvet Professional

Price

$18,539.99

Product Condition

New - On Clearance
