With its 8 etherCON ports, this product will preserve your signal strength and add protective isolation. NET-Switch utilizes High bandwidth, 48Gb/s throughput to reduce latency, and insure that you will hit your mark for live shows.
Chauvet Professional Net Switch Features• Entertainment-grade network switch optimized for Art-Net, Kling-Net, and sACN
• Versatile applications with Truss-mount or Rack-mount options
• High-bandwidth throughput make this router ideal for live-action shows

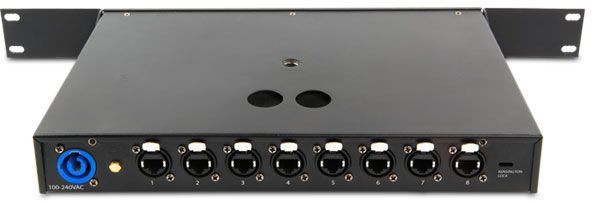

• 8 etherCON ports allow for easy control routing, isolation, and amplification
• Unmanaged switch is ideal for plug-and-play operation
SPECIFICATIONSOPTICAL
• Dimensions: 19 x 1.7 x 8 in (483 x 44 x 202 mm)
• Weight: 4.8 lb (2.2 kg)
• Exterior Color: Black
• Housing Material: Steel
• Rackmount: 1U
CONNECTIONS
• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Device Data Throughputs: Amphenol XLRnet (etherCON compatible) (8 total)
• Cable Length (power): 5 ft (1.5 m)
CONTROL
• Control Protocol: Art-Net', Kling-Net, sACN
ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 25 W, 0.2 A @ 120 V, 60 Hz
• Power and Current: 25 W, 0.1 A @ 208 V, 60 Hz
• Power and Current: 25 W, 0.1 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
• CEIP Rating: IP20, dry location
WHAT'S INCLUDED
• Net-Switch
• Neutrik powerCON power cord
• 2 Rack-mount Ears
