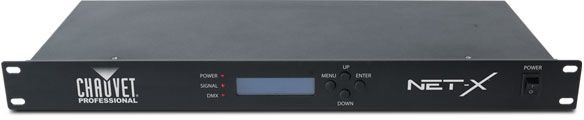

Net-X is a reliable and versatile rack-mountable Art-Net-to-DMX adapter with an integrated optical DMX splitter. It has two 5-pin DMX inputs and eight 5-pin DMX outputs, all optically isolated and can take up to eight Art-Net universes simultaneously. The eight 5-pin DMX outputs can be assigned to either of the DMX inputs or to the Art-Net input.
The Art-Net through allows daisy-chaining multiple Net-X adapters just in case more than eight universes are needed. Net-X provides a reliable, highly customizable network infrastructure for complex control systems.
VIDEO
Chauvet Professional Net-X Features • Universal, rack mount Art-Net-to-DMX adapter with integrated optical DMX splitter
• Multi-purpose Art-Net node and optical DMX splitter make this product versatile and ideal for both rental and installation applications
• Can act as an Art-Net node and an optical DMX splitter simultaneously

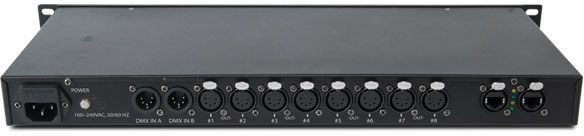

• Two 5-pin XLR inputs and eight 5-pin XLR outputs, all optically isolated
• 2 Neutrik etherCON in/through ports for inputting up to 8 Art-Net universes simultaneously
• Each of the 8 outputs can be set to 1 of 3 operating modes: DMX universe 1, DMX universe 2, or Art-Net universe (selectable from Art-Net universe, subnet, and net)
Chauvet Professional Net-X Specs CONSTRUCTION / PHYSICAL
• Dimensions: 19 x 6.6 x 1.8 in (483 x 168 x 45 mm)
• Weight: 4.4 lb (2.0 kg)
• Exterior Color: Black
• Housing Material: Steel
• Rackmount: 1U
CONNECTIONS
• Power Connection: Edison (Local) plug to IEC
• Power Input: Neutrik powerCON
• Device Data Inputs: Neutrik etherCON (1 total) and 5-pin XLR (2 total)
• Device Data Outputs: 5-pin XLR (8 total)
• Device Date Throughputs: Neutrik etherCON (1 total)
• Cable Length (power): 5 ft (1.5 m)
CONTROL
• Control Protocol: Art-Net, DMX
ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 30 W, 0.25 A @ 120 V, 60 Hz
• Power and Current: 30 W, 0.14 A @ 208 V, 60 Hz
• Power and Current: 30 W, 0.13 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
• CEIP Rating: IP20, dry location
WHAT'S INCLUDED
• Net-X
• Neutrik powerCON power cord
