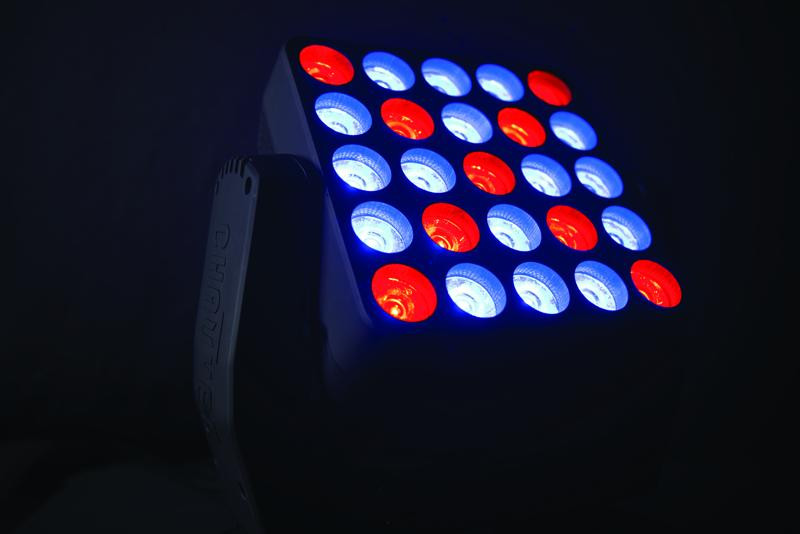

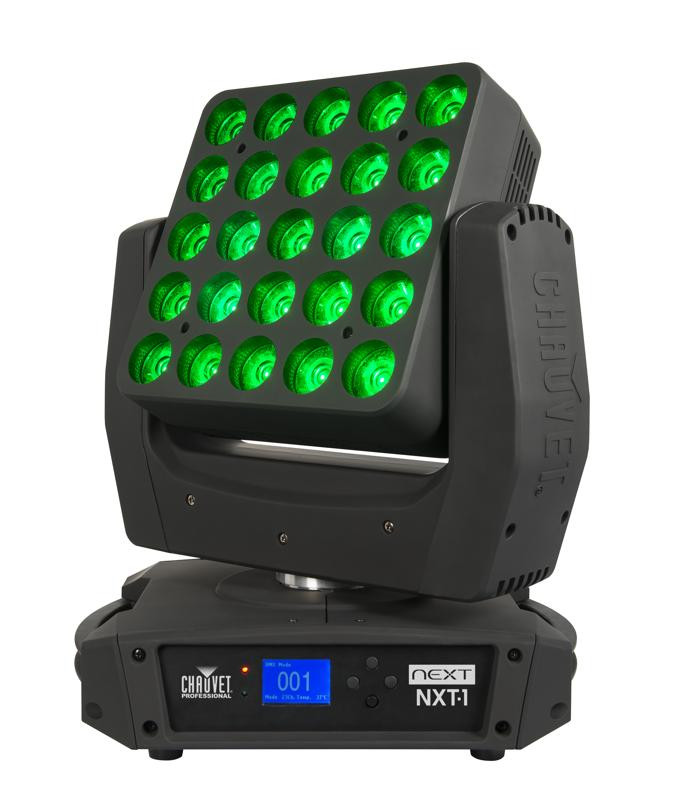

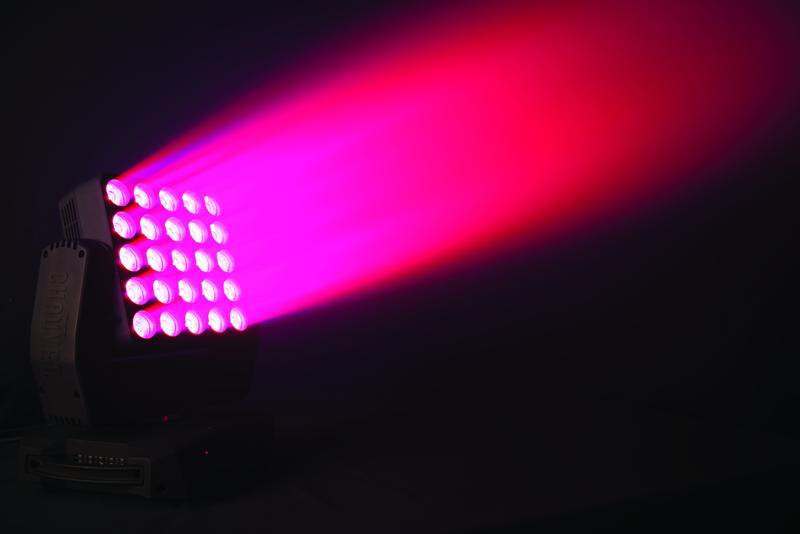

Chauvet Professional Next NXT-1 LED Moving Head LED Panel with RGBW LEDs

• Pixel mapping LED moving head utilizing bright 25 RGBW 10 W Osram LEDs
• Tight beam angle of 6 ensures maximum punch at long throws, with 22,780 lux at 5 meters
• Lightweight housing with ultra-fast pan/tilt movement guaranteed to keep up with your other professional moving head fixtures
• Versatile control options include Art-Net', Kling-Net, and 3- and 5-pin DMX
• Neutrik powerCON and etherCON connection for power and data linking
• Built-in web server for remote diagnostics and firmware upgrades

Specifications
• Control Protocol: Art-Net', Kling-Net, DMX
• DMX Channels 10, 13, 23, 106 or 119
• Art-Net' Channels: 10, 13, 23, 106 or 119
• Data Connectors: 3- and 5-pin XLR, Neutrik etherCON
• Light Source: 25 LEDs (quad-color RGBW) 10 W, (2.9 A), 50,000 hours life expectancy
• Built-in Automated Programs: Yes
• Pan and Tilt: 540/270
• Pixels: 5 x 5
• Pixel Pitch: 48 mm
• Strobe Rate: 0 to 13 Hz
• Beam Angle: 6
• Field Angle: 11
• Illuminance (total): 22,780 lux @ 5 m
• Color Temperature (range): 2800 to 10000 K
• IP Rating: IP20, dry location
• Cable Length: 5 ft (1.5 m)
• Power Connection: Edison plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Power Linking: 5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 397 W, 3.5 A @ 120 V, 60 Hz
• Power and Current: 378 W, 1.9 A @ 208 V, 60 Hz
• Power and Current: 375 W, 1.8 A @ 230 V, 50 Hz
• Weight (single unit): 30.6 lb (13.9 kg)
• Weight (road case): 101.2 lb (45.9 kg)
• Dimensions (single unit): 11.3 x 15.4 x 18.6 in (288 x 391 x 472 mm)
• Dimensions (road case): 20.4 x 31.1 x 31.7 in (520 x 790 x 807 mm)
• Accessories (optional): ArKaos MediaMaster Express' + KN software
• Approvals: CE
