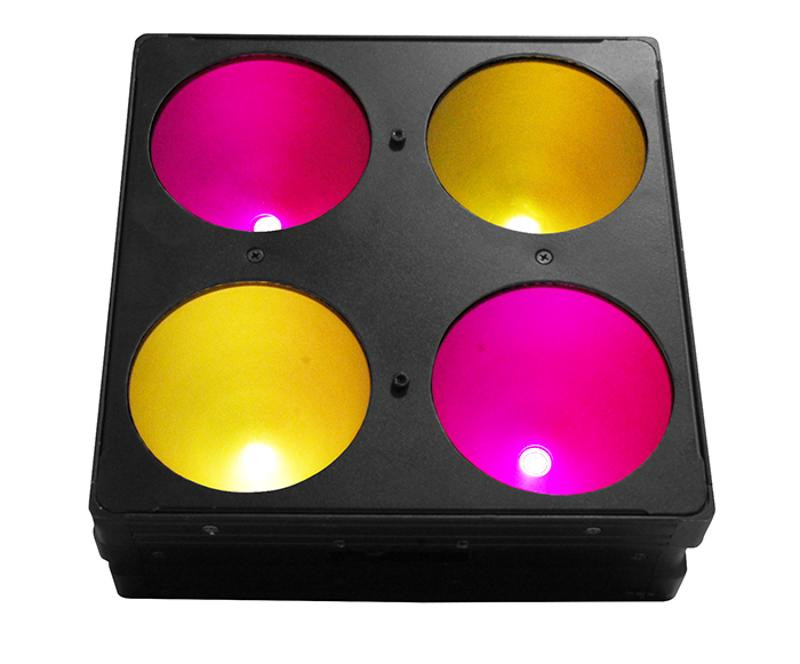

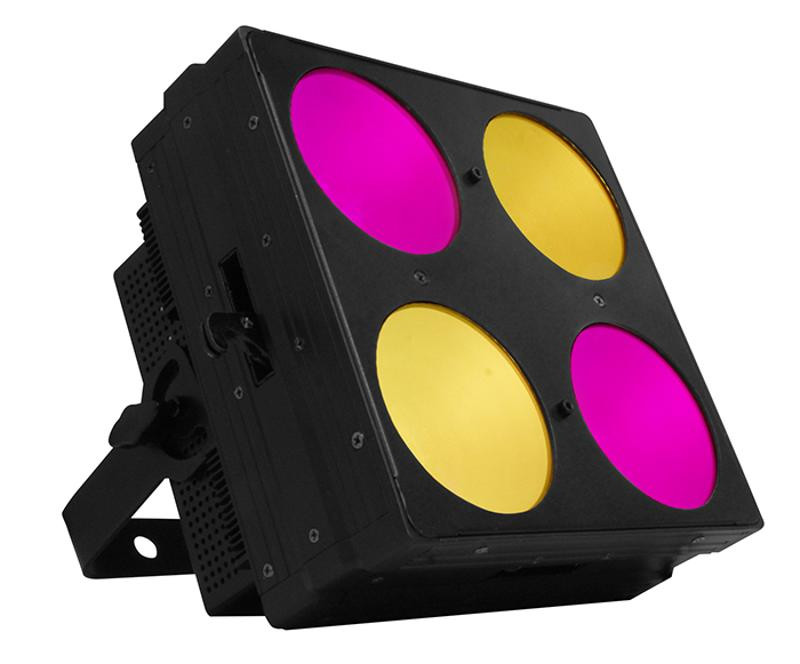

Chauvet Professional Nexus 2X2 4-Cell COB RGB LED Fixture

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

chauvet professional nexus2x2
chauvet professional nexus2x2 Chauvet Professional Nexus 2X2 4-Cell COB RGB LED Fixture Chauvet Professional Nexus 2X2 4-Cell COB RGB LED Fixture Chauvet Professional Nexus 2X2 4-Cell COB RGB LED Fixture
Nexus' 2x2 is a 4-cell COB RGB LED fixture designed for building scalable pixel mapping displays. Combine with Nexus' 4x4 and Nexus' 4x1 for larger geometric displays that aptly demonstrate its pixel-mapping capability and diffused yet richly saturated colored light.

• Achieve vibrant colors with bright COB LEDs
• Increase pixel mapping options by controlling pixels individually
• Build large arrays by linking multiple panels together with integrated locks
• Works seamlessly with Nexus' 4x4 and Nexus' 4x1
• Design with flexible control options: Kling-Net, Art-Net, or DMX
• Use universal power connectors: Neutrik powerCON, Neutrik etherCON, 3- and 5-pin DMX

Specifications
• DMX Channels: 3, 5, 9, 12 or 17
• DMX Connectors: 3- and 5-pin
• Light Source: 4 (Tri-color RGB) 27W (700mA) LEDs 50,000hrs
• Strobe Rate: 0 - 20Hz
• Beam Angle: 45
• Field Angle: 75
• Illuminance: 135 lux @ 5m
• Color Temperature Range: 2,800 10,000K
• IP Rating: IP20
• Cable Length: 5ft (1.5m)
• Power Input: powerCON
• Power Linking: 15 units @ 120V; 25 units @ 208V; 28 units @ 230V
• Input Voltage: Auto-ranging 100 - 240VAC 50/60Hz
• Power and Current: 108W, 0.90A @ 120V 60Hz
• Power and Current: 112W, 0.53A @ 208V 60Hz
• Power and Current: 111W, 0.48A @ 230V 50Hz
• Weight: 10lbs (4.6kg)
• Size: 9 x 9 x 6in (228 x 228 x 152.4mm)
• Approvals: CE, MET

Additional Information

UPC781462210939
SKUNEXUS2X2
ManufacturerChauvet Professional
Product ConditionNew - On Clearance
ReturnableNo
