Chauvet Professional Nexus 4X1 COB RGB LED Linear Effect

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

chauvet professional nexus4x1
chauvet professional nexus4x1 Chauvet Professional Nexus 4X1 COB RGB LED Linear Effect Chauvet Professional Nexus 4X1 COB RGB LED Linear Effect Chauvet Professional Nexus 4X1 COB RGB LED Linear Effect Chauvet Professional Nexus 4X1 COB RGB LED Linear Effect Chauvet Professional Nexus 4X1 COB RGB LED Linear Effect Chauvet Professional Nexus 4X1 COB RGB LED Linear Effect

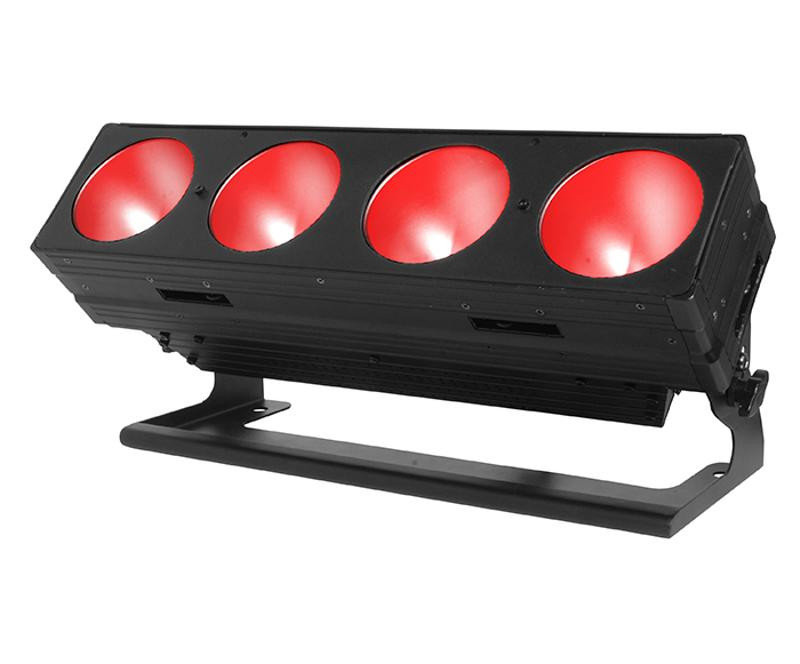

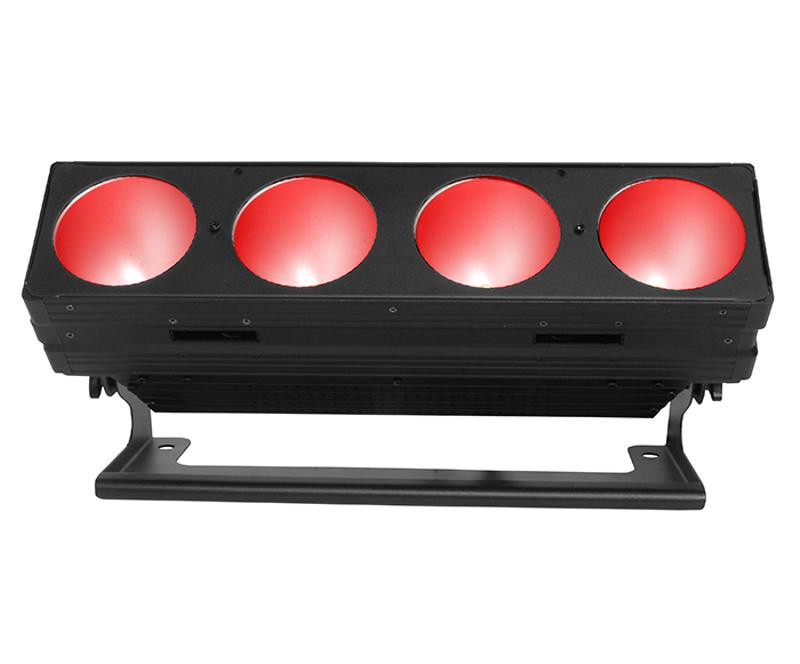

Nexus' 4x1 is a 4-cell COB RGB LED fixture designed for building scalable pixel mapping displays. Mount to the top and bottom of Nexus' 4x4 to enlarge its footprint, or link to each other for linear effects. Nexus' 4x1 is perfect for installation on steps or lining the front of a stage.

• Achieve vibrant colors with bright COB LEDs
• Increase pixel mapping options by controlling pixels individually
• Build large arrays by linking multiple panels together with integrated locks
• Links to Nexus' 4x4 on top and bottom and works with Nexus' 2x2
• Design with flexible control options: Kling-Net, Art-Net, or DMX

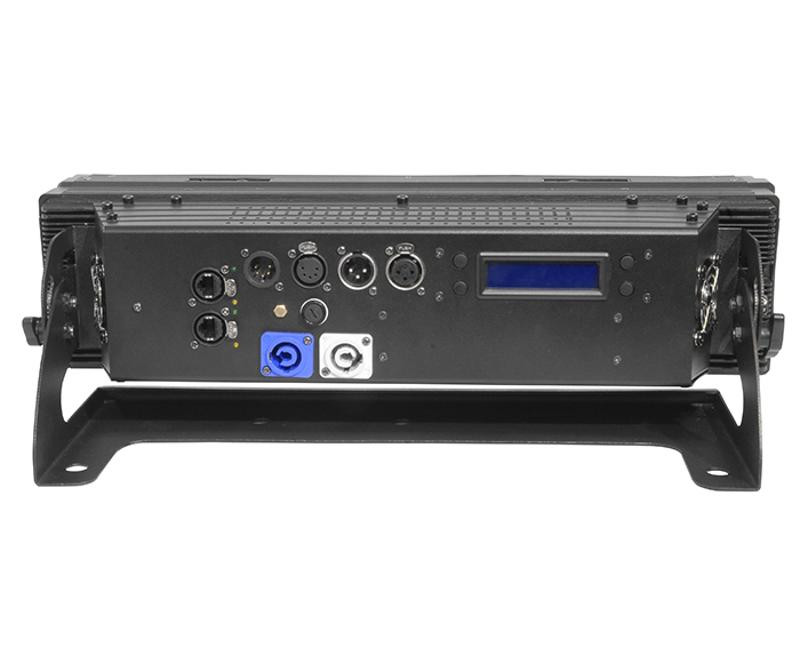

• Use universal power connectors: Neutrik powerCON, Neutrik etherCON, 3- and 5-pin DMX

Specifications
• DMX Channels: 3, 5, 9, 12 or 17
• DMX Connectors: 3- and 5-pin
• Light Source: 4 (Tri-color RGB) 27W (700mA) LEDs 50,000hrs
• Strobe Rate: 0 - 20Hz
• Beam Angle: 45
• Field Angle: 75
• Illuminance: 84.2 lux @ 5m
• Color Temperature Range: 2,800 - 10,000K
• IP Rating: IP20
• Startup Temperature: -4 - 113F (-20C - 45C)
• Operating Temperature: -22 - 113F (-30C - 45C)
• Cable Length: 5ft (1.5m)
• Power Linking: 15 units @ 120V; 26 units @ 208V; 28 units @ 230V
• Input Voltage: Auto-ranging 100 - 240VAC 50/60Hz
• Power and Current: 107W, 0.88A @ 120V 60Hz
• Power and Current: 109W, 0.52A @ 208V 60Hz
• Power and Current: 109W, 0.47A @ 230V 50Hz
• Weight: 12.6lbs (5.7kg)
• Size: 18.2 x 4.6 x 5.8in (462 x 117 x 147mm)
• Approvals: CE, MET

Additional Information

UPC781462210618
SKUNEXUS4X1
ManufacturerChauvet Professional
Product ConditionNew - On Clearance
ReturnableNo
