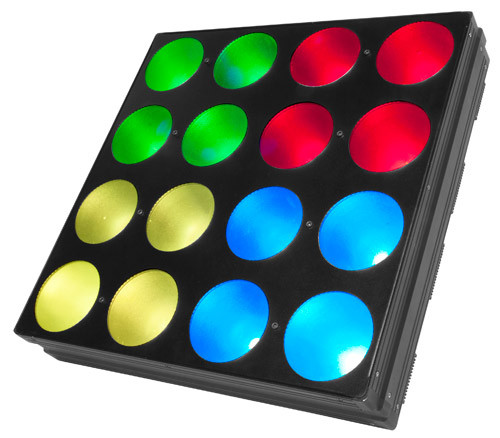

Chauvet Professional Nexus 4x4 LED Wash Light

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

chauvet professional nexus4x4
chauvet professional nexus4x4 Chauvet Professional Nexus 4x4 LED Wash Light Chauvet Professional Nexus 4x4 LED Wash Light Chauvet Professional Nexus 4x4 LED Wash Light Chauvet Professional Nexus 4x4 LED Wash Light Chauvet Professional Nexus 4x4 LED Wash Light Chauvet Professional Nexus 4x4 LED Wash Light Chauvet Professional Nexus 4x4 LED Wash Light Chauvet Professional Nexus 4x4 LED Wash Light
Nexus' 4x4 is both a bold eye-candy and a tour-ready wash light capable of delivering at once the sizzle of a pixel mapping display and a robust light output afforded by 16 20-watt RGB COB LEDs . The combination of COB emitters and a clever reflector design yields a striking, diffused light richly drenched in saturated hues. Nexus' 4x4 is controllable via Art-Net, Kling-Net and DMX protocols and features interlocking hardware to build large arrays. Whether in use for front viewing or as a backdrop, Nexus' 4x4 promises a hard-to-match visual impact.







• DMX channels: 3, 5, 9, 48, 52-channel
• Operating modes
3-channel: RGB
5-channel: Dimmer, RGB, Strobe
9-channel: Dimmer, RGB, shutter, color macro, auto, auto speed, dim mode
48-channel: RGB(1), RGB(2), RGB(3), RGB(4), RGB(5), RGB(6), RGB(7), RGB(8), RGB(9), RGB(10), RGB(11), RGB(12), RGB(13), RGB(14), RGB(15), RGB(16)
52-channel: RGB(1), RGB(2), RGB(3), RGB(4), RGB(5), RGB(6), RGB(7), RGB(8), RGB(9), RGB(10), RGB(11), RGB(12), RGB(13), RGB(14), RGB(15), RGB(16), auto, auto speed, dimmer, shutter
• Controllable by Kling-net, Art-net, and DMX
• Bright large diode COB LEDs for vibrant colors
• Individual pixel control for pixel mapping options
• Link multiple panels together with included linking hardware
• Neutrik PowerCON, Neutrik EtherCON, 3- and 5-pin connections

Specifications

• DMX connectors: 3- and 5-pin
• Source: 16 (20 W) RGB LEDs, 50,000 hours
• Light source: Red (658 mA x 7.67 vdc = 5.04 W)
Green (667 mA x 10.60 vdc = 7.07 W)
Blue (680 mA x 10.11 vdc = 6.90 W)
• Beam angle: 42
• Field angle: 72.5
• Illuminance: 484 lux @ 5 m
• Power linking: 4 units @ 120 V, 7 units @ 208 V, 8 units @ 230 V
• Input voltage: auto-ranging 100-240 VAC 50/60 Hz
• Power and current: 401 W, 3.35 A @ 120 V 60 Hz
• Power and current: 393 W, 1.90 A @ 208 V 50 Hz
• Power and current: 394 W, 1.71 A @ 230 V 50 Hz
• Weight: 26.6 lbs (12.07 kg)
• Dimensions: 18.25 x 18.25 x 8.27 in (463.6 x 463.6 x 210 mm)
• Environment: IP20, dry location
• Approvals: CE

Additional Information

UPC781462210045
SKUNEXUS4X4
ManufacturerChauvet Professional
Product ConditionNew - On Clearance
ReturnableNo
