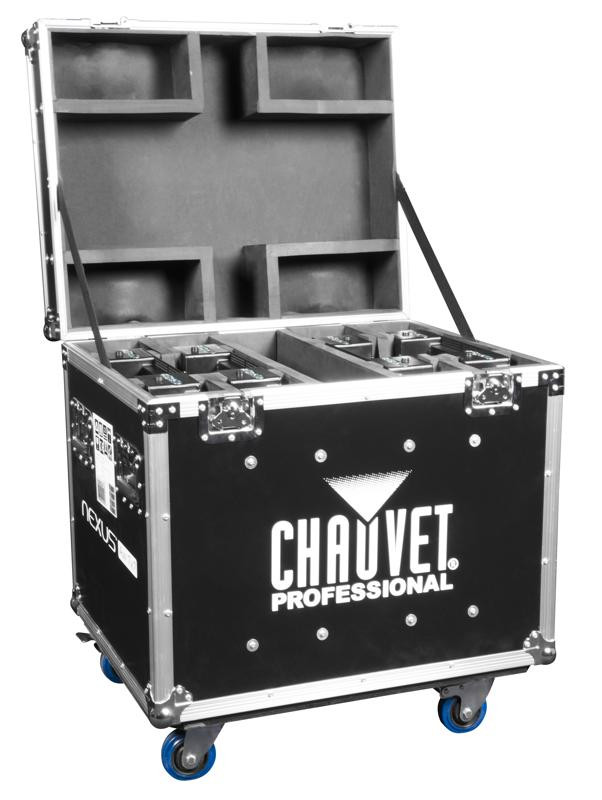

Chauvet Professional Nexus AW 7X7 LED Stage Blinder 4-Pack with Road Case

Dropships Ships Directly From The Supplier
This item is not in stock. Chauvet Professional can ship this item directly to you after 1 to 3 business days processing time, depending upon their stock levels. Order now! We'll notify you promptly if we hear of any delay.
Free Shipping FREE Ground Shipping to the contiguous U.S. (details)

VIP Price:

chauvet professional nexusaw7x7pack
chauvet professional nexusaw7x7pack Chauvet Professional Nexus AW 7X7 LED Stage Blinder 4-Pack with Road Case Chauvet Professional Nexus AW 7X7 LED Stage Blinder 4-Pack with Road Case Chauvet Professional Nexus AW 7X7 LED Stage Blinder 4-Pack with Road Case Chauvet Professional Nexus AW 7X7 LED Stage Blinder 4-Pack with Road Case
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

The Nexus' Aw 7x7 LED panel wall system is a truly versatile LED system that projects narrow beams of light, provides warm washes, makes instant audience blinders, and displays impactful text and vivid animated graphics. Powerful Cree LEDs partnered with a flexible software system generate stunning pixel mapping effects. A smooth dimming curve with a 2800 K color temperature makes it perfect for live events, broadcast, studio, theatre, and touring applications.

• Stage blinder delivering great output due to 49 WW LEDs
• Project narrow beams of light
• Wash with a warm and rich 2800 K color temperature
• Create impactful text and vivid animated graphics
• Smooth dimming curve
• Built-in power supply for easy use
• Design with intuitive individual pixel-mapping options: Kling-Net, Art-Net', DMX
• Flexible panel system with integrated locks and 0.5 x 0.5 m footprint optimal for larger arrays
• Use universal power connectors: Neutrik powerCON, Neutrik etherCON, 3- and 5-pin connections
• Built-in effects triggered by DMX

Specifications
• Control Protocol: Art-Net', Kling-Net, DMX
• DMX Channels: 5 or 49
• Art-Net' Channels: 49
• Data Connectors: 3- and 5-pin XLR, Neutrik etherCON
• Light Source: 49 LEDs (warm white) 3 W, (700 mA), 50,000 hours life expectancy
• Built-in Automated Programs: Yes
• Pixels: 7 x 7
• Pixel Pitch: 71 mm
• Strobe Rate: 0 to 20 Hz
• Beam Angle: 7
• Field Angle: 12
• Illuminance (total): 9,400 lux @ 5 m
• Color Temperature (full): 2800 K
• IP Rating: IP20, dry location
• Cable Length: 5 ft (1.5 m)
• Power Connection: Edison plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 173 W, 1.44 A @ 120 V, 60 Hz
• Power and Current: 171 W, 0.82 A @ 208 V, 60 Hz
• Power and Current: 176 W, 0.75 A @ 230 V, 50 Hz
• Weight (single unit): 17.2 lb (7.8 kg)
• Dimensions (single unit): 19.7 x 19.7 x 3.5 in (500 x 500 x 90 mm)
• Housing Material: Aluminum alloy
• Compatible Mounting Options: Affinity' Rig Kit (truss mounting), or M12 Bolt/Clamp (rear mounting/adjustable bracket)
• Accessories (optional): ArKaos Media Master Express' + KN software
• Approvals: CE

Additional Information

UPC 781462211196
SKU NEXUSAW7X7PACK
Manufacturer Chauvet Professional
Product Condition New
Returnable Yes
