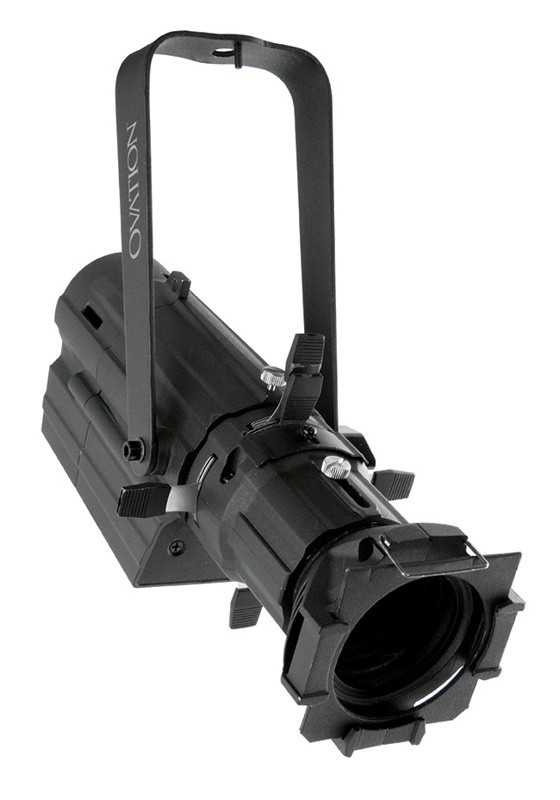

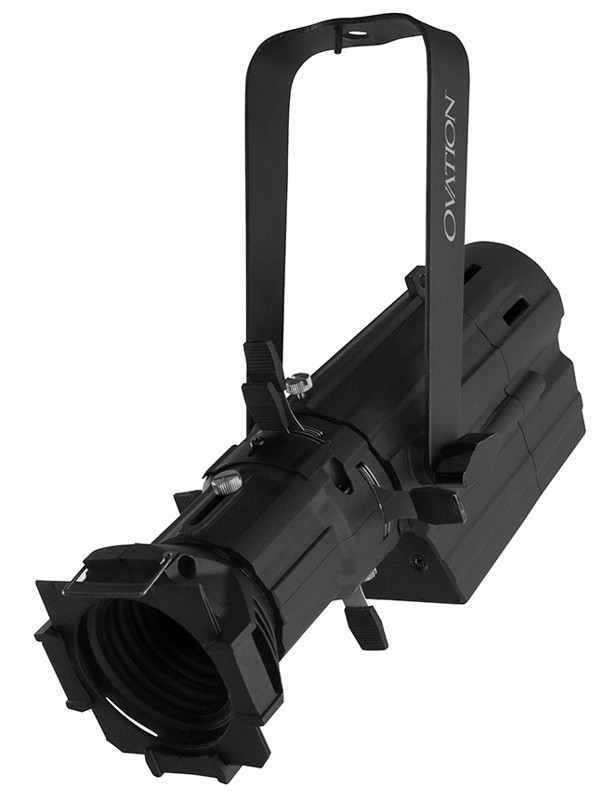

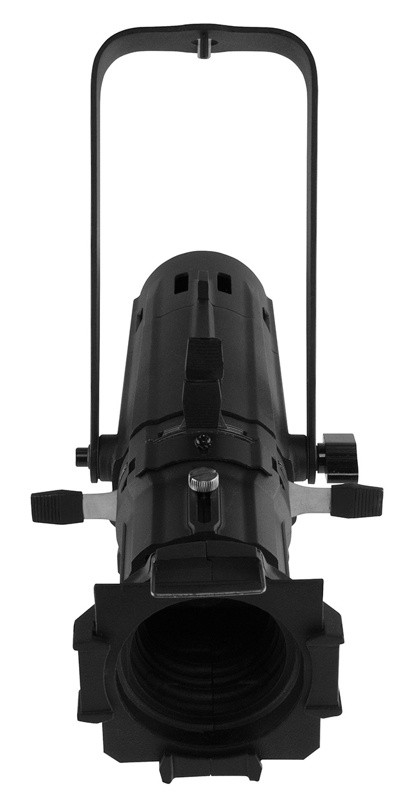

Ovation' Min-E-10WW with 36 Degree Lens is the perfect complement in form and function to the bigger Ovation' E-190WW in a handy, almost pocket sized version. Powered by a punchy 10 W warm white LED, this ultra discreet ellipsoidal features a four-blade shutter system to efficiently and cleanly crop light from unwanted areas, and the interchangeable lens tubes slide in and lock down at the desired focus point. Ovation' Min-E-10WW is easily dimmed using external LED lighting dimmer packs.
Features• Compact LED ellipsoidal shines a hard-edged beam perfect for gobo projection
• Fade the LED by connecting to a dimmable circuit
• Highlight areas by altering the projected beam with framing shutters
• Easily print your own gobos on transparency film or use standard size E glass or metal gobos
• Interchangeable lens tubes available in 19 and 36 beam angles
Specifications• Light Source: 1 LED (WW) 13 W, (1,000 mA), 50,000 hours life expectancy
• Gobo Size (Optional): Gobo holder size E: 37.5 mm (outside), 28 mm (image), 1 mm (max. thickness)
• Accessory Holder/Gel Frame Size: 2.75 in (70 mm)
• Focus: Manual
• Beam Angle (w/36 lens): 21
• Field Angle(w/36 lens): 35
• Illuminance (w/36 lens): 50 lux @ 5 m
• Color Temperature (at full): 3050 K
• IP Rating: IP20, dry location
• Cable Length: 5 ft (1.5 m)
• Power Connection: Edison plug to hard-wired
• Power Input: Hard-wired
• Input Voltage: 120 VAC, 60 Hz
• Power and Current: 12 W, 0.091 A @ 120 V, 60 Hz
• Weight (fixture only): 3.0 lb (1.4 kg)
• Dimensions (fixture only): 8.9 x 4.3 x 9.1 in (225 x 108 x 232 mm)
• Approvals: CE, MET
