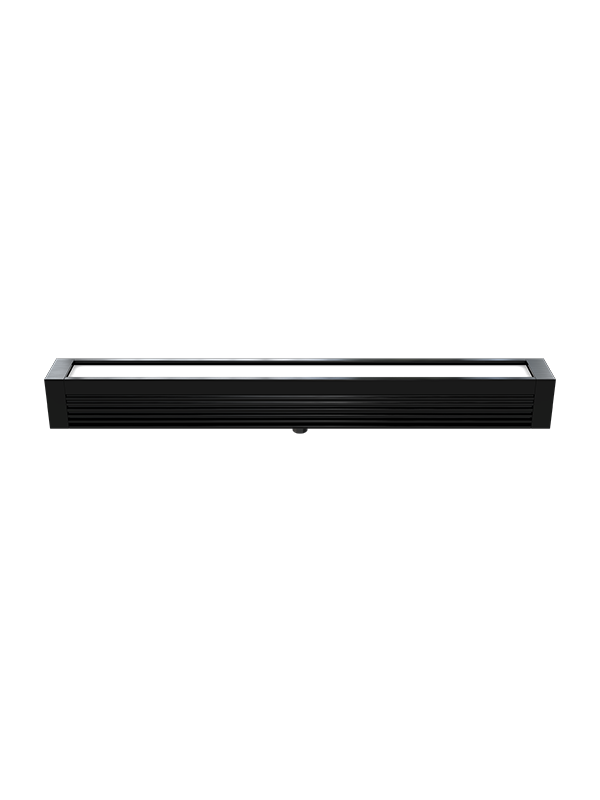

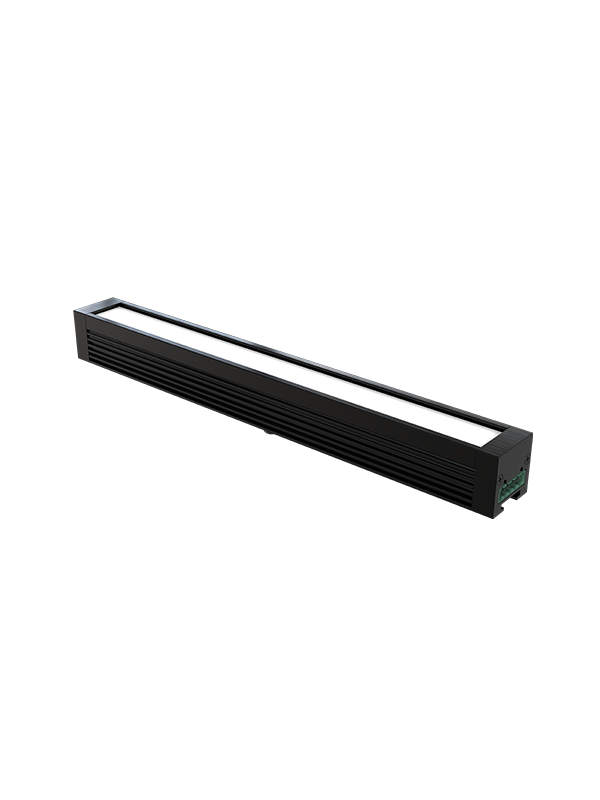

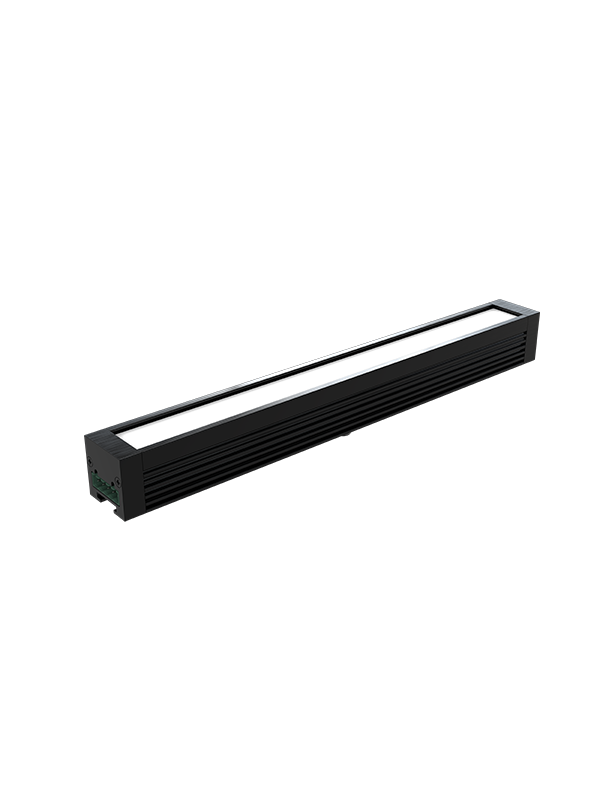

Chauvet Professional onAir Flex 12 LED Soft Catch Light

Features
• Full spectrum LED soft catch light for short throw studio applications
• High quality white light and color
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera via onAir Flex Drive
• Completely silent operation for use in studio applications
• Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme via onAir Flex Drive.

Specifications

Optical
• Light Source: 12 LEDs (tri-color RGB) 1.5 W, (150 mA), 50,000 hours life expectancy.
• Light Source: 12 LEDs (WW) 0.36 W, (150 mA), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 10000 K
• Color Temperature (at full): 9190 K
• CRI: 96
• Beam Angle - Medium: 96.1 x 64.3
• Beam Angle - Light: 111 x 62
• Beam Angle - Heavy: 93.3 x 72.2
• Field Angle - Medium: 148.8 x 123.8
• Field Angle - Light: 149.8 x 126.3
• Field Angle - Heavy: 151.7 x 136
• Lumens - Medium: 765 lm
• Lumens - Light: 810 lm
• Lumens - Heavy: 734 lm
• Illuminance - Medium : 17 lux @ 5 m
• Illuminance - Light : 16 lux @ 5 m
• Illuminance - Heavy : 15 lux @ 5 m
• Selectable PWM: via onAir Flex Drive

Construction / Physical
• Dimensions: 12.8 x 1.46 x 1.37 in (326 x 37 x 35 mm)
• Shipping Dimensions: 15 x 6.5 x 4 in (381 x 165 x 102)
• Weight: 0.975 lb (0.442 kg)
• Exterior Color: Black
• Housing Material: Extruded Aluminum

Connections
• Power Connection: Phoenix connector to Bare-wire
• Physical Linking: Phoenix connector to Bare-wire

Control
• Control Protocol:DMX
• DMX Channels: 8 or 10
• Modes/Personalities: 8ch-RGBWx2, 10ch-RGBW+Dx2

Electrical
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 26 W, 0.28 A @ 120 V, 60 Hz
• Power and Current: 24 W, 0.31 A @ 208 V, 60 Hz
• Power and Current: 24 W, 0.29 A @ 230 V, 50 Hz

Cable
• Connector: Phoenix
• Pins: 5

Certifications / Qualifications
• CE, MET, FCC, UKCA
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)

What's Included
• OnAir Flex 12
• 6cm Cable
• 12cm Cable
• Blanks Connectors
• Light Filter
• Heavy Filter

Required Accessories
• onAir Flex Drive
