Conveniently switch mounting options from the Ball Head Mount with included adapters for a Baby Pin Receiver or a threaded insert for attaching a clamp. The rugged build is designed with a drop-in slot to ensure ease of use when changing accessories. PWM, DMX, RDM, CRMX, Art-Net, sACN, and an onboard control option ensure camera-ready use. Its small size makes it super portable, and you can remove the main power supply for a 28 VDC input via 3-pin XLR to power the fixture from an external battery pack to add increased flexibility for all of your remote needs.

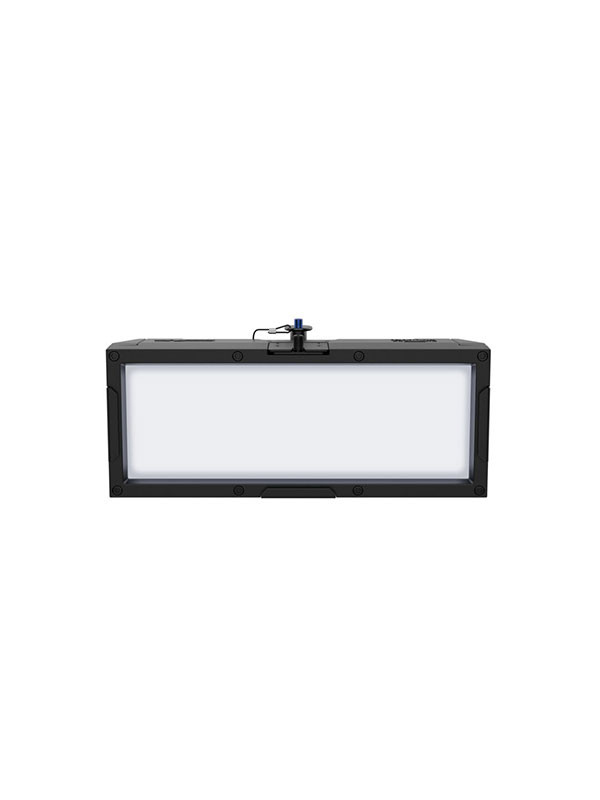

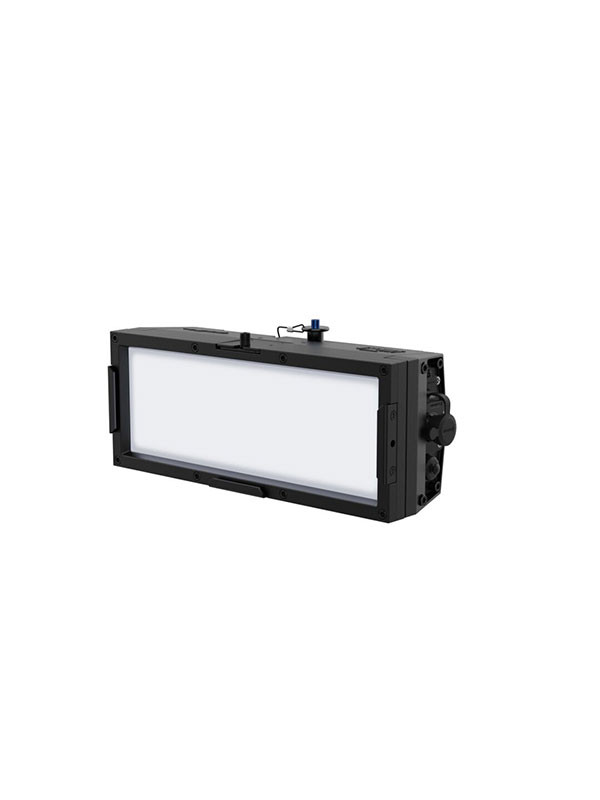

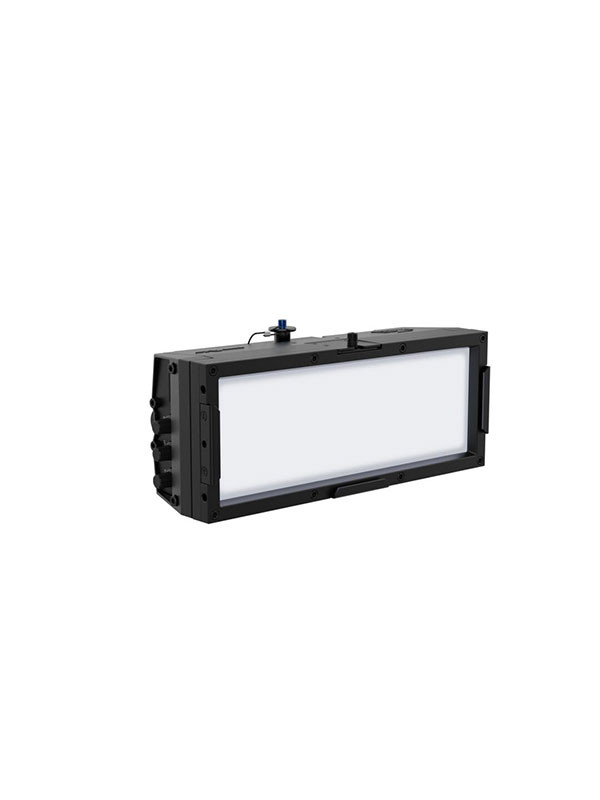

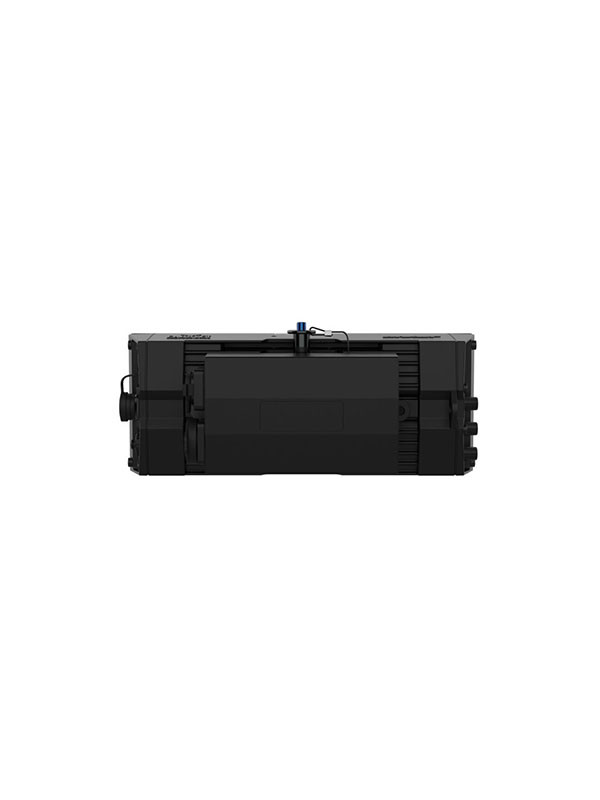

Features• Full-spectrum LED mini soft light panel style fixture for broadcast, film, and special events
• IP65 rating for all weather use indoors or out.
• Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS
• Virtual color wheel with color matched to popular gel colors
• +/- Green adjustment and emulated red-shift via DMX or on-board control
• RDM (Remote Device Management) and CRMX Wireless Control for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Completely silent operation for use in studio applications
• Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme.
• Easily switch mounting options from Clamp mount on a ball head to Baby Pin
• Drop-in slot for accessories (sold separately)
• Rugged design for years of rough use in the most extreme conditions.
• Easy to use on-board control with full access to all the features of the fixture without the need for a dedicated controller.
• USB port for fixture software updates
• Compact design perfect for run-and-gun or indoor installation
• 28 VDC power input via 3-pin XLR to power the fixture from an external battery pack
SpecficationsOptical• Light source: 40 LEDs (tri-color RGB) 1.4 W, (150 mA), 50,000 hours life expectancy
• Light source: 40 LEDs (WW) 0.50 W, (150 mA), 50,000 hours life expectancy
• Color temperature (range): 2800 to 8000 K
• Color temperature (at max): 6367 K
• CRI: 95
• Beam Angle: 94.9
• Field Angle: 149.4
• Lumens: 2,573
• Illuminance: 47 lux @ 5 m
• Selectable PWM : 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Dynamic Effects• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 27 Hz
• Independent color mixing: Yes
• Color temperature presets: Yes
• Dimming modes: 4
• Dim Curves: 4
• Built-in automated programs: Yes
Construction / Physical• Dimensions w/ PSU: 10 x 5.62 x 4.29 in (254 x 143 x 109 mm)
• Dimensions w/o PSU: 10 x 4.13 x 4.29 in (254 x 105 x 109 mm)
• Weight w/ PSU: 6.2 lb (2.9 kg)
• Weight w/o PSU: 4.2 lb (2 kg)
• Exterior Color : Black
• Housing material: Aluminum Alloy
Connections• Power connection: Edison plug (local) to Seetronic Powerkon IP65
• Power input: Seetronic Powerkon IP65
• Power Input: 28 VDC, 3-pin IP65 XLR
• Cable Length (power): 5 ft (1.5 m)
• Software Connection: USB
Control• Control Protocol: CRMX, RDM
• DMX Channels: 1, 3, 4, 5, 6, 8, 10, 11, 15
• Modes/Personalities: 9 personalities (1, 3, 4, 5, 6, 8, 10, 11, 15Ch1)
Electrical• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 49 W, .419 A @ 120 V, 60 Hz
• Power and Current: 52 W, .260 A @ 208 V, 60 Hz
• Power and Current: 57 W, .246 A @ 230 V, 50 Hz
Certifications / Qualifications• CE, MET, FCC,
• IP Rating: IP65, temporary outdoor use, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)
What's Included• onAir IP Panel Min IP
• Seetronic Powerkon IP65
• mounting hardware
Optional Accessories• onAir Panel Min IP Barndoor
• onAir Panel Min IP 30deg Honeycomb
• onAir Panel Min IP 60deg Honeycomb
• Professional Clamps: CTC-50HC, CTC-50HCN
• Seetronic Powerkon power linking cables
• 5-pin DMX Cables
