• Display a full spectrum of hues with RGBAL LEDs for theatre, film and production
• Theatre-ready with 16-bit dimming of master dimmer and individual colors

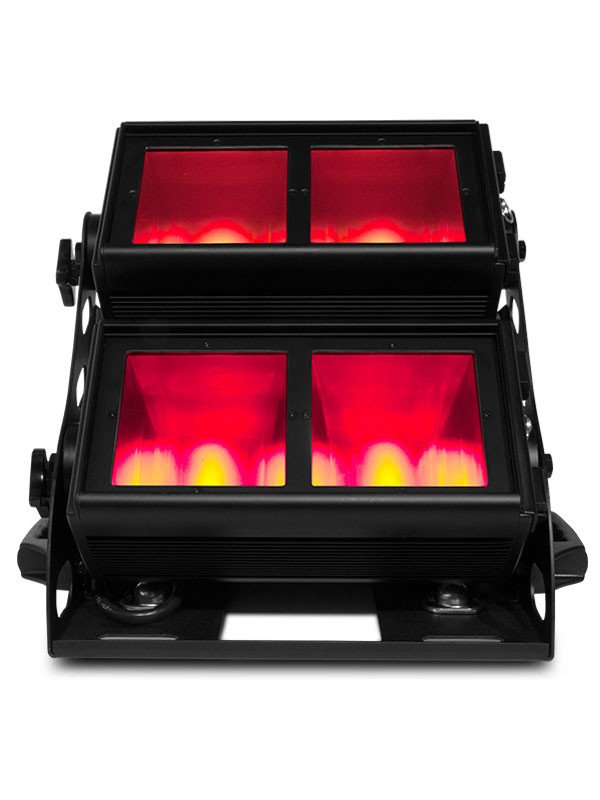

• Better coverage with two individually adjustable heads, gives the ability to project split colors

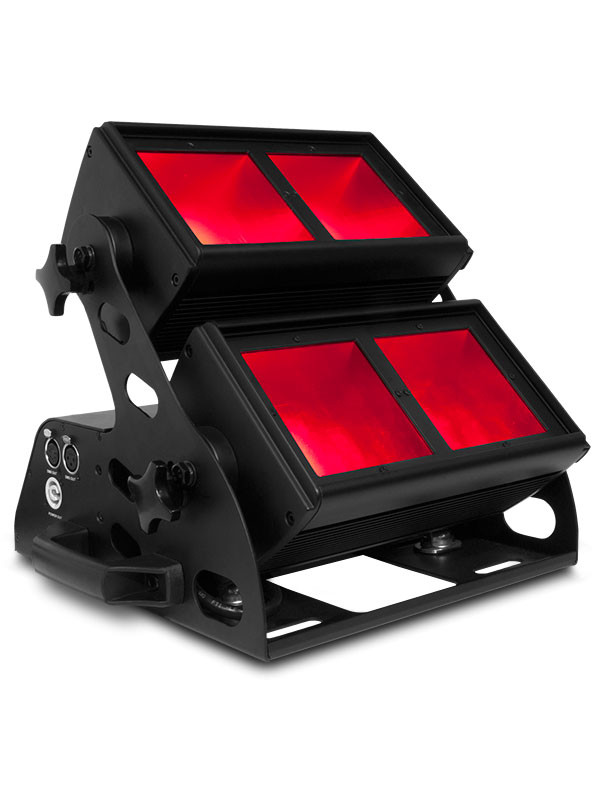

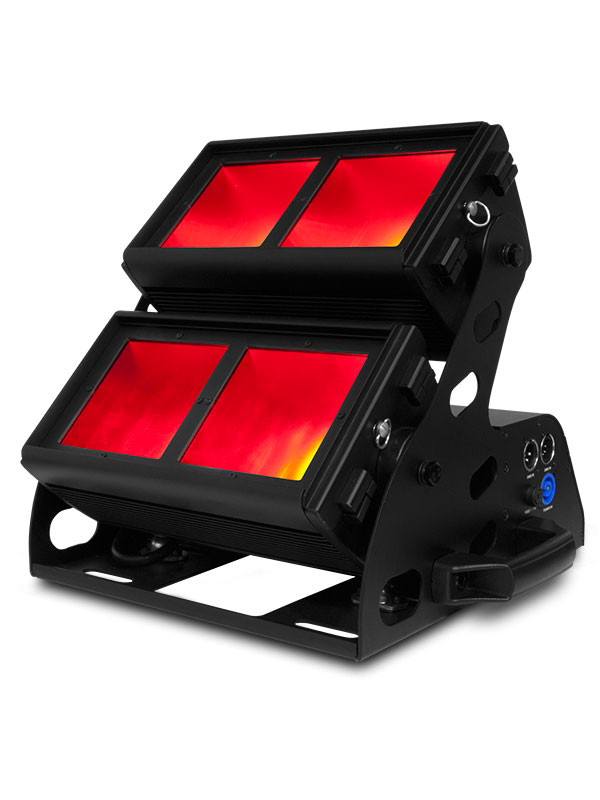

• Compact cyclorama wash lighting fixture
• Flat, even field of light with superior color mixing
• Virtual Color wheel with color matched to popular Rosco Gel colors
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Silent operation for use in studio and theatre applications
Optical• Light Source: 80 LEDs (20 red, 20 green, 20 blue, 12 amber, 8 lime) 2 to 4 W, (820 mA), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 10000 K
• CRI (3200 K): 80
• Beam Angle (Top Pod) (Horizontal): 41
• Beam Angle (Top Pod) (Vertical): 57
• Beam Angle (Bottom Pod) (Horizontal): 37
• Beam Angle (Bottom Pod) (Vertical): 54
• Beam Angle (Both Pods) (Horizontal): 40
• Beam Angle (Both Pods) (Vertical): 57
• Field Angle (Top Pod) (Horizontal): 64
• Field Angle (Top Pod) (Vertical): 80
• Field Angle (Bottom Pod) (Horizontal): 40
• Field Angle (Bottom Pod) (Vertical): 78
• Field Angle (Both Pods) (Horizontal): 67
• Field Angle (Both Pods) (Vertical): 81
• Lumens (Top Pod): 3,287
• Lumens (Bottom Pod): 2,850
• Lumens (Both Pods) : 5,587
• Illuminance (Top Pod): 175 lux @ 5 m
• Illuminance (Bottom Pod): 169 lux @ 5 m
• Illuminance (Both Pods): 310 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 2400 Hz, 6000 Hz, 18,000 Hz, 25,000Hz
Dynamic Effects• Tilt: 30 manual adjustment per pod
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 20Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: No
• Dim Modes: 5
• Built-in Automated Programs: Yes
• Customizable Programs: Yes
• Recall Custom Programs: Yes
Construction / Physical• Dimensions: 15.3 x 12.2 x 11.7 in (390 x 310 x 298 mm)
• Weight: 22 lb (10 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast
• Accessory Holder/Gel Frame Size: 5.32 x 9.65 in (135 x 245 mm)
Connections• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
Control• Control Protocol: DMX
• DMX Channels: 3, 4, 5, 6, 7, 8, 12, 18 or 24
• Modes/Personalities: 12 personalities (TOUR, TR16, ARC.1, AR1.D, ARC.2, ARC.3, ARC3.D, AR3.S, HSIC, PIXEL.1, PIXEL.3, PIXEL.16)
Electrical• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 10 units @ 120 V; 18 units @ 208 V; 20 units @ 230 V
• Power and Current: 151 W, 1.254 A @ 120 V, 60 Hz
• Power and Current: 151 W, 0.719 A @ 208 V, 60 Hz
• Power and Current: 152 W, 0.660 A @ 230 V, 50 Hz
Certifications / Qualifications•CE, MET
•IP Rating: IP20, dry location

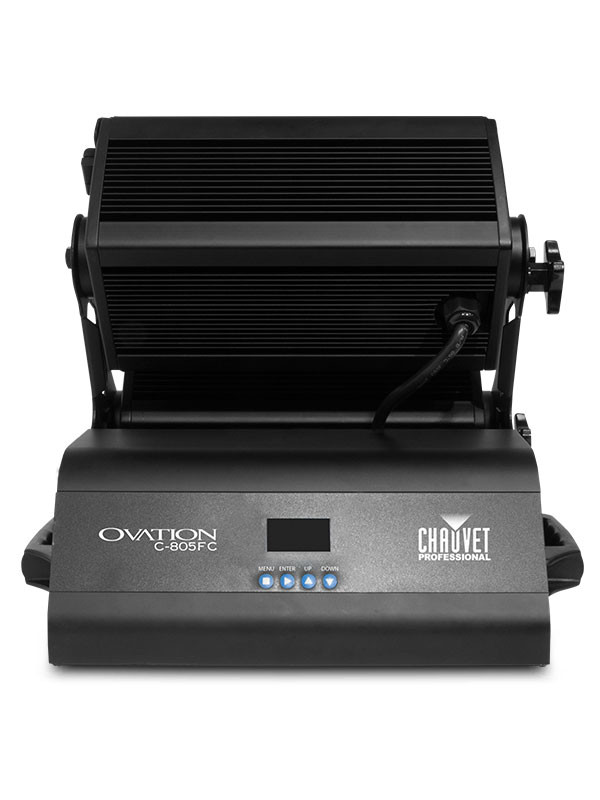

What's Included• OVATION C-805FC
• Neutrik powerCON power cord
• 2 Gel Frames 5.32 x 9.65 in (135 x 245 mm)
• 2 Omega brackets with mounting hardware
Optional Accessories• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik powerCON cables
• 3-pin or 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
