Light Engine Only - Requires a Lens Tube •
19 Lens Tube •
26 Lens Tube •
36 Lens Tube •
50 Lens Tube VIDEO

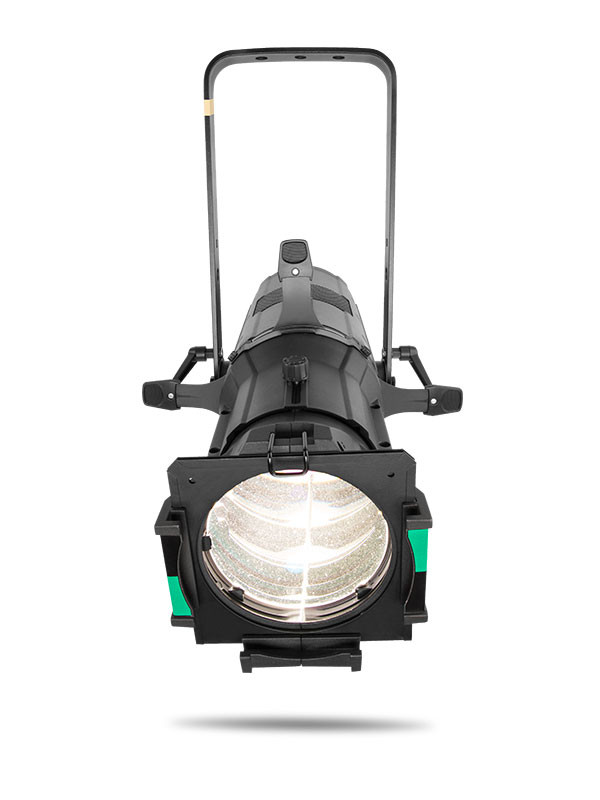

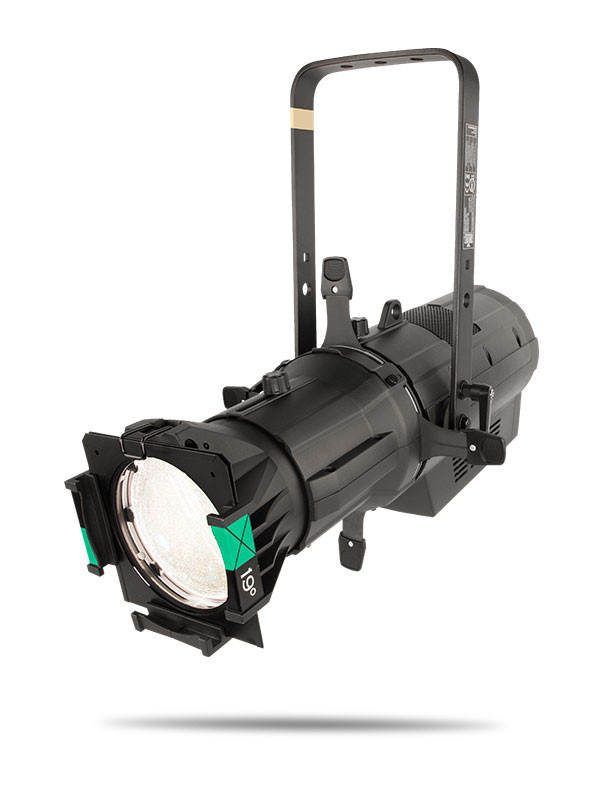

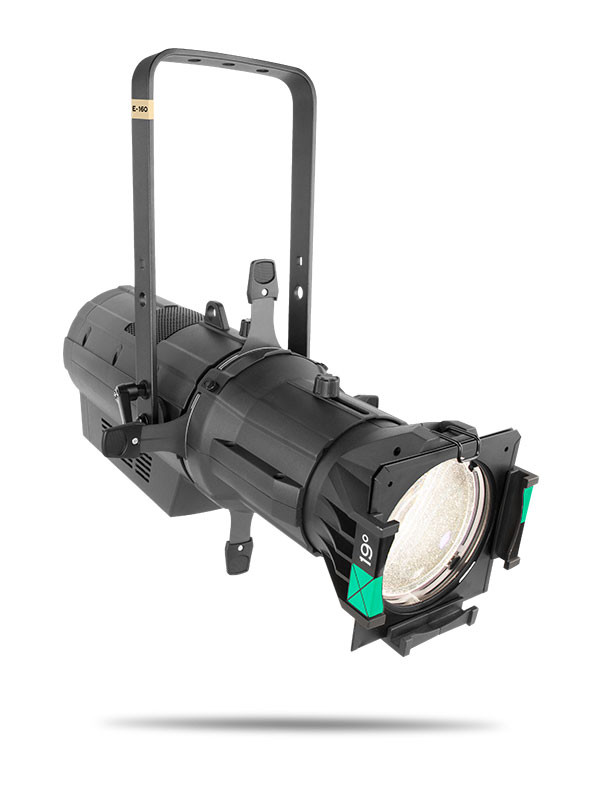

• Warm white ERS style fixture with output similar to a tungsten 575 W source
• Draws less than 100 W of power, a true electrical bill reducing fixture
• Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
• Flat, even field of light for superior gobo projection
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio and theater applications
Optical
•Light Source: 1 LED (WW) 88 W, (2.3 A), 3031 K, 50,000 hours life expectancy
•Color Temperature (at full): 3031 K
•CRI: 90
•Beam Angle (w/14 lens): 8
•Beam Angle (w/19 lens): 12
•Beam Angle (w/26 lens): 16
•Beam Angle (w/36 lens): 20
•Beam Angle (w/50 lens): 31
•Beam Angle (w/1530 lens)(Narrow): 10
•Beam Angle (w/1530 lens)(Wide): 15
•Beam Angle (w/2550 lens)(Narrow): 18
•Beam Angle (w/2550 lens)(Wide): 24
•Field Angle (w/14 lens): 14
•Field Angle (w/19 lens): 18
•Field Angle (w/26 lens): 25
•Field Angle (w/36 lens): 33
•Field Angle (w/50 lens): 50
•Field Angle (w/1530 lens)(Narrow): 16
•Field Angle (w/1530 lens)(Wide): 29
•Field Angle (w/2550 lens)(Narrow): 28
•Field Angle (w/2550 lens)(Wide): 48
•Dimming Modes: 4
•Illuminance (w/14 lens): 10,814 lux @ 5 m
•Illuminance (w/19 lens): 6,253 lux @ 5 m
•Illuminance (w/26 lens): 3,189 lux @ 5 m
•Illuminance (w/36 lens): 1,918 lux @ 5 m
•Illuminance (w/50 lens): 743 lux @ 5 m
•Illuminance (w/1530 lens)(Narrow): 11,201 lux @ 5 m
•Illuminance (w/1530 lens)(Wide): 3,739 lux @ 5 m
•Illuminance (w/2550 lens)(Narrow): 3,699 lux @ 5 m
•Illuminance (w/2550 lens)(Wide): 1,424 lux @ 5 m
•Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
•Dimmer: Electronic
•Shutter/Strobe: Electronic
•Zoom: Manual
•Strobe Rate: 0 to 29 Hz
•Color Temperature Presets: Yes
•Dim Modes: 4
Construction / Physical
•Dimensions (fixture only): 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)
•Dimensions (w/14 lens extended): 28.74 x 11.22 x 19.17 in (730 x 285 x 487 mm)
•Dimensions (w/26 lens extended): 25.91 x 11.22 x 19.17 in (658 x 285 x 487 mm)
•Dimensions (w/1530 lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
•Dimensions (w/2550 lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
•Weight (fixture only): 14.2 lb (6.4 kg)
•Weight (w/14 lens): 19.6 lb (8.89 kg)
•Weight (w/26 lens): 18.4 lb (8.3 kg)
•Weight (w/1530 lens): 28.2 lb (12.7 kg)
•Weight (w/2550 lens): 25.8 lb (11.7 kg)
•Exterior Color: Black
•Gobo Size (Optional): "A": 94 mm (outside), 79 mm (image), 2.5 mm (max. thickness)
•Gobo Size (Optional): "B": 94 mm (outside), 69 mm (image), 2.5 mm (max. thickness)
•Accessory Holder/Gel Frame Size (14 lens): 7.5 in (191 mm)
•Accessory Holder/Gel Frame Size (19, 26, 36, and 50 lens): 6.25 in (159 mm)
•Accessory Holder/Gel Frame Size (1530 lens): 7.5 in (191 mm)
•Accessory Holder/Gel Frame Size (2550 lens): 7.5 in (191 mm)

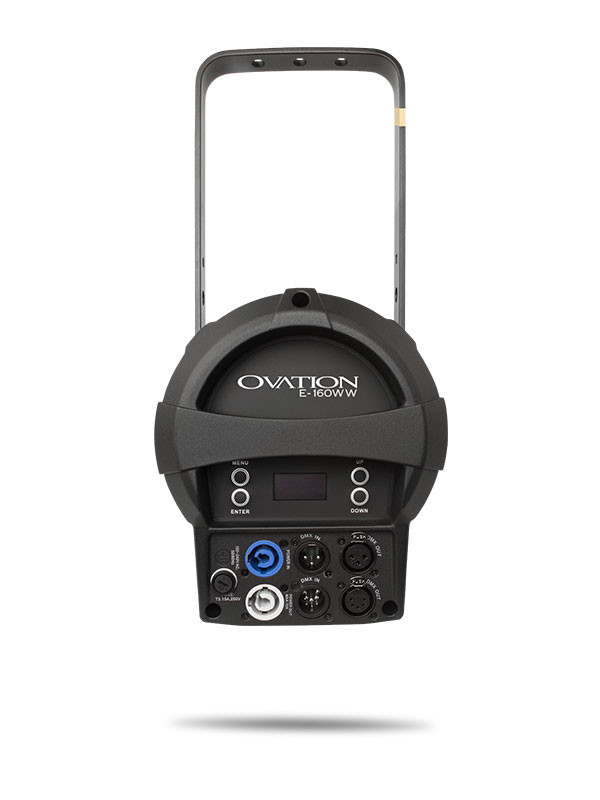

Connections
•Power Connection: Edison (Local) plug to Neutrik powerCON
•Power Input: Neutrik powerCON
•Power Output: Neutrik powerCON
•Data Connectors: 3- and 5-pin XLR
•Cable Length (power): 5 ft (1.5 m)
Control
•Control Protocol: DMX
•DMX Channels: 1, 2, 3 or 6
•Modes/Personalities: 4 personalities (1, 2, 3, 6)
Electrical
•Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
•Power Linking: 15 units @ 120 V; 26 units @ 208 V; 28 units @ 230 V
•Power and Current: 103 W, 0.9 A @ 120 V, 60 Hz
•Power and Current: 99 W, 0.5 A @ 208 V, 60 Hz
•Power and Current: 102 W, 0.5 A @ 230 V, 50 Hz
Certifications / Qualifications
•CE, MET
•IP Rating: IP20, dry location
What's Included
•Ovation E-160WW
•Neutrik powerCON power cord
Required Accessories
•Lens Tube: 19, 26, 36, 50
Optional Accessories
•Professional Clamps: CTC-50HC, CTC-50HCN
•Neutrik powerCON cables
•3-pin or 5-pin DMX Cables
•Color Blending Filters: DF60X1D, DF20D
•RDM2go
•Ovation Zoom Lenses: OEZOOM1530, OEZOOM2550
•Gobo Holder: Standard "S4" size Sandwich Style or Iris Slot Style gobo holder for "A" or "B" size gobos
