Light Engine Only - Requires a Lens Tube •
19 Lens Tube •
26 Lens Tube •
36 Lens Tube •
50 Lens Tube VIDEO
FEATURES: • Full Color LED (RGBAL) ERS-style lighting fixture for theatre, film and production
• Ultra smooth 16-bit dimming of master dimmer and individual colors
• Flat, even field of light with superior color mixing
• Virtual Color wheel with color matched to popular Rosco Gel colors
• Color Temperature Presets from 2800 K to 6500 K with high CRI & CQS
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio and theatre applications
• Works perfectly with industry standard lens tubes and accessories
Specifications Optical
• Light Source: 91 LEDs (18 red, 18 green, 19 blue, 18 amber, 18 lime green) 3 W, (1.4A), 5850 K, 50,000 hours life expectancy
• Color Temperature (at full): 5850K
• Beam Angle (w/14 lens): 11
• Beam Angle (w/19 lens): 19
• Beam Angle (w/26 lens): 24
• Beam Angle (w/36 lens): 28
• Beam Angle (w/50 lens): 41
• Beam Angle (w/1530 lens)(Narrow): 13
• Beam Angle (w/1530 lens)(Wide): 24
• Beam Angle (w/2550 lens)(Narrow): 23
• Beam Angle (w/2550 lens)(Wide): 36
• Field Angle (w/14 lens): 14
• Field Angle (w/19 lens):19
• Field Angle (w/26 lens): 26
• Field Angle (w/36 lens): 34
• Field Angle (w/50 lens): 51
• Field Angle (w/1530 lens)(Narrow): 15
• Field Angle (w/1530 lens)(Wide): 29
• Field Angle (w/2550 lens)(Narrow): 26
• Field Angle (w/2550 lens)(Wide): 50
• Dimming Modes: 9
• Lumens (w/14 lens):
• Lumens (w/19 lens): 3,236
• Lumens (w/26 lens): 4,316
• Lumens (w/36 lens): 3,918
• Lumens (w/50 lens): 3,813
• Illuminance (w/14 lens): 3,744 lux @ 5 m
• Illuminance (w/19 lens): 3,017 lux @ 5 m
• Illuminance (w/26 lens): 1,894 lux @ 5 m
• Illuminance (w/36 lens): 1,137 lux @ 5 m
• Illuminance (w/50 lens): 513 lux @ 5 m
• Illuminance (w/1530 lens)(Narrow): 3,784 lux @ 5 m
• Illuminance (w/1530 lens)(Wide): 1,223 lux @ 5 m
• Illuminance (w/2550 lens)(Narrow): 1,657 lux @ 5 m
• Illuminance (w/2550 lens)(Wide): 647 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25,000 Hz
Dynamic Effects
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Focus: Manual
• Strobe Rate: 0 to 28 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes
Construction / Physical
• Dimensions (fixture only): 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)
• Dimensions (w/14 lens extended): 28.74 x 11.22 x 19.17 in (730 x 285 x 487 mm)
• Dimensions (w/26 lens extended): 25.91 x 11.22 x 19.17 in (658 x 285 x 487 mm)
• Dimensions (w/1530 lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
• Dimensions (w/2550 lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
• Weight (fixture only): 15.4 lb (7.1 kg)
• Weight (w/14 lens): 20.8 lb (9.43 kg)
• Weight (w/26 lens): 19.8 lb (9 kg)
• Weight (w/1530 lens): 29.4 lb (13.3 kg)
• Weight (w/2550 lens): 27 lb (12.2 kg)
• Exterior Color: Black
• Gobo Size (Optional): "A": 94 mm (outside), 79 mm (image), 2.5 mm (max. thickness)
• Gobo Size (Optional): "B": 94 mm (outside), 69 mm (image), 2.5 mm (max. thickness)
• Accessory Holder/Gel Frame Size (19, 26, 36, and 50 lens): 6.25 in (159 mm)
• Accessory Holder/Gel Frame Size (1530 lens): 7.5 in (191 mm)
• Accessory Holder/Gel Frame Size (2550 lens): 7.5 in (191 mm)
Connections
• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
Control
• Protocol(s): DMX, RDM
• DMX Channels: 3, 5, 7, 10, 12, 13 or 15
• Modes/Personalities: 7 personalities (3, 5, 7, 10, 12, 13, 15)
Electrical
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 6 units @ 120 V; 11units @ 208 V; 12 units @ 230 V
• Power and Current: 240 W, 2.006 A @ 120 V, 60 Hz
• Power and Current: 234 W, 1.160 A @ 208 V, 60 Hz
• Power and Current: 234 W, 1.074 A @ 230 V, 50 Hz
Certifications / Qualifications
• CE, MET
• IP Rating: IP20, dry location
What's Included

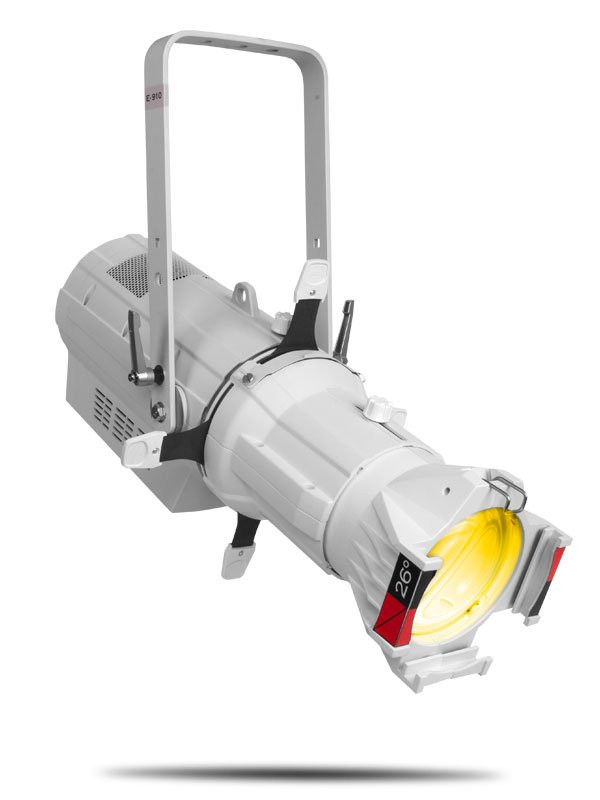

• OVATION E-910FC
• Neutrik powerCON power cord
Optional Accessories
• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik powerCON cables
• 3-pin or 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
• Ovation Zoom Lenses: OEZOOM1530, OEZOOM2550
• Gobo Holder: Standard "S4" size Sandwich Style or Iris Slot Style gobo holder for "A" or "B" size gobos
Required Accessories
• Lens Tube: 19, 26, 36, 50
