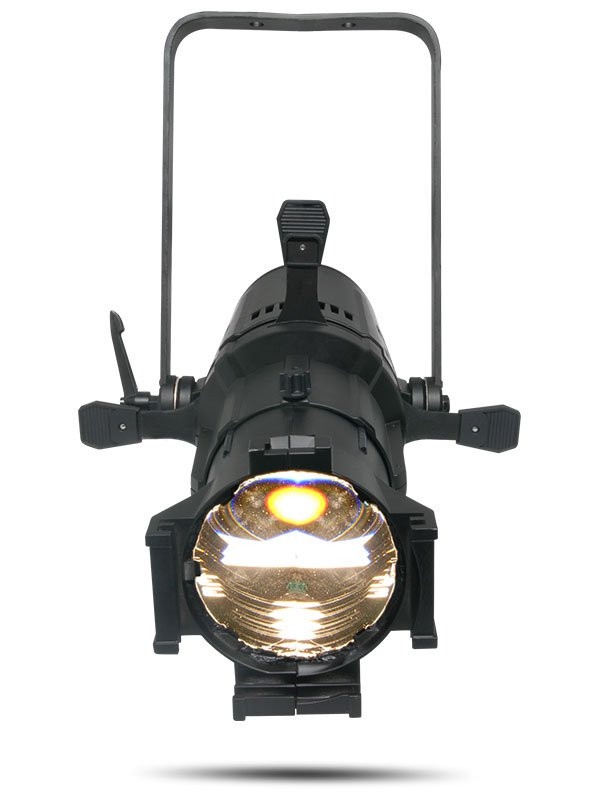

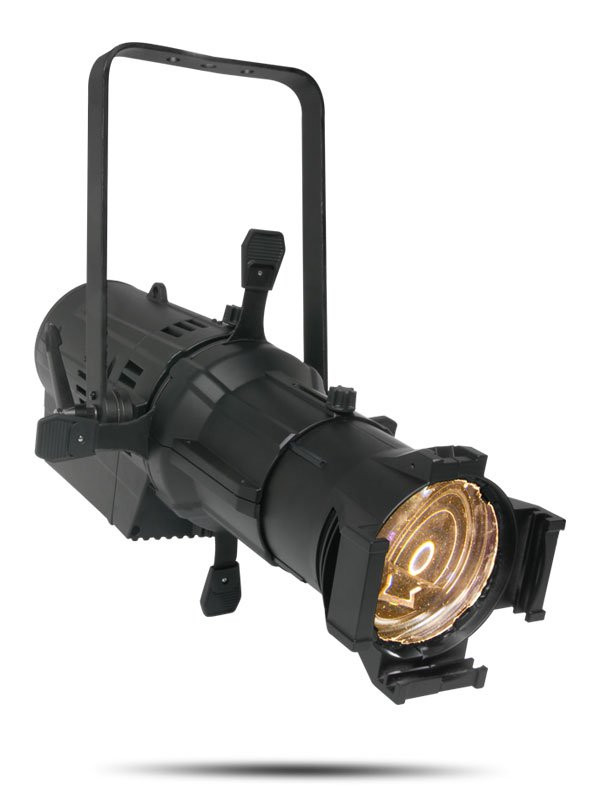

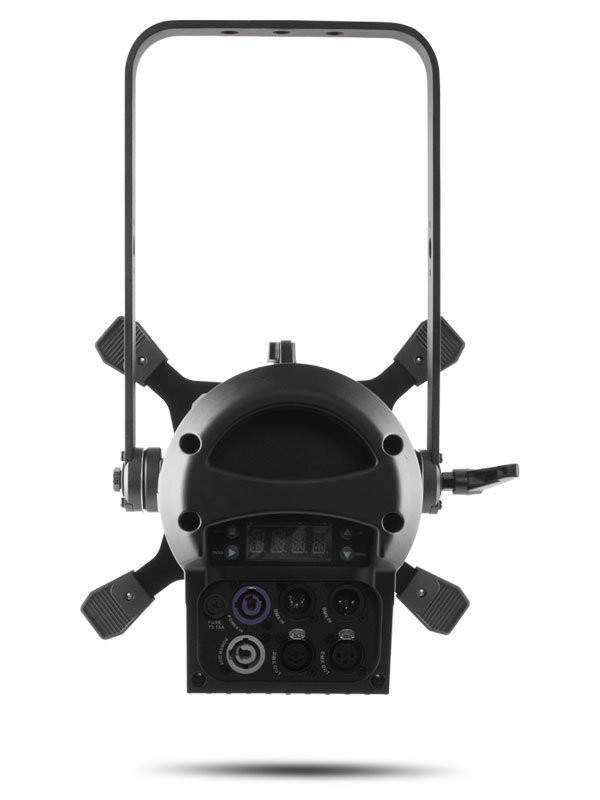

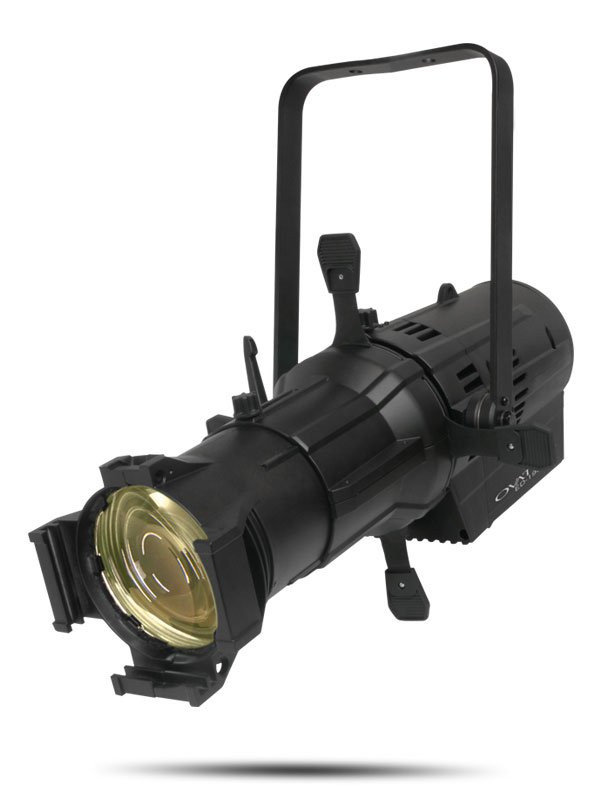

Chauvet Professional OVATION ED-190WW LED Ellipsoidal Light Engine Only

Dropships Ships Directly From The Supplier
Chauvet Professional can usually ship this item directly to our U.S. customers after 1 to 3 business days processing time, depending upon their stock levels. Order now! We'll notify you promptly if we hear of any delay.
Free Shipping FREE Ground Shipping to the contiguous U.S. (details)
$1,179.99
As low as $25/month
    • BONUS! Buy Now and Earn 2359 PDJ Bucks ($23.59)! MUST Be Logged In! Domestic U.S. customers only. Exact value may vary once logged in.
LENS IN PICTURE IS NOT INCLUDED WITH THIS LISTING. LIGHT ENGINE ONLY Ovation' ED-190WW ellipsoidal spot is a trailblazer, the first high-power LED based fixture that makes it possible to retrofit lamp-based ellipsoidals without scratching off costly investment in dimming systems. Ovation' ED-190WW is equally efficient running on constant power and DMX (as LED fixtures typically do) as it is when connected directly to a dimming power source. Advanced onboard electronics automatically detect what type of power and data the fixture receives and it responds accordingly. It performs as well as the original Ovation' E-190WW with the same output and tremendous dimming performance. Now everyone can enjoy the benefits of LED lighting without being held back by previous investments made in major dimming systems.



Features
• Works perfectly on conventional dimmers or constant power with DMX
• Auto-senses what kind of system (conventional dimmers or constant power with DMX) and responds appropriately
• Superior low end dimming whether using dimmers or constant power
• Perfect fixture for the retrofit market, utilizes existing infrastructure flawlessly
• Accessory slot for motorized gobo devices and iris units
• 16-bit dimming resolution for smooth fades
• Flat, even field of light
• Increase mounting options by safely mounting to truss using the built-in bolts
• Comes with standard pattern slot for glass or steel patterns and soft focus diffuser
• Virtually silent operation for use in any situation
• Works perfectly with industry standard lens tubes
• Simple and complex DMX channel profiles for programming versatility
• Warm white ERS-style lighting fixture

Specifications
• Control Protocol: Dimmer, DMX
• DMX Channels: 1, 2 or 3
• Data Connectors: 3- and 5-pin XLR
• Light Source: 19 LEDs (WW) 10 W, (2.8 A), 100,000 hours life expectancy
• Gobo Size (Optional): Gobo holder size A: 94 mm (outside), 79 mm (image), 2.5 mm (max. thickness)
• Gobo Size (Optional): Gobo holder size B: 94 mm (outside), 69 mm (image), 2.5 mm (max. thickness)
• Dimmer: Electronic or External Dimmer Rack
• Focus: Manual
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 20 Hz
• PWM Frequency: 600 Hz
• Dimming Modes: 9
• Color Temperature (at full): 3076 K
• Max. Noise Level (studio): 44 dB @ 12 in (305 mm)
• Max. Noise Level (power): 51 dB @ 12 in (305 mm)
• Max. Noise Level (live): 44 dB @ 12 in (305 mm)
• IP Rating: IP20, dry location
• Cable Length: 5 ft (1.5 m)
• Power Connection: Edison plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Power Linking: 4 units @ 120 V; 8 units @ 230 V
• Input Voltage: 120/230 VAC, 50/60 Hz (switchable)
• Power and Current: 208 W, 1.7 A @ 120 V, 60 Hz
• Power and Current: 200 W, 0.9 A @ 230 V, 50 Hz
• Weight (fixture only): 16.4 lb (7.44 kg)
• Dimensions (fixture only): 21.5 x 15 x 15 in (545 x 380 x 380 mm)
• Approvals: CE

Additional Information

UPC781462213084
SKUOVATIONED190WW
ManufacturerChauvet Professional
Product ConditionNew
ReturnableYes
