Light Engine Only - Requires a Lens Tube•
19 Lens Tube•
26 Lens Tube•
36 Lens Tube•

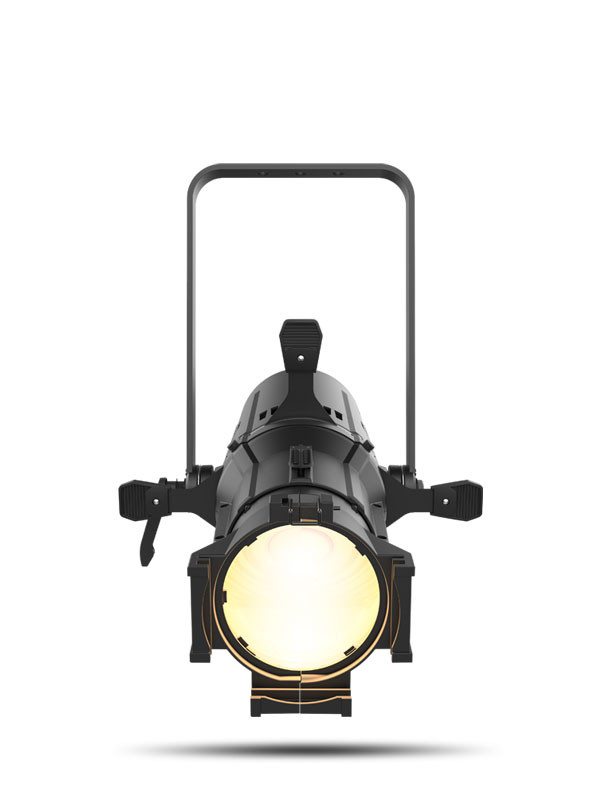

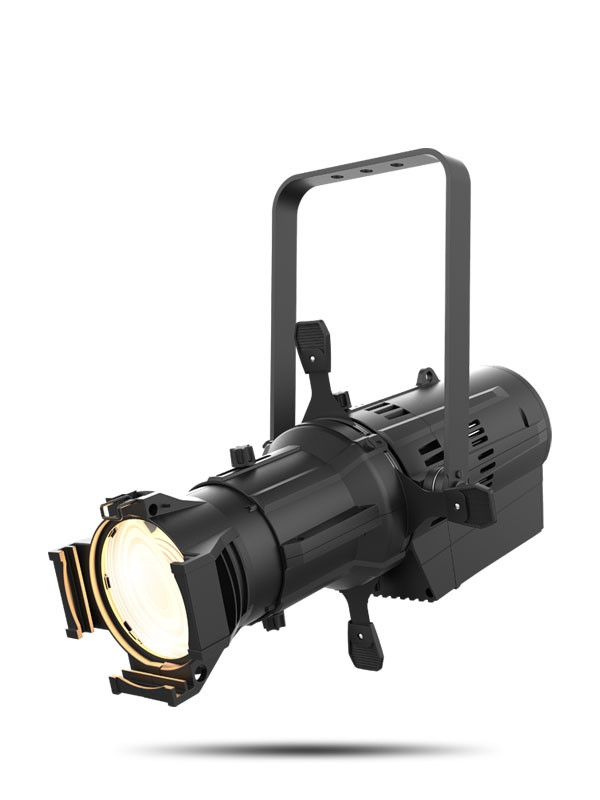

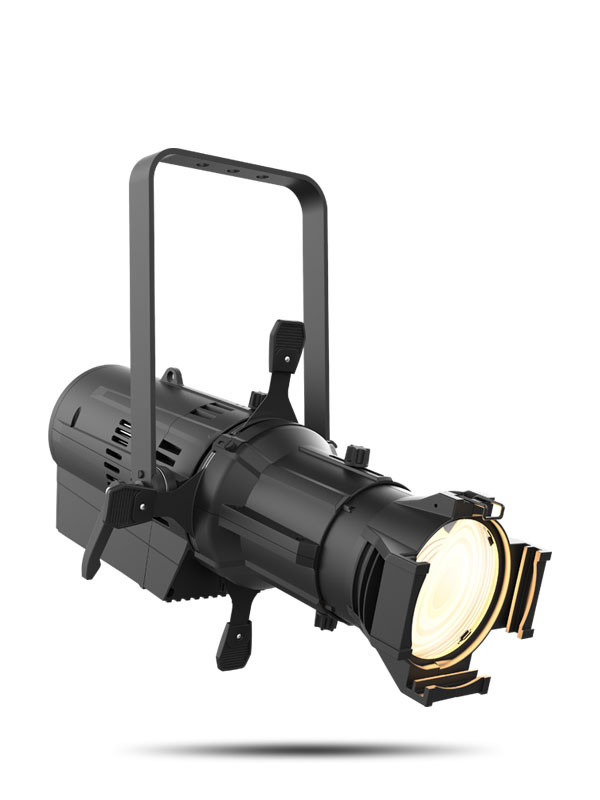

50 Lens Tube• Warm white ERS style fixture with output exceeding a tungsten 750 W source
• Works on conventional dimmers or constant power with DMX
• Auto-senses power/data and responds appropriately
• Superior low end dimming whether using dimmers or constant power
• Perfect fixture for the retrofit market, utilizes existing dimming infrastructure flawlessly
• 16-bit dimming resolution (DMX mode) for smooth fades
• Flat, even field of light for superior gobo projection
• Works perfectly with industry standard lens tubes and accessories
• Virtually silent operation for use in any situation
Optical Light Source: 1 LEDs (WW) 230 W, (3.4 A), 100,000 hours life expectancy
Color Temperature (at full): 3334 K
CRI: 97
Beam Angle (w/14 lens): 11
Beam Angle (w/19 lens): 15
Beam Angle (w/26 lens): 19
Beam Angle (w/36 lens): 25
Beam Angle (w/50 lens): 35
Beam Angle (w/1530 lens)(Narrow): 11
Beam Angle (w/1530 lens)(Wide): 17
Beam Angle (w/2550 lens)(Narrow): 19
Beam Angle (w/2550 lens)(Wide): 30
Field Angle (w/14 lens): 14
Field Angle (w/19 lens):17
Field Angle (w/26 lens): 25
Field Angle (w/36 lens): 33
Field Angle (w/50 lens): 50
Field Angle (w/1530 lens)(Narrow): 13
Field Angle (w/1530 lens)(Wide): 28
Field Angle (w/2550 lens)(Narrow): 23
Field Angle (w/2550 lens)(Wide): 41
Lumens (w/19 lens): 11,534
Lumens (w/26 lens): 13,224
Lumens (w/36 lens): 13,946
Lumens (w/50 lens): 12,754
Lumens (w/15-30 lens): 11,739 (@15), 11,315 (@30)
Lumens (w/25-50 lens): 14,243 (@25), 12,834 (@50)
Illuminance (w/14 lens): 15,092 lux @ 5 m
Illuminance (w/19 lens): 9,118 lux @ 5 m
Illuminance (w/26 lens): 6,028 lux @ 5 m
Illuminance (w/36 lens): 3,210 lux @ 5 m
Illuminance (w/50 lens): 1,445 lux @ 5 m
Illuminance (w/1530 lens)(Narrow): 15,879 lux @ 5 m
Illuminance (w/1530 lens)(Narrow): 15,879 lux @ 5 m
Illuminance (w/2550 lens)(Narrow): 5,958 lux @ 5 m
Illuminance (w/2550 lens)(Wide): 2,283lux @ 5 m
PWM Frequency: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25,000 Hz
Dynamic Effects Dimmer: Electronic or External Dimmer Rack
Shutter/Strobe: Electronic
Focus: Manual
Strobe Rate: 0 to 18 Hz
Dim Modes: 5
Dim Curves: 4
Construction / Physical Dimensions: (fixture only): 21.5 x 15 x 15 in (545 x 380 x 380 mm)
Dimensions: (w/26 lens extended): 26.5 x 15 x 15 in (673 x 380 x 380 mm)
Dimensions: (w/1530 lens): 42 x 14.6 x 14.6 in (1,068 x 371 x 371 mm)
Dimensions: (w/2550 lens): 36.3 x 14.6 x 14.6 in (923 x 371 x 371 mm)
Weight (fixture only): 17.6 lb (7.9 kg)
Weight (w/14 lens): 23 lb (10.4 kg)
Weight (w/26 lens): 21.6 lb (9.8 kg)
Weight (w/1530 lens): 30.2 lb (13.6 kg)
Weight (w/2550 lens): 27.2 lb (12.3 kg)
Exterior Color: Black
Gobo Size (Optional): "A": 94 mm (outside), 79 mm (image), 2.5 mm (max. thickness)
Gobo Size (Optional): "B": 94 mm (outside), 69 mm (image), 2.5 mm (max. thickness)
Accessory Holder/Gel Frame Size (14 lens): 7.5 in (191 mm)
Accessory Holder/Gel Frame Size (19, 26, 36, and 50 lens): 6.25 in (159 mm)
Accessory Holder/Gel Frame Size (1530 lens): 7.5 in (191 mm)
Accessory Holder/Gel Frame Size (2550 lens): 7.5 in (191 mm)

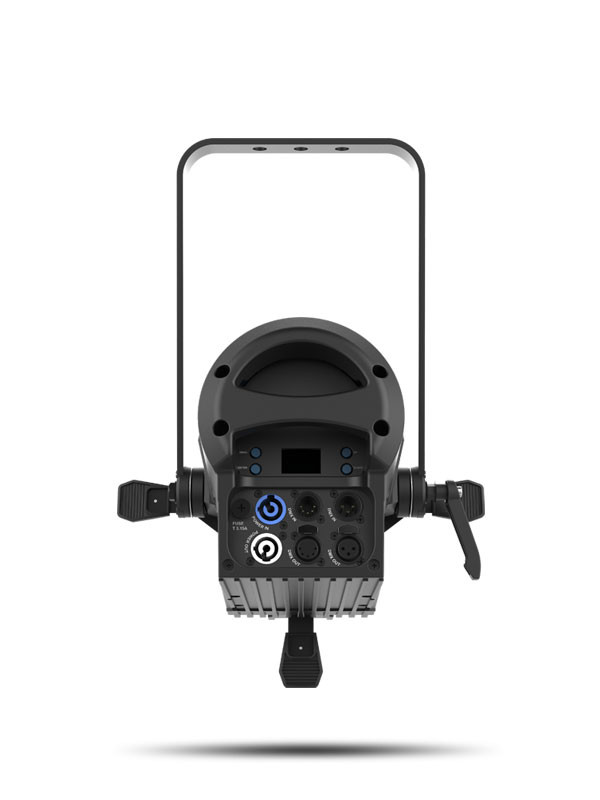

Connections Power Connection: Edison plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Control Control Protocol: DMX, RDM, Dimmer
DMX Channels: 1, 2 or 3
Modes/Personalities: 3 personalities (UNO, DOS, STD.P)
Electrical Input Voltage: 120/230 VAC, 50/60 Hz (switchable)
Power Linking: 6 units @ 120 V; 12 units @ 230 V
Power and Current: 250 W, 2.074 A @ 120 V, 60 Hz
Power and Current: 254 W, 1.103 A @ 230 V, 50 Hz
Certifications / Qualifications CE, MET
IP Rating: IP20, dry location
What's Included Ovation ED-200WW
Neutrik powerCON power cord
Required Accessories Lens Tube: 14, 19, 26, 36, 50
Optional Accessories Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik powerCON cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation Zoom Lenses: OEZOOM1530, OEZOOM2550
Gobo Holder: Standard "S4" size Sandwich Style or Iris Slot Style gobo holder for "A" or "B" size gobos
