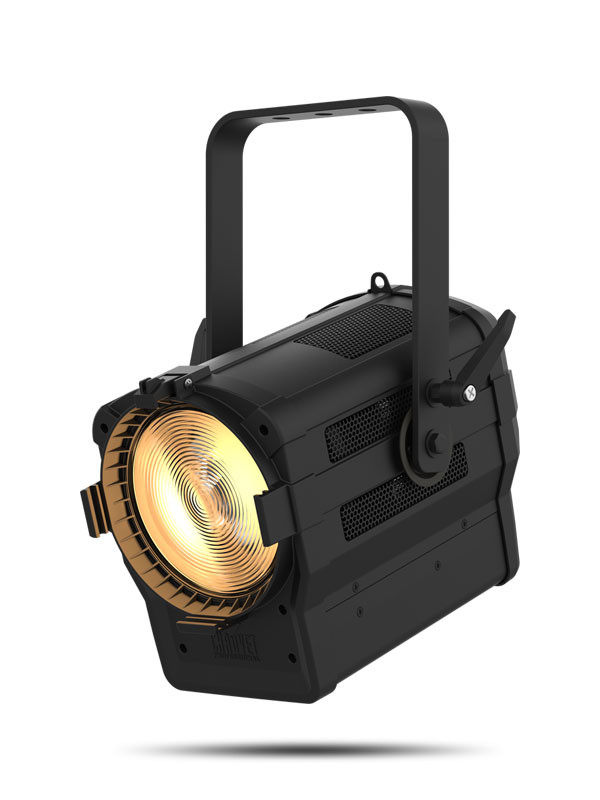

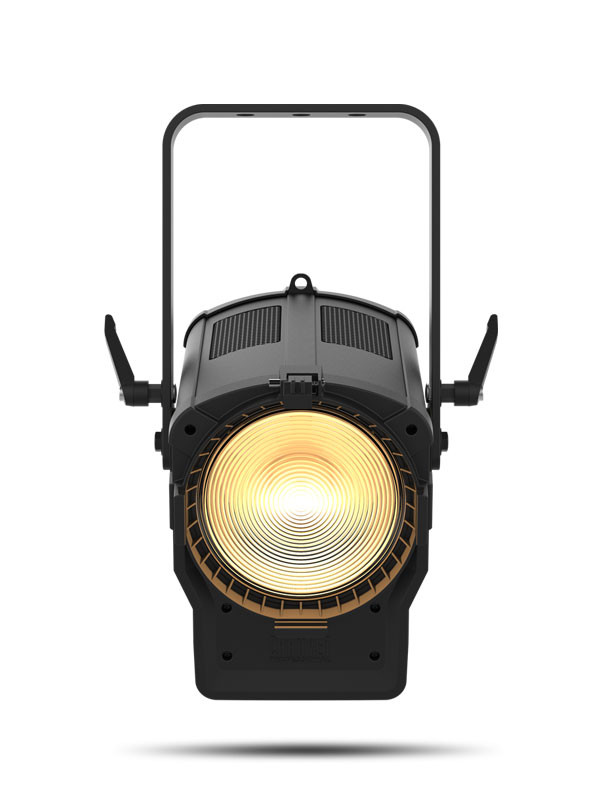

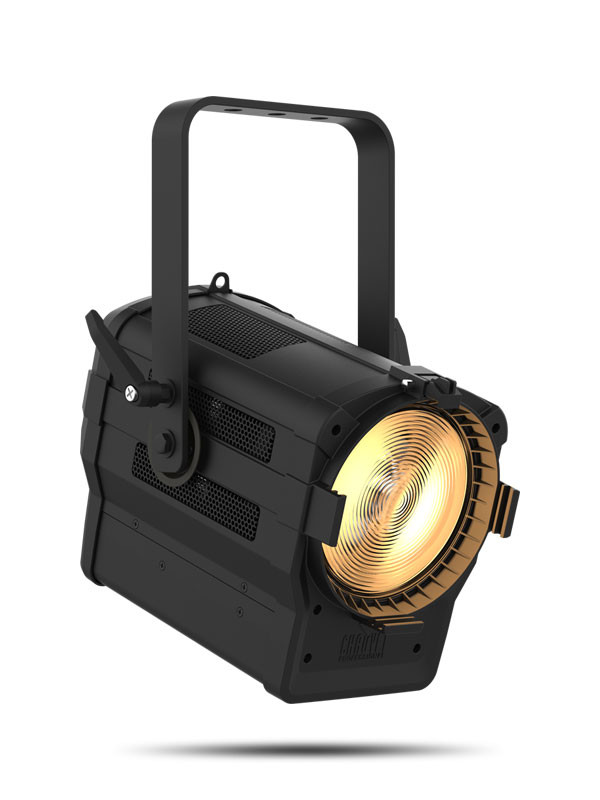

Chauvet Professional Ovation F-145WW Wash Light

• Warm white Fresnel with output comparable to a 6", 650 W Fresnel
• Soft and even field of light
• 16-bit dimming resolution for smooth fades
• Virtually silent operation for use in any situation
• Motorized zoom angle between 25 to 65, manually or via DMX

Optical
Light Source: 1 LED (WW) 70 W, (3.6 A), 50,000 hours life expectancy
Color Temperature (at full): 3096 K
CRI: 97
Beam Angle: 16 to 48
Field Angle: 25 to 65
Zoom Angle: 25 to 65
Lumens (25): 2,787
Lumens (65): 4,266
Illuminance (25): 1,290 lux @ 5 m
Illuminance (65): 252 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 30 Hz
Dim Modes: 4

Construction / Physical
Dimensions: 11.69 x 11.22 x 15.03 in (297 x 285 x 382 mm)
Weight: 11 lb (5 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast
Accessory Holder/Gel Frame Size: 6.25 in (158.75 mm)

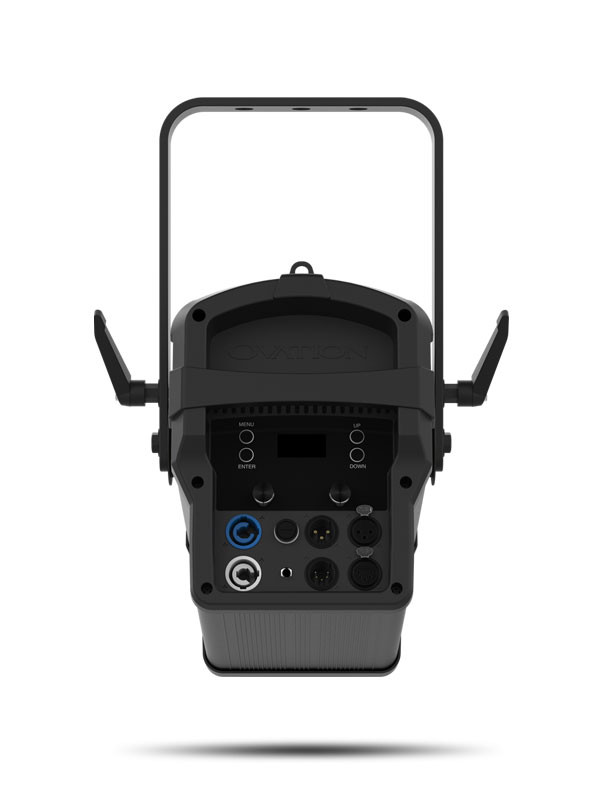

Connections
Power Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Control
Protocol(s): DMX, RDM
DMX Channels: 1, 2, 2 or 5
Modes/Personalities: 4 personalities (1, 2, 2, 5)

Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 19 units @ 120 V; 34 units @ 208 V; 38 units @ 230 V
Power and Current: 84 W, 0.70 A @ 120 V, 60 Hz
Power and Current: 81 W, 0.40 A @ 208 V, 60 Hz
Power and Current: 81 W, 0.36 A @ 230 V, 50 Hz

Certifications / Qualifications
CE, MET
IP Rating: IP20, dry location
Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)

What's Included
Ovation F-145WW
Neutrik powerCON power cord
Gel Frame

Optional Accessories
Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik powerCON cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation F6.25" Barndoor
