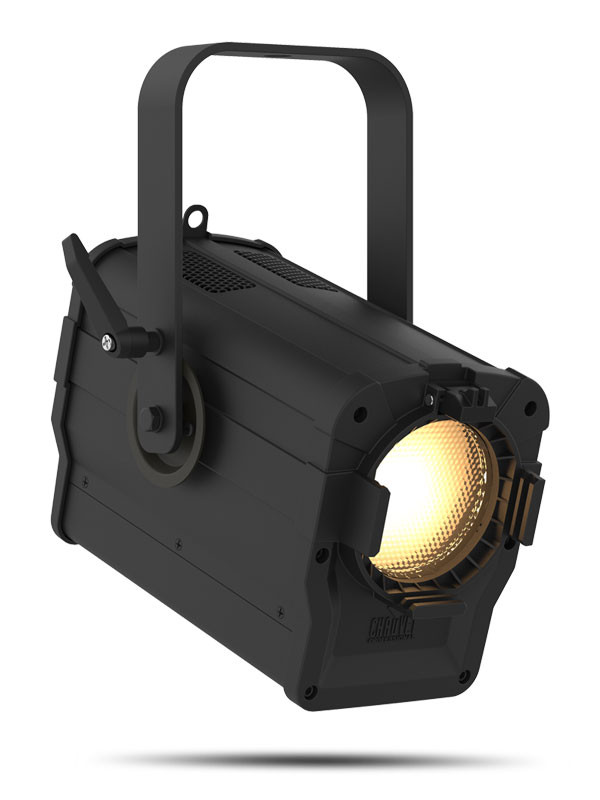

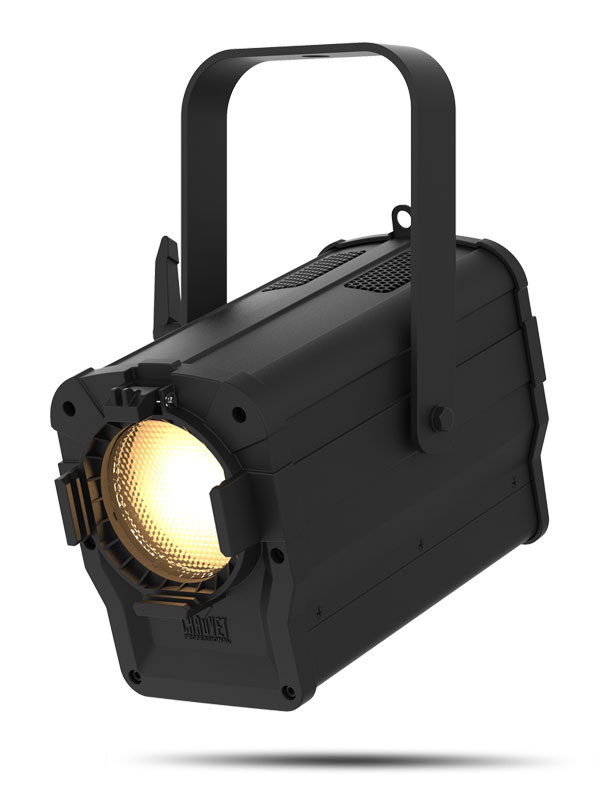

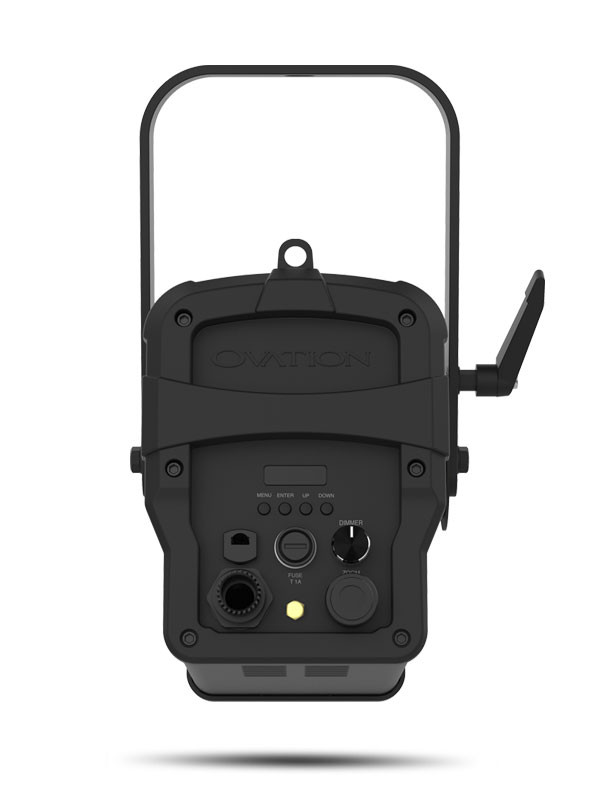

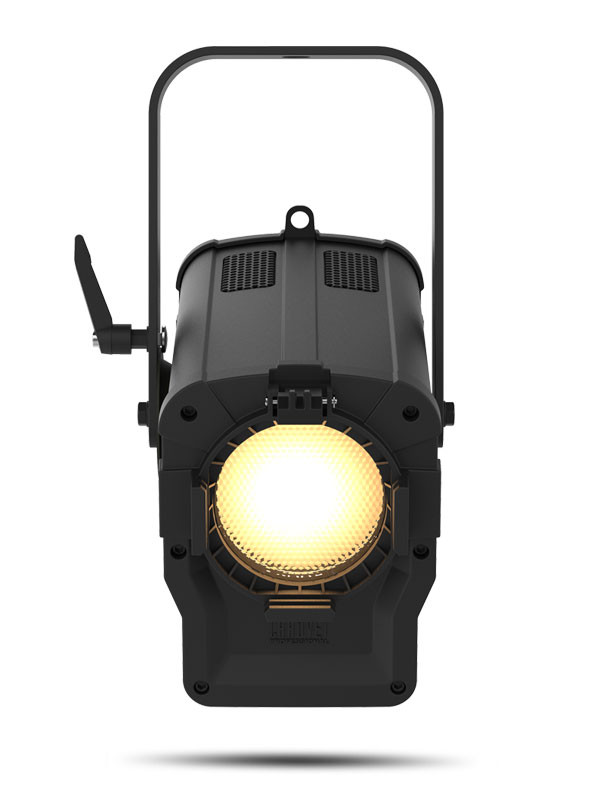

Chauvet Professional Ovation F-55WW Fresnel

• Compact warm white Fresnel for tight spaces and on-location lighting
• Soft and even field of light
• 16-bit dimming resolution for smooth fades
• Virtually silent operation for use in any situation
• Manually controlled variable zoom range between 20 to 75

Optical
• Light Source: 1 LED (WW) 36 W, (740 mA), 3120 K, 50,000 hours life expectancy
• Color Temperature (at full): 3120 K
• CRI: 92.5
• Beam Angle: 20.1 to 61.4
• Field Angle: 31.5 to 75.1
• Zoom Range: 20 to 75
• Lumens (31.5): 959
• Lumens (75.1): 2,243
• Illuminance (31.5) : 313 lux @ 5 m
• Illuminance (75.1): 97 lux @ 5 m

Dynamic Effects
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Manual
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: No
• Color Temperature Presets: No
• Dim Modes: 4
• Dim Curves: 4
• Built-in Automated Programs: No
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 25,000 Hz

Construction / Physical
• Dimensions: 10.87 x 6.81 x 6.53 in (276.3 x 173 x 166 mm)
• Weight: 4.8 lb (2.2 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast
• Accessory Holder/Gel Frame Size: 3.25 in (83 mm)

Connections
• Power Connection: Edison plug to hard-wired
• Power Input: Hard-wired
• Data Connectors: 5-pin XLR
• Cable Length (signal): 1.79 ft (0.54 m)
• Cable Length (power): 3.5 ft (1.07 m)

Control
• Control Protocol: DMX, RDM
• DMX Channels: 1, 2 or 5
• Modes/Personalities: 3 personalities (1CH, 2CH, 5CH)

Electrical
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 32 W, 0.262 A @ 120 V, 60 Hz
• Power and Current: 36 W, 0.171 A @ 208 V, 60 Hz
• Power and Current: 40 W, 0.154 A @ 230 V, 50 Hz

Certifications / Qualifications
• CE, MET
• IP Rating: IP20, dry location

What's Included
• Ovation F-55ww
• Gel Frame

Optional Accessories
• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik powerCON cables
• 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
• Ovation F3.25" Barndoor
