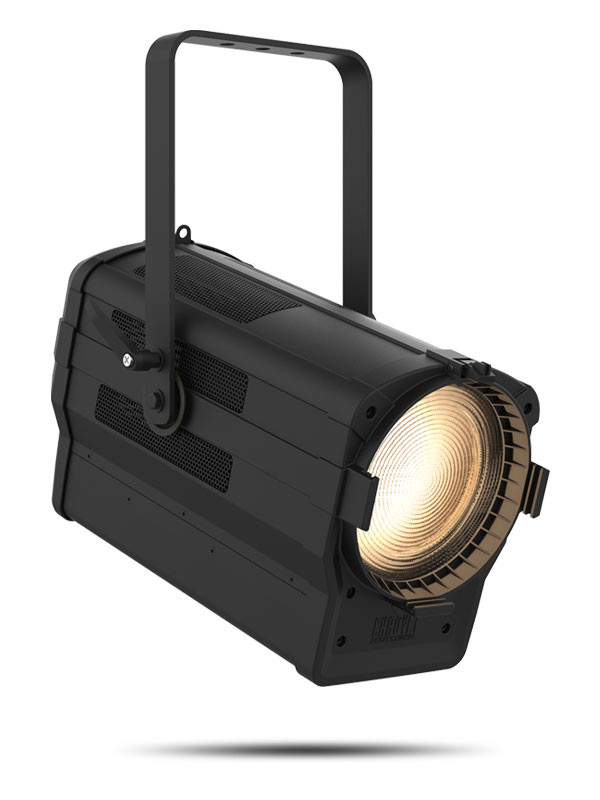

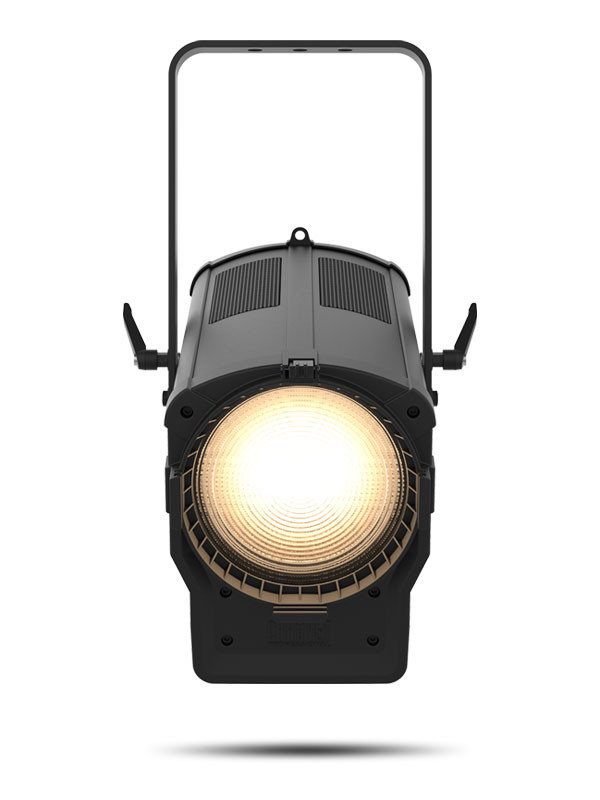

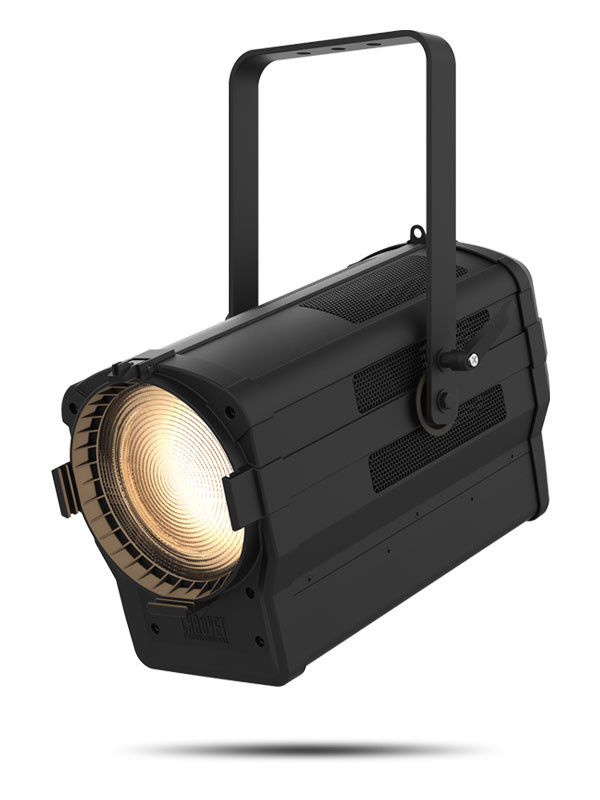

• Variable white LED Fresnel lighting fixture for theatre, film and production
• Soft and even field of light
• Smooth, motorized zoom from 17 to 85 beam range
• Color Temperature Presets from 2800 K to 8000 K with high CRI and CQS
• Beautiful 16-bit dimming
• Proprietary LED engine delivers tremendous, equal output at all color temperatures

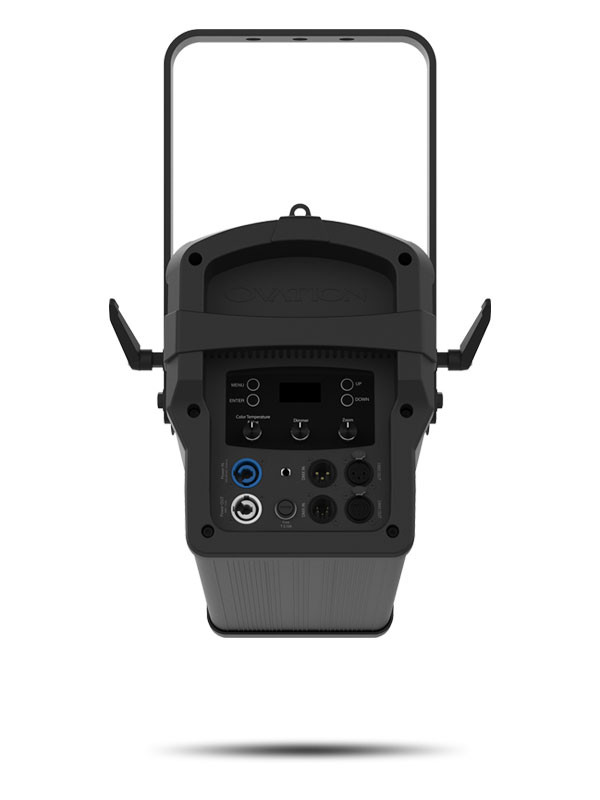

• Easy to use on board control of color temperature, zoom and dimming
• +/- Green adjustment via DMX or on-board control
• Independent color control over the 6-color engine when a splash of color is needed
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio and theatre applications
Optical• Light Source: 89 LEDs (6 red, 15 orange-red, 8 green, 12 blue, 16 royal blue, 32 lime) 3 W, (960 mA), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 8000 K
• CRI: 88-92
• Beam Angle: 17 to 54
• Field Angle: 30 to 85
• Zoom Range: 17 to 85
• Lumens (30): 4,143
• Lumens (85): 6,792
• Illuminance (30): 1,748 lux @ 5 m
• Illuminance (85): 414 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Dynamic Effects• Dimmer: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 27 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: No
Construction / Physical• Dimensions: 22.41 x 12.59 x 10.82in (569.44 x 320 x 275 mm)
• Weight: 18.6 lb (8.5 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, Aluminum die-cast
Connections• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
Control• Control Protocol: DMX, RDM
• DMX Channels: 1, 4, 6, 7, 9, 13, 16 or 18
• Modes/Personalities: 8 personalities (1, 4, 6, 7, 9, 13, 16, 18)
Electrical• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 7 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V
• Power and Current: 216 W, 1.8 A @ 120 V, 60 Hz (7 A inrush)
• Power and Current: 220 W, 1.1 A @ 208 V, 60 Hz (7 A inrush)
• Power and Current: 223 W, 1 A @ 230 V, 50 Hz (7.8 A inrush)
• Power and Current (resting): 6 W, 0.050 A @ 120 V, 60 Hz
• Power and Current (resting): 11 W, 0.054 A @ 208 V, 60 Hz
• Power and Current (resting): 9 W, 0.036 A @ 230 V, 50 Hz
Certifications / Qualifications• CE, MET, FCC
• IP Rating: IP20, dry location
• Temperature (startup): -4 F to 113 F (-20 C to 45 C)
• Temperature (operating): -22 F to 113 F (-30 C to 45 C)
What's Included• Ovation F-915VW
• Neutrik powerCON power cord
• Gel frame (7.5 in/191 mm accessories)
Optional Accessories• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik powerCON cables
• 3-pin or 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
• Ovation F 7.5" Barndoor V2
