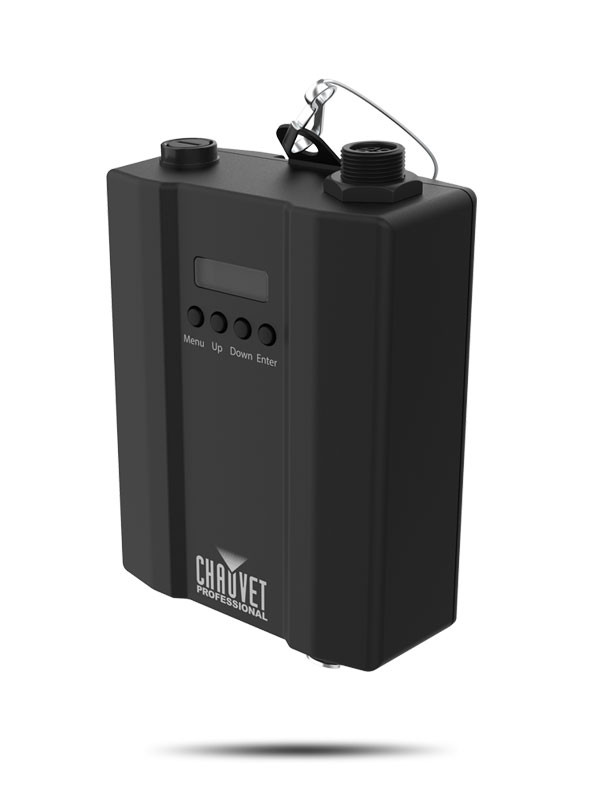

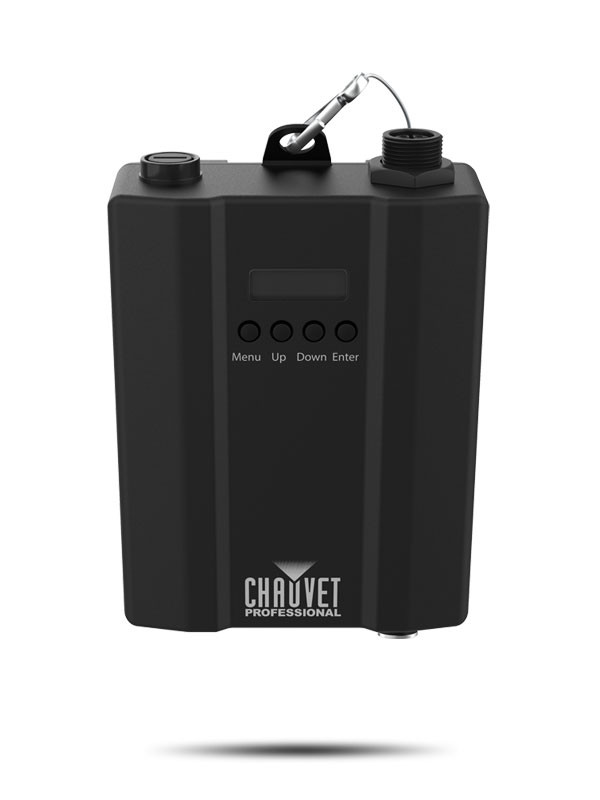

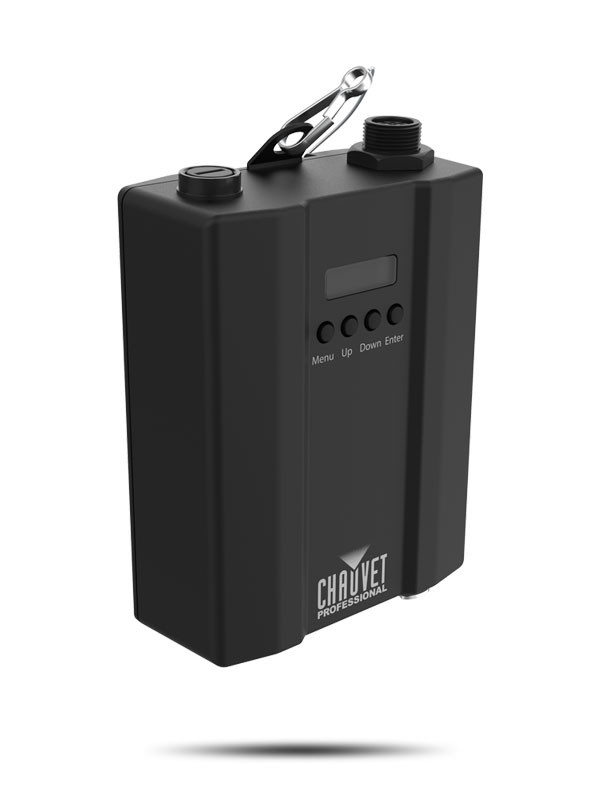

Chauvet Professional Ovation GR-1 Gobo Rotator Adapter

• Power and data interface to adapt Ovation GR-1IP to any ERS-style fixtur
• Utilize power from powerCON output of the ERS-style fixture

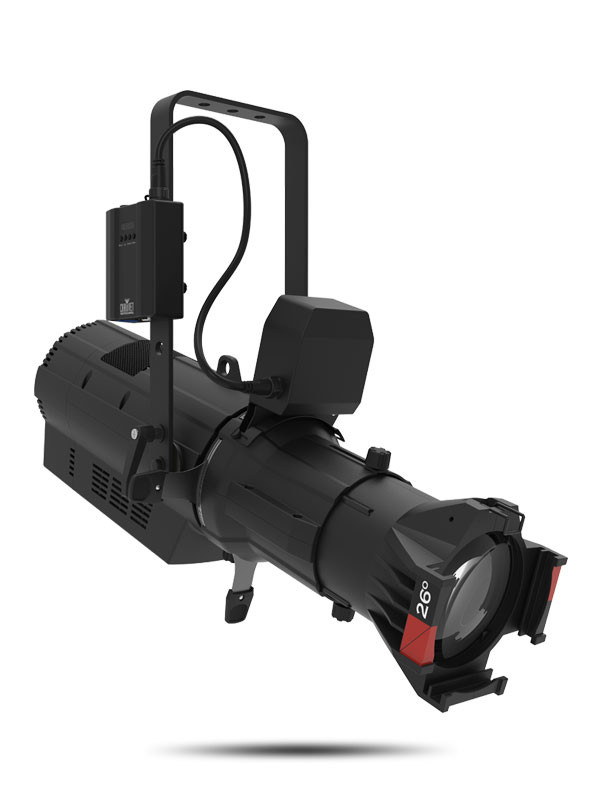

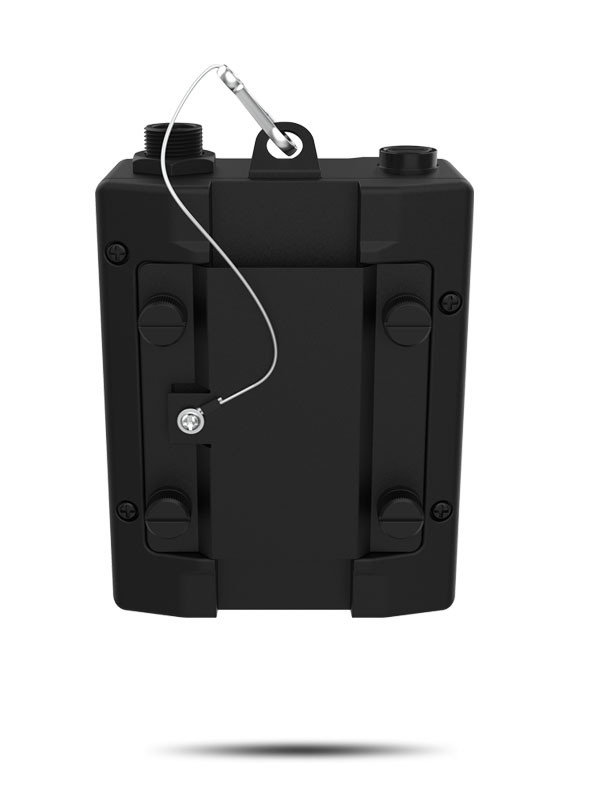

• Easily secure to the yoke of the ERS-style fixture
• On-board display for simple manual operation or DMX addressing
• 5-pin DMX in and thru for easy control from your console
• Requires Ovation GR-1 IP for operation (sold separately)

Dynamic Effects
• Gobos size: B (metal, glass or effect)
• Effects: CW or CCW Rotation, indexing, infinite rotation at variable speeds
• Speed Range: 0.047 21 RPM (17 - 7,560 per minute)

Construction / Physical
• Dimensions: 3.7 x 2.1 x 5.3 in ( 95 x 53.1 x 135.7 mm)
• Weight: 0.6 lb (0.3 kg)
• Exterior Color: Black
• Housing Material: High-impact, flame retardant polymer, Steel

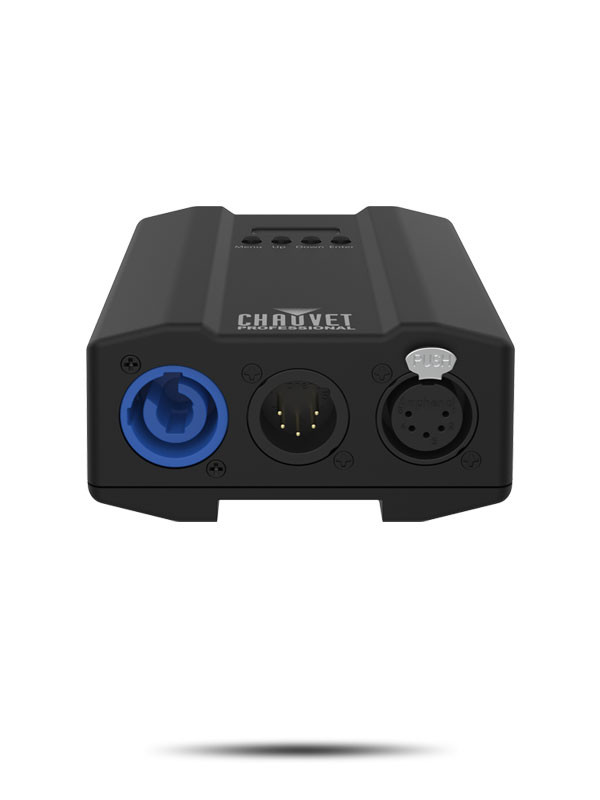

Connections
• Power Connection: Neutrik powerCON linking
• Data Connectors: 5-pin XLR
• Cable Length (power): 2ft 6 in (0.792 m)

Control
• Control Protocol: DMX, RDM
• DMX Channels: 1
• Modes/Personalities: 1 personalities (1Ch)

Electrical
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 6 W, .092 A @ 120 V, 60 Hz
• Power and Current: 5 W, .063 A @ 208 V, 60 Hz
• Power and Current: 5 W, .060 A @ 230 V, 50 Hz

Certifications / Qualifications
• CE
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)

What's Included
• Ovation GR-1 Adapter
• Neutrik powerCON power linking cord
