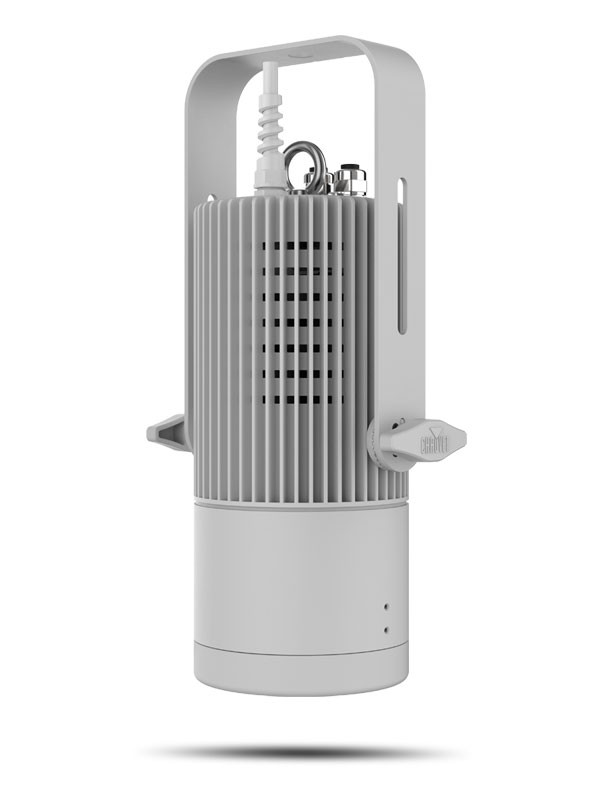

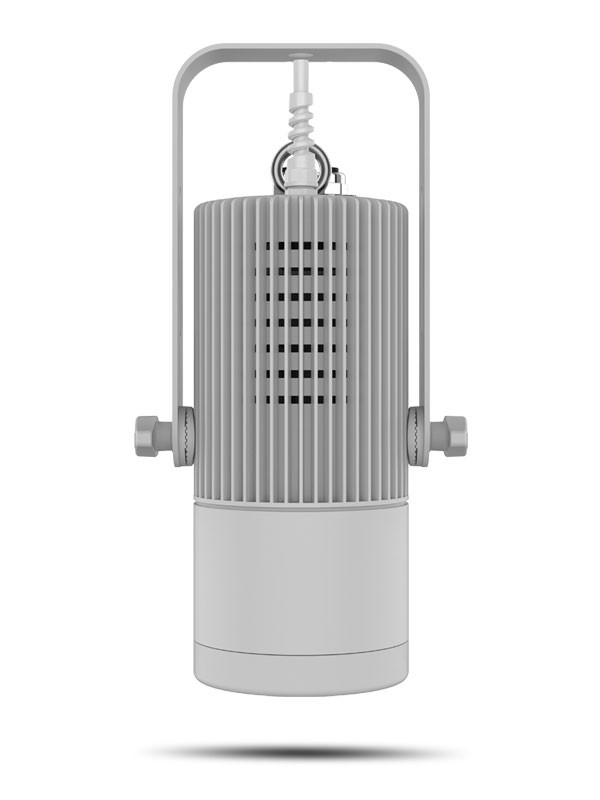

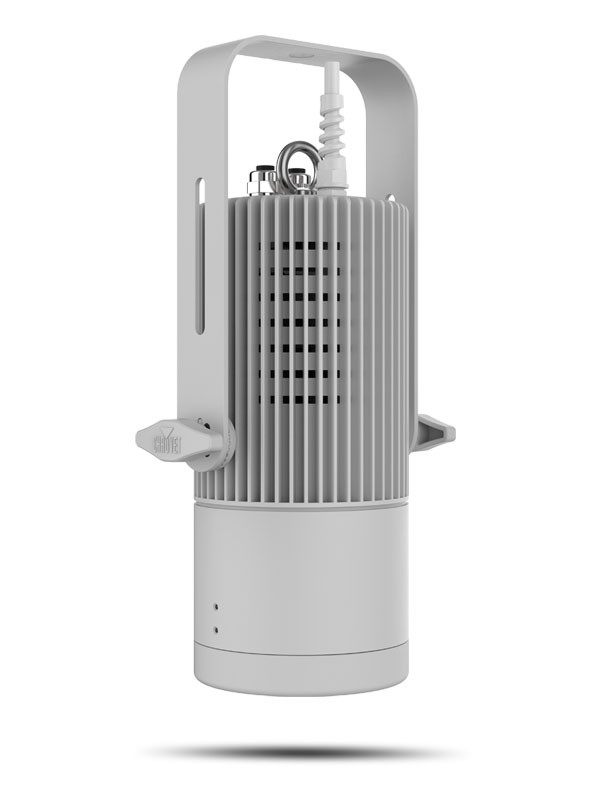

• Compact, warm white, convection cooled house light
• Interchangeable lens plates to adapt to different mounting heights
• 5-pin XLR and terminal blocks for DMX connections
• Use included yoke for mounting, or suspend from integrated loop-eye
• Included recess and sconce mounting kits
• 16-bit dimming for ultra-smooth fades
• DMX, WDMX and RDM (Remote Device Management) for added programming flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Optical• Light Source: 1 LEDs (WW) 129.5 W, (1.45 A), 3157 K, 50,000 hours life expectancy
• Color Temperature (at full): 3157 K
• CRI: 93
• Beam Angle (w/80 filter): 41
• Beam Angle (w/65 lens): 39
• Beam Angle (w/40 lens): 30
• Beam Angle (w/25 lens): 24
• Field Angle (w/80 filter): 126
• Field Angle (w/65 lens): 73
• Field Angle (w/40 lens): 58
• Field Angle (w/25 lens): 39
• Lumens (w/80 filter): 3314
• Lumens (w/65 lens): 3797
• Lumens (w/40 lens): 4007
• Lumens (w/25 lens): 4079
• Illuminance (w/80 filter): 131 lux @ 5 m
• Illuminance (w/65 lens): 212 lux @ 5 m
• Illuminance (w/40 lens): 400 lux @ 5 m
• Illuminance (w/25 lens): 728 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 25 Hz
• Dim Modes: 4
• Built-in Automated Programs: Yes
Construction / Physical• Dimensions: 13.14 x 6.92 x 4.52 in (334 x 176 x 115 mm)
• Weight: 7.4 lb (3.4 kg)
• Exterior Color: White
Connections• Power Connection: Bare-wired
• Power Input: Hard-wired
• Data Connectors: 5-pin XLR, Phoenix connector
• Cable Length (power): 15 ft (4.5 m)
Control• Control Protocol: DMX, W-DMX, RDM
• DMX Channels: 1, 2 or 5
• Modes/Personalities: 3 personalities (1CH, 2CH, 5CH)
Electrical• Input Voltage: 100 to 240 VAC, 50/60 Hz (Auto-Ranging)
• Power and Current: 60 W, 0.497 A @ 120 V, 60 Hz
• Power and Current: 61 W, 0.297 A @ 208 V, 60 Hz
• Power and Current: 63 W, 0.269 A @ 230 V, 50 Hz
Certifications / Qualifications• CE, MET, FCC
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)
What's Included• Ovation H-55WW
• 65, 40 and 25 Lens
• 80 Filter
• Egg Crate
• Recess and Sconce Mounting Kits
Required Accessories• RDM2go or other RDM capable interface for fixture set-up
Optional Accessories• W-DMX' Transmitter
• Professional Clamps: CTC-50HC, CTC-50HCN
• 5-pin DMX Cables
• RDM2go'
