• Full color PAR style fixture with homogenized single source of light
• Interchangeable lens plates included for medium and wide beam angles
• Flat, even field of light
• Quiet operation for use in any situation with fan speed control
• RDM and variable Pulse Width Modulation for setup ease
• Accepts standard 7.5" beam shaping accessories
• 16-bit dimming resolution for smooth fades
Optical Light Source: 48 LEDs (10 red, 10 green, 8 blue, 8 amber, 12 lime) 3 to 5 W, (1 A), 50,000 hours life expectancy
Color Temperature (range): 2800 to 6500 K
Color Temperature (at full): 4889 K
CRI (3200): 90
Beam Angle (Medium Lens): 24
Beam Angle (Wide Lens): 73
Field Angle (Medium Lens): 41
Field Angle (Wide Lens): 105
Lumens (Medium Lens): 5,436
Lumens (Wide Lens): 5,216
Illuminance (Medium Lens): 1,250 lux @ 5 m
Illuminance (Wide Lens): 197 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical Dimensions: Dimensions: 12.48 x 12.83 x 14 in (317 x 326 x 363 mm)
Weight: 12.2 lb (5.6 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

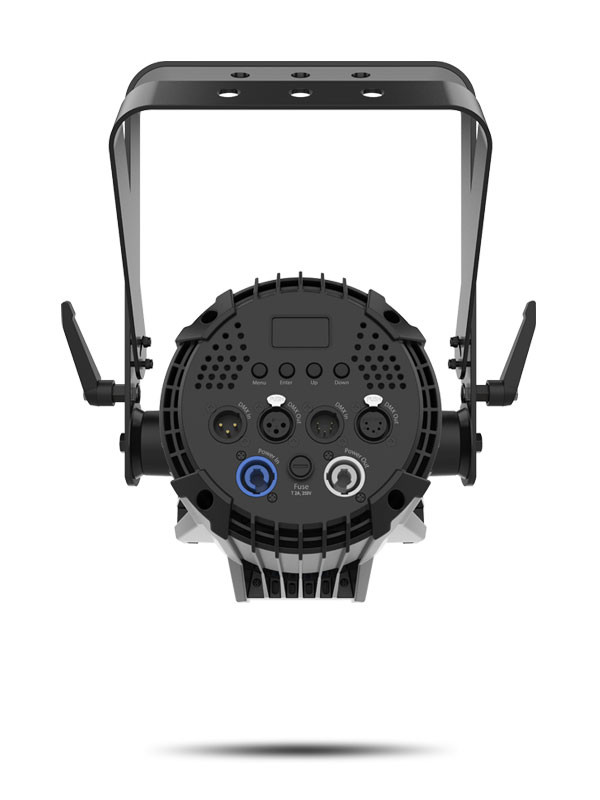

Connections Power Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Control Control Protocol: DMX, RDM
DMX Channels: 1, 3, 5, 7, 10, 12, 13, 16 or HSV
Modes/Personalities: 9 personalities (1, 3, 5, 7, 10, 12, 13, 16, HSV)
Electrical Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 7 units @ 100 V; 9 units @ 120 V; 16 units @ 208 V; 18 units @ 230 V; 18 units @ 240 V
Power and Current: 167 W, 1.740 A @ 100 V, 60 Hz
Power and Current: 164 W, 1.413 A @ 120 V, 60 Hz
Power and Current: 158 W, 0.813 A @ 208 V, 60 Hz
Power and Current: 156 W, 0.747 A @ 230 V, 50 Hz
Power and Current: 155 W, 0.716 A @ 240 V, 50 Hz
Certifications / Qualifications CE, MET, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)
What's Included Ovation P-56FC
Neutrik powerCON power cord
Gel frame holder (7.5 in/191 mm accessories)
Medium and Wide Lens
Optional Accessories Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik powerCON cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation F 7.5" Barndoor V2
Ovation 60 deg, 7.5" Honeycomb
