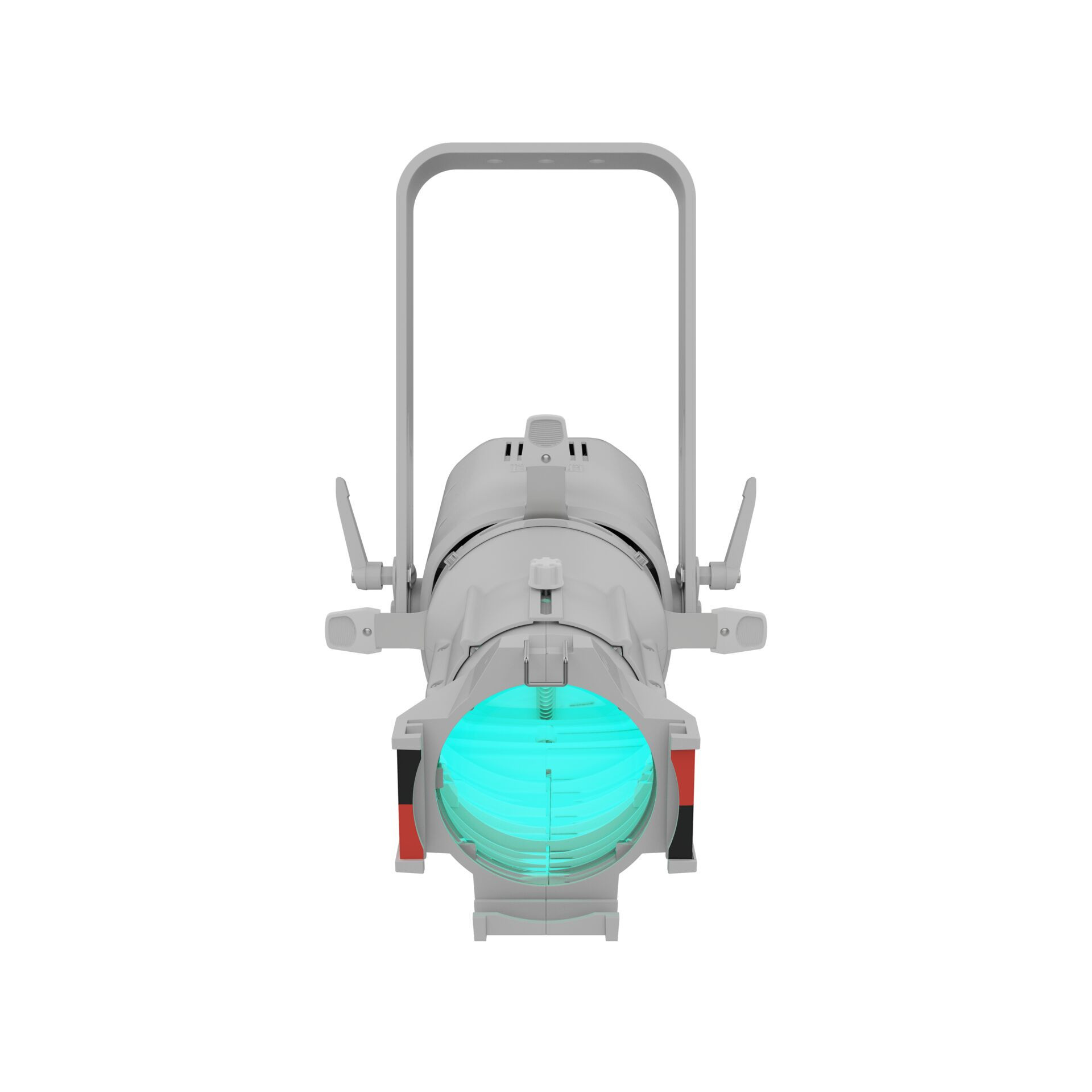

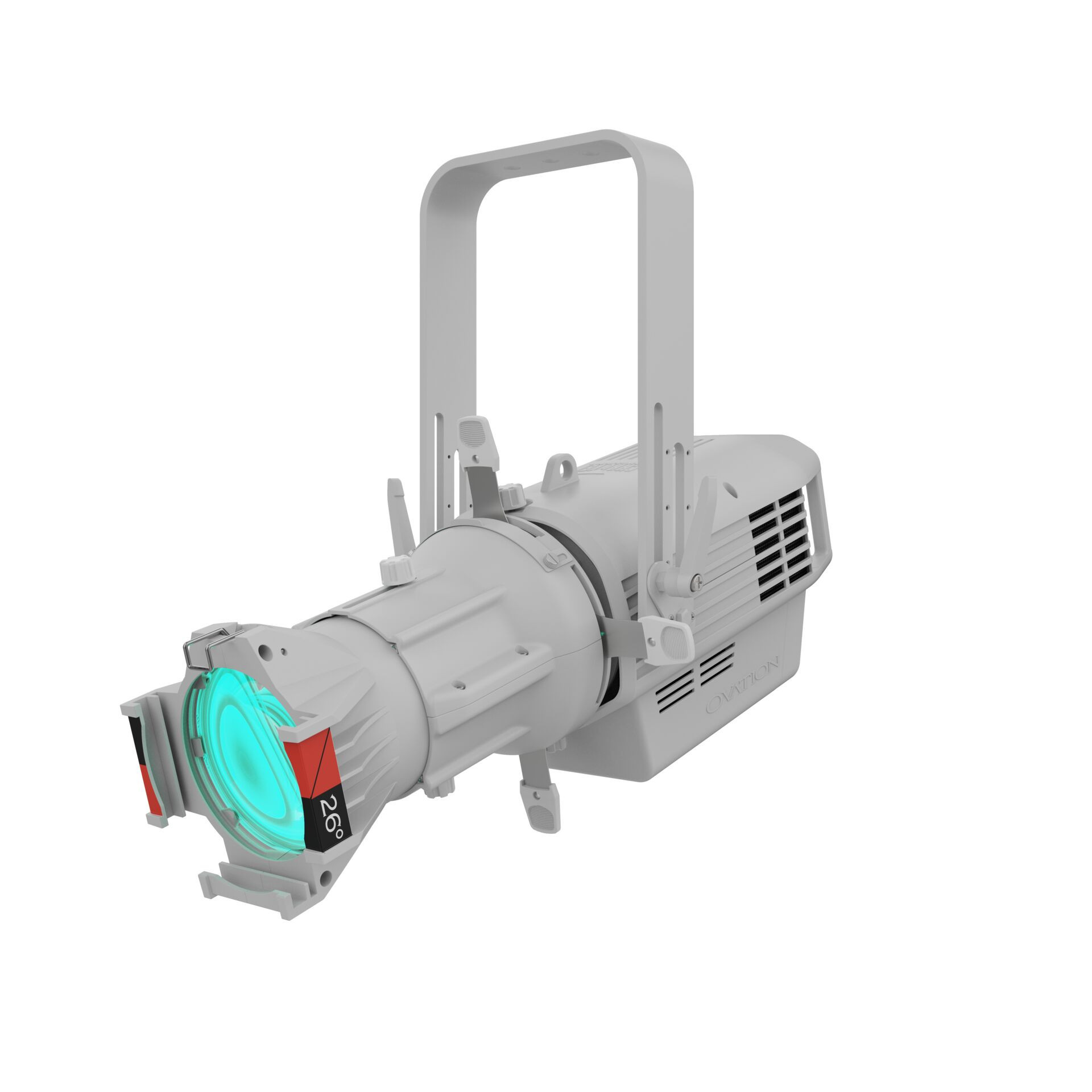

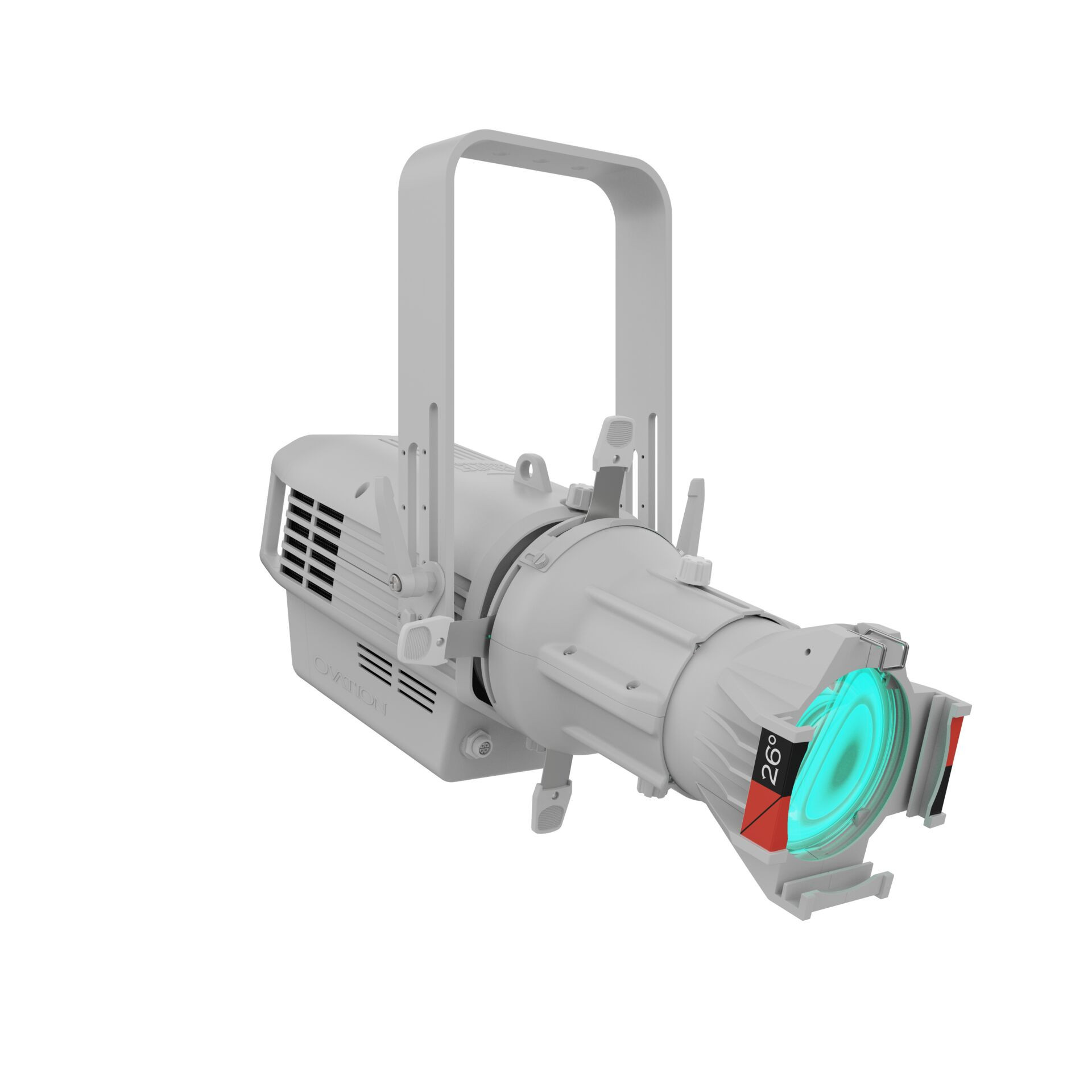

• Full-spectrum LED ERS-style lighting fixture for theatre, film and production
• Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS
• Virtual color wheel with color matched to popular gel colors
• +/- Green adjustment and emulated red-shift via DMX or on-board control
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio, film and theatre applications
• Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme.
• Innovative adjustable yoke for mounting in low clearance areas
• Direct power/data connection and control options for the Ovation GR-1 gobo rotator
• USB port for fixture software updates
Optical• Light Source: 91 LEDs (12 red, 19 green, 3 blue, 9 royal blue, 24 amber, 24 mint) 3.5 to 10 W, (2.4 A), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 8000 K
• Color Temperature (at full): 5470K
• CRI (3200 K): 95.4
• Beam Angle (w/5 lens): 4.6
• Beam Angle (w/10 lens): 10
• Beam Angle (w/14 lens): 14.8
• Beam Angle (w/19 lens): 18.5
• Beam Angle (w/26 lens): 26
• Beam Angle (w/36 lens): 33.3
• Beam Angle (w/50 lens): 49.5
• Beam Angle (w/1530 lens)(Narrow): 13
• Beam Angle (w/1530 lens)(Wide): 28.5
• Beam Angle (w/2550 lens)(Narrow): 23.6
• Beam Angle (w/2550 lens)(Wide): 40.5
• Field Angle (w/5 lens): 5.6
• Field Angle (w/10 lens): 11.1
• Field Angle (w/14 lens): 16
• Field Angle (w/19 lens): 21.6
• Field Angle (w/26 lens): 29.6
• Field Angle (w/36 lens): 37.1
• Field Angle (w/50 lens): 55.7
• Field Angle (w/1530 lens)(Narrow): 15.4
• Field Angle (w/1530 lens)(Wide): 32.2
• Field Angle (w/2550 lens)(Narrow): 25.8
• Field Angle (w/2550 lens)(Wide): 44.1
• Lumens (w/5 lens): 5,076
• Lumens (w/10 lens): 11,250
• Lumens (w/14 lens): 12,179
• Lumens (w/19 lens): 12,156
• Lumens (w/26 lens): 13,300
• Lumens (w/36 lens): 13,223
• Lumens (w/50 lens): 12,216
• Lumens (w/1530 lens): 12,057
• Lumens (w/2550 lens): 14,355
• Illuminance (w/5 lens): 31,856 lux @ 5 m
• Illuminance (w/10 lens): 18,924 lux @ 5 m
• Illuminance (w/14 lens): 9,284 lux @ 5 m
• Illuminance (w/19 lens): 5,635 lux @ 5 m
• Illuminance (w/26 lens): 3,378 lux @ 5 m
• Illuminance (w/36 lens): 2,085 lux @ 5 m
• Illuminance (w/50 lens): 870 lux @ 5 m
• Illuminance (w/1530 lens)(Narrow): 9,292 lux @ 5 m
• Illuminance (w/1530 lens)(Wide): 2,671 lux @ 5 m
• Illuminance (w/2550 lens)(Narrow): 3,710 lux @ 5 m
• Illuminance (w/2550 lens)(Wide): 1,527 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Focus: Manual
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Dim Curves: 4
• Built-in Automated Programs: Yes
Construction / Physical• Dimensions (fixture only, yoke up): 20.44 x 13.07 x 20.53 in (519 x 332 x 522 mm)
• Dimensions (w/5 lens extended, yoke up): 41.60 x 14.17 x 21.42 in (1056 x 360 x 544 mm)
• Dimensions (w/10 lens extended, yoke up): 32.87 x 13.07 x 20.01 in (835 x 332 x 510 mm)
• Dimensions (w/14 lens extended, yoke up): 29.7 x 13.07 x 20.53 in (755 x 332 x 522 mm)
• Dimensions (w/19, 26, 36 or 50 lens extended, yoke up):26.83 x 13.07 x 20.53 in (681 X 332 X 522 mm)
• Dimensions (w/1530 lens, yoke up): 33.02 x 13.52 x 20.53 in (839 x 343 x 522 mm)
• Dimensions (w/2550 lens, yoke up): 25.74 x 13.52 x 20.53 in (838 x 343 x 522 mm)
• Weight (fixture only): 18.6 lb (8.4 kg)
• Weight (w/5 lens): 26 lb (11.7 kg)
• Weight (w/10 lens): 24 lb (10.8 kg)
• Weight (w/14 lens): 25.6 lb (11.6 kg)
• Weight (w/26 lens): 24.2 lb (10.9 kg)
• Weight (w/1530 lens): 32.3 lb (14.6 kg)
• Weight (w/2550 lens): 29.8 lb ( 13.5 kg)
• Exterior Color: Black
• Gobo Size (Optional): "A": 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
• Gobo Size (Optional): "B": 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
• Accessory Holder/Gel Frame Size (5 lens): 14 in (356 mm)
• Accessory Holder/Gel Frame Size (10 lens): 12 in (304 mm)
• Accessory Holder/Gel Frame Size (14 lens): 7.5 in (191 mm)
• Accessory Holder/Gel Frame Size (19, 26, 36, and 50 lens): 6.25 in (159 mm)
• Accessory Holder/Gel Frame Size (1530 lens): 7.5 in (191 mm)
• Accessory Holder/Gel Frame Size (2550 lens): 7.5 in (191 mm)

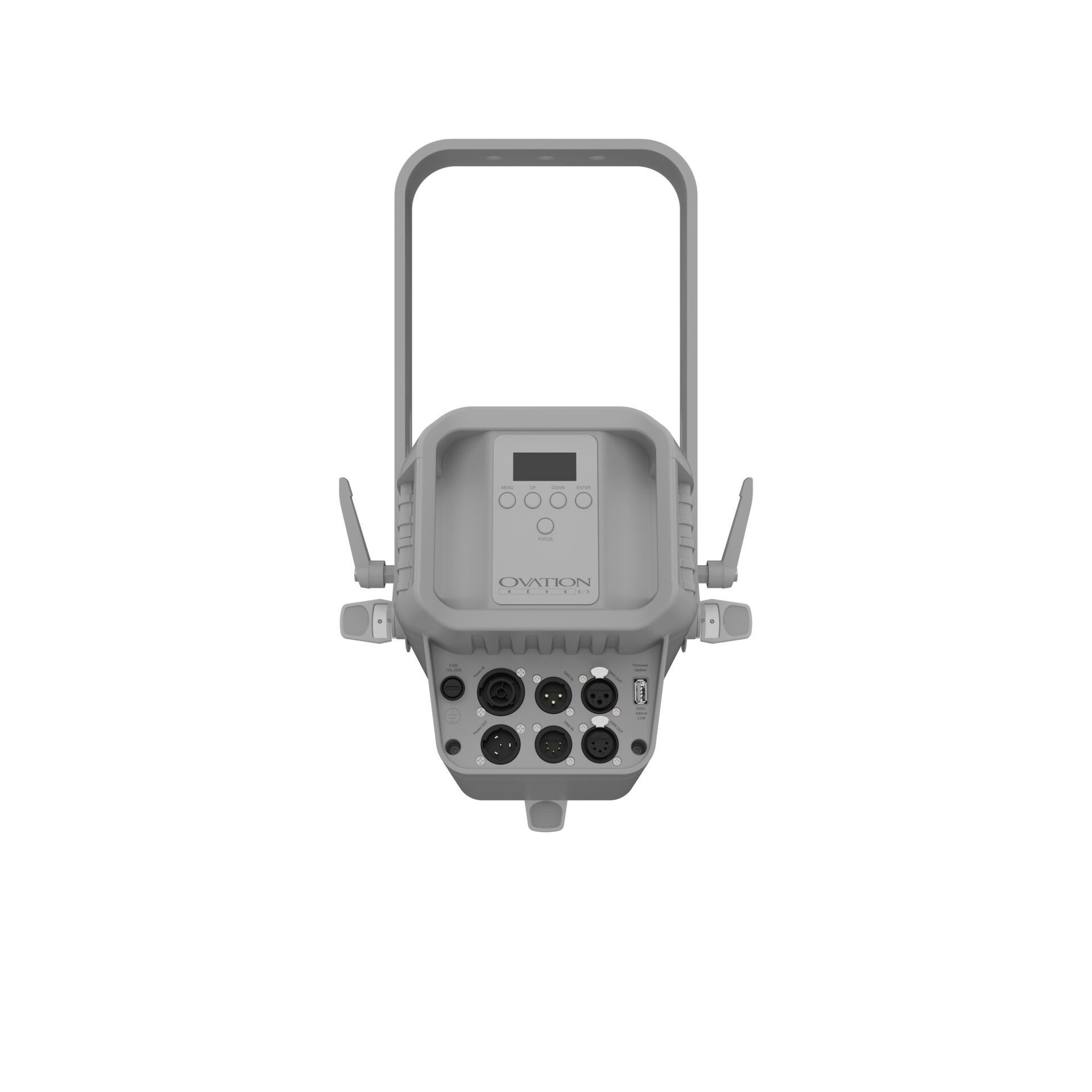

Connections• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
• Software Connection: USB
Control• Control Protocol: DMX, RDM
• DMX Channels: 1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV
• Modes/Personalities: 9 personalities (1, 5, 6, 8, 12, 14ch1, 14ch2, 18, HSV)
Electrical• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V
• Power and Current: 367 W, 3.04 A @ 120 V, 60 Hz
• Power and Current: 356 W, 1.76 A @ 208 V, 60 Hz
• Power and Current: 353 W, 1.59 A @ 230 V, 50 Hz
Certifications / Qualifications• CE, MET, FCC
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)
What's Included• Ovation Reve E-3
• Seetronic Powerkon power cord
• Ovation Metal Gobo Holder
• Soft Focus Filter
Required Accessories• Lens Tube: 5, 10, 14, 19, 26, 36, 50, 15-30, 25-50
Optional Accessories• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• TRUE1 Style Power Extension Cables
• 3-pin or 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
• RDM2go
• Ovation Glass Gobo Holder
• Ovation Metal Gobo Holder
• Ovation Iris
• USB Jump Drive
