Chauvet Professional PVP S5 10ft x 6.5ft Video Wall Package

Ships When All Components Are In Stock
Availability of this package depends on the stock status of the individual items. Order Now! We'll notify you promptly of any delay.
Free Shipping FREE Ground Shipping to the contiguous U.S. (details)
    • Buy Now and Earn 5000 PDJ Bucks ($50.00)! Applies only to registered, domestic U.S. customers. Exact value may vary once logged in.

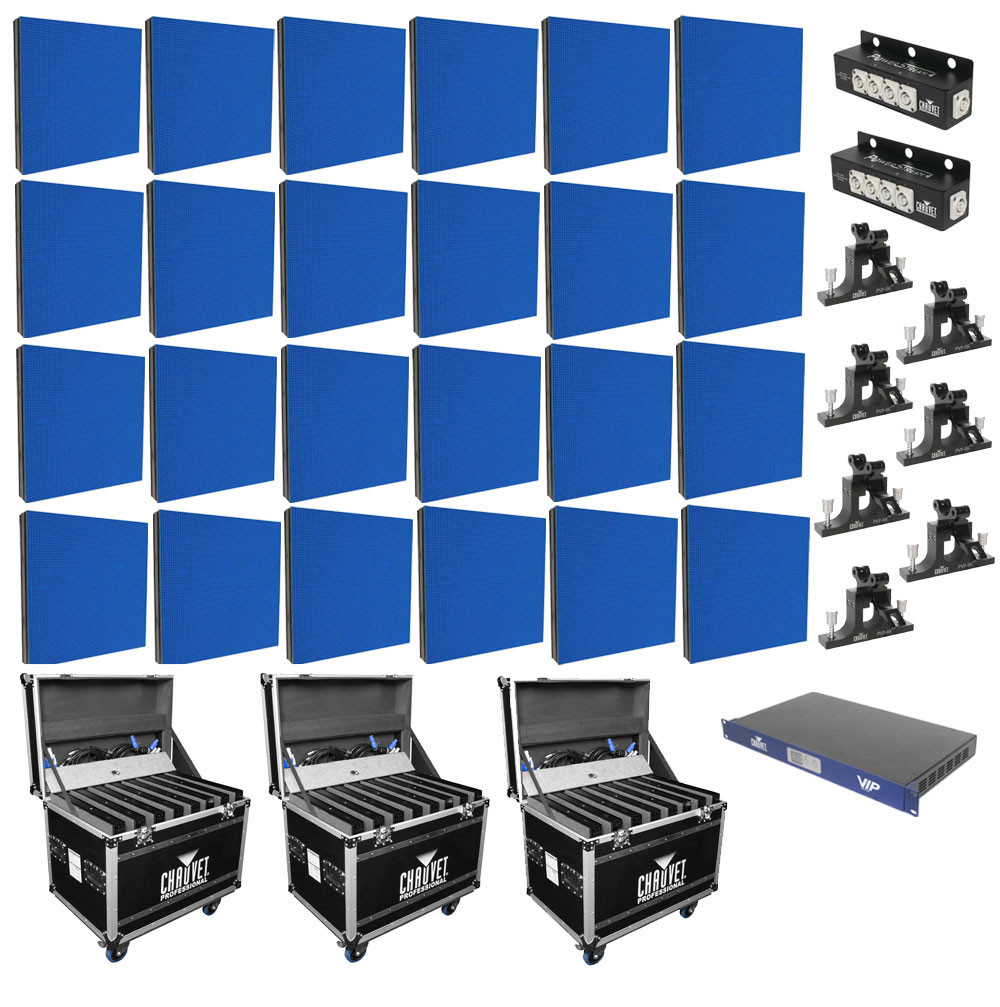

Measuring approximately 10 feet wide by 6.5 feet high, this pre-configured video wall package utilizes (24) high-res PVP S5 panels and includes a VIP Driver, as well as all necessary powerCON linking cables, etherCON linking cables, rigging kits to properly hang the wall, as well as road cases to house/protect the video wall panels.

With a pixel pitch of 5.2 millimeters, PVP' S5 video panel boasts a higher resolution than PVP' S7, enabling even shorter viewing distances. It, too, is fitted with black face SMD LEDs and performs admirably when presenting live videos and highly defined graphics for presentation at close range or from afar.

Actual wall dimensions roughly 9.85ft x 6.56ft.

• 5.2mm pixel pitch video panel system featuring superb contrast through the use of blackface SMD LEDs
• Tight binning of LEDs insures consistent color rendering across panels
• Lightweight and modular system for high-resolution graphics
• Easy installation and connectivity using Neutrik powerCON and etherCON connectors
• Solid construction makes these a perfect product for long term installation
• Interchangeable with the PVP' S7 panels to create large wall designs
• Tri-color SMD 3528 LEDs provide better image quality
• Tight pixel pitch allows for equally effective close range and long range viewing
• Designed for touring and permanent indoor installation
• Use with PVP' Rigging Clamp or Rigging Bars and integrated, interlocking hardware for fast and easy setup

PVP S5 Panel Specifications
• Pixel pitch: 5.2 mm
• Compatible mounting options: PVP' Rig Bar (truss mounting), or M10 bolt/clamp (rear mounting)
• Pixels / screen: 96 x 96 (9,216 total)
• Pixel density: 36,864 /m2
• Display rate: 1,200 Hz (flicker-free)
• Light source: Tri-color SMD 3528 LEDs 50,000 hrs
• Color wavelengths: Red: 620-625 nm; green: 520-525 nm; blue: 465-470 nm
• Housing material: Aluminum alloy
• Viewing angle: 140
• Illuminance: 1,500 NITS
• IP rating: IP50, dry location
• Power linking: 9 units @ 120 V/ 16 units @ 208 V/ 18 units @ 230 V
• Input voltage: Auto-ranging 100-240 VAC, 50/60 Hz
• Power and current: 126 W, 1.05 A @ 120 V 60 Hz
• Power and current: 128 W, 0.62 A @ 208 V 50 Hz
• Power and current: 129 W, 0.56 A @ 230 V 50 Hz
• Weight: 16.3 lbs (7.39 kg)
• Size: 19.7 x 19.7 x 2.5 in (500 x 500 x 63 mm)
• Approvals: CE
