Chauvet Professional PVP S5 13ft x 8ft Video Wall Package

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

chauvet professional pdj-pvps5-8x5
chauvet professional pdj-pvps5-8x5 Chauvet Professional PVP S5 13ft x 8ft Video Wall Package Chauvet Professional PVP S5 13ft x 8ft Video Wall Package Chauvet Professional PVP S5 13ft x 8ft Video Wall Package Chauvet Professional PVP S5 13ft x 8ft Video Wall Package Chauvet Professional PVP S5 13ft x 8ft Video Wall Package Chauvet Professional PVP S5 13ft x 8ft Video Wall Package Chauvet Professional PVP S5 13ft x 8ft Video Wall Package Chauvet Professional PVP S5 13ft x 8ft Video Wall Package

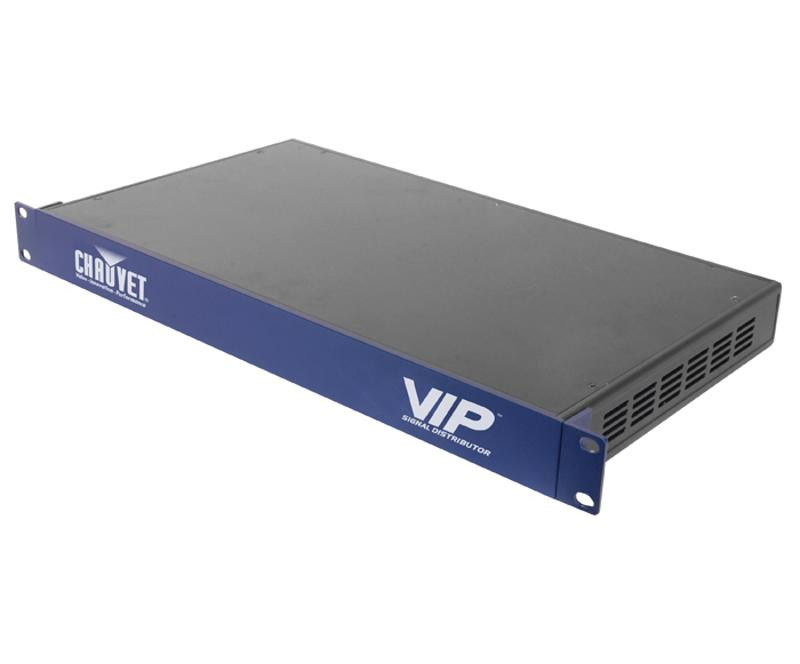

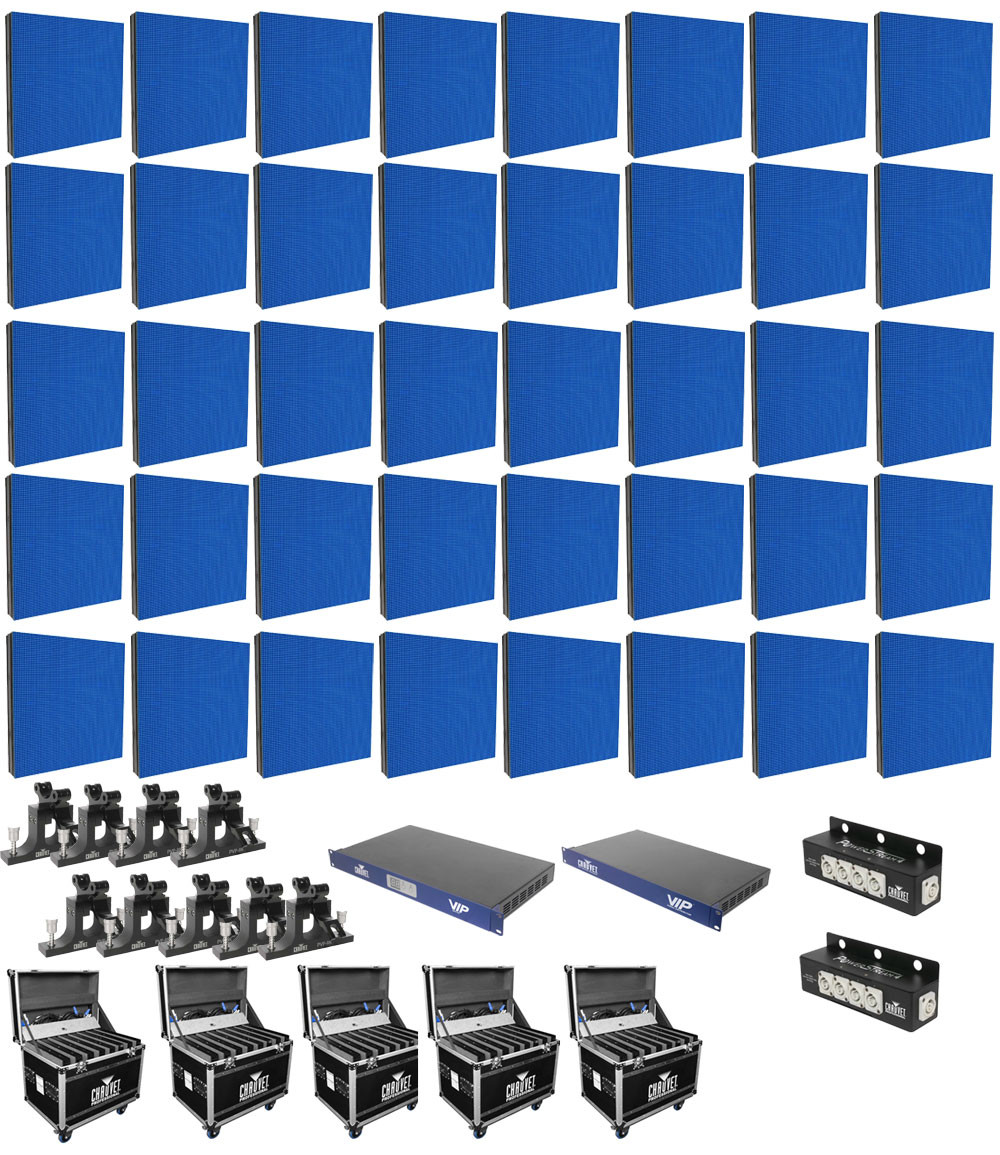

Measuring approximately 13 feet wide by 8 feet high, this pre-configured video wall package utilizes (40) high-res PVP S5 panels and includes a VIP Driver, a VIP Signal Distributor, as well as all necessary powerCON linking cables, etherCON linking cables, rigging kits to properly hang the wall, as well as road cases to house/protect the video wall panels.

With a pixel pitch of 5.2 millimeters, PVP' S5 video panel boasts a higher resolution than PVP' S7, enabling even shorter viewing distances. It, too, is fitted with black face SMD LEDs and performs admirably when presenting live videos and highly defined graphics for presentation at close range or from afar.

Actual wall dimensions roughly 13.13ft x 8.21ft.





• 5.2mm pixel pitch video panel system featuring superb contrast through the use of blackface SMD LEDs
• Tight binning of LEDs insures consistent color rendering across panels
• Lightweight and modular system for high-resolution graphics
• Easy installation and connectivity using Neutrik powerCON and etherCON connectors
• Solid construction makes these a perfect product for long term installation
• Interchangeable with the PVP' S7 panels to create large wall designs
• Tri-color SMD 3528 LEDs provide better image quality
• Tight pixel pitch allows for equally effective close range and long range viewing
• Designed for touring and permanent indoor installation
• Use with PVP' Rigging Clamp or Rigging Bars and integrated, interlocking hardware for fast and easy setup

PVP S5 Panel Specifications
• Pixel pitch: 5.2 mm
• Compatible mounting options: PVP' Rig Bar (truss mounting), or M10 bolt/clamp (rear mounting)
• Pixels / screen: 96 x 96 (9,216 total)
• Pixel density: 36,864 /m2
• Display rate: 1,200 Hz (flicker-free)
• Light source: Tri-color SMD 3528 LEDs 50,000 hrs
• Color wavelengths: Red: 620-625 nm; green: 520-525 nm; blue: 465-470 nm
• Housing material: Aluminum alloy
• Viewing angle: 140
• Illuminance: 1,500 NITS
• IP rating: IP50, dry location
• Power linking: 9 units @ 120 V/ 16 units @ 208 V/ 18 units @ 230 V
• Input voltage: Auto-ranging 100-240 VAC, 50/60 Hz
• Power and current: 126 W, 1.05 A @ 120 V 60 Hz
• Power and current: 128 W, 0.62 A @ 208 V 50 Hz
• Power and current: 129 W, 0.56 A @ 230 V 50 Hz
• Weight: 16.3 lbs (7.39 kg)
• Size: 19.7 x 19.7 x 2.5 in (500 x 500 x 63 mm)
• Approvals: CE

Additional Information

UPCN/A
SKUPDJ-PVPS5-8X5
ManufacturerChauvet Professional
Product ConditionNew - On Clearance
ReturnableNo
