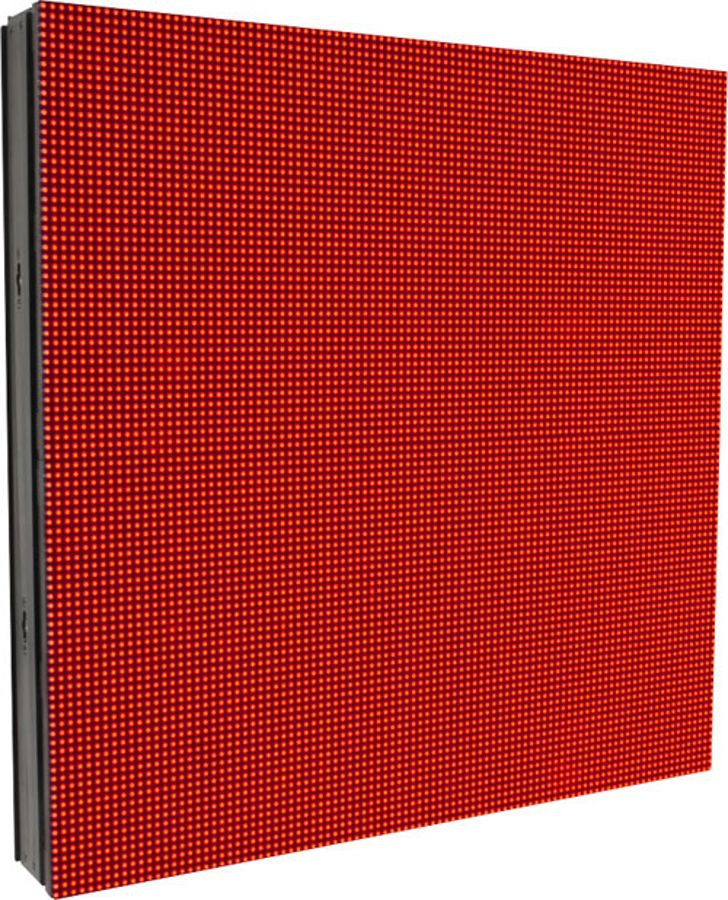

Chauvet Professional PVP S7 - SMD LED Video Panel 2-Pack

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

chauvet professional pvps7x2
Images may show accessories or configurations not packaged with this item.
With a pixel pitch of 5.2 millimeters, PVP' S5 video panel boasts a higher resolution than PVP' S7, enabling even shorter viewing distances. It, too, is fitted with black face SMD LEDs and performs admirably when presenting live videos and highly defined graphics for presentation at close range or from afar.

• 7.8mm pixel pitch video panel system featuring superb contrast through the use of blackface SMD LEDs
• Tight binning of LEDs ensures consistent color rendering across panels
• Lightweight and modular system for high-resolution graphics
• Easy installation and connectivity using Neutrik powerCON and etherCON connectors
• Solid construction makes these a perfect product for long-term installation
• Interchangeable with the PVP' S5 panels to create large wall designs
• Tri-color SMD 3528 LEDs provide better image quality
• Tight pixel pitch allows for equally effective close range and long range viewing
• Designed for touring and permanent indoor installation
• Works with VIP' Driver, VIP' Signal Distributor, VIP' Signal Processor, and VIP' 112 Signal Processor
• Use with PVP' Rigging kit and integrated, interlocking hardware for fast and easy setup

• Pixel pitch: 7.8 mm
• Compatible mounting options: PVP' Rig Kit (truss mounting), or M10 bolt/clamp (rear mounting)
• Pixels / screen: 64 x 64 (4,096 total)
• Pixel density: 16,384 /m2
• Display rate: 1,200 Hz (flicker-free)
• Light source: Tri-color SMD 3528 LEDs 50,000 hrs
• Color wavelengths: Red: 620-625 nm; green: 520-525 nm; blue: 465-470 nm
• Housing material: Aluminum alloy
• Viewing angle: 140
• Illuminance: 1,500 NITS
• IP rating: IP50, dry location
• Power linking: 16 units @ 120 V/ 27 units @ 208 V/ 28 units @ 230 V
• Input voltage: Auto-ranging 100-240 VAC 50/60 Hz
• Power and current: 102 W, 0.85 A @ 120 V 60 Hz
• Power and current: 105 W, 0.50 A @ 208 V 50 Hz
• Power and current: 106 W, 0.47 A @ 230 V 50 Hz
• Weight: 15.8 lbs (7.17 kg)
• Size: 19.7 x 19.7 x 2.5 in (500 x 500 x 63 mm)
• Approvals: CE

Additional Information

ManufacturerChauvet Professional
Product ConditionNew - On Clearance
