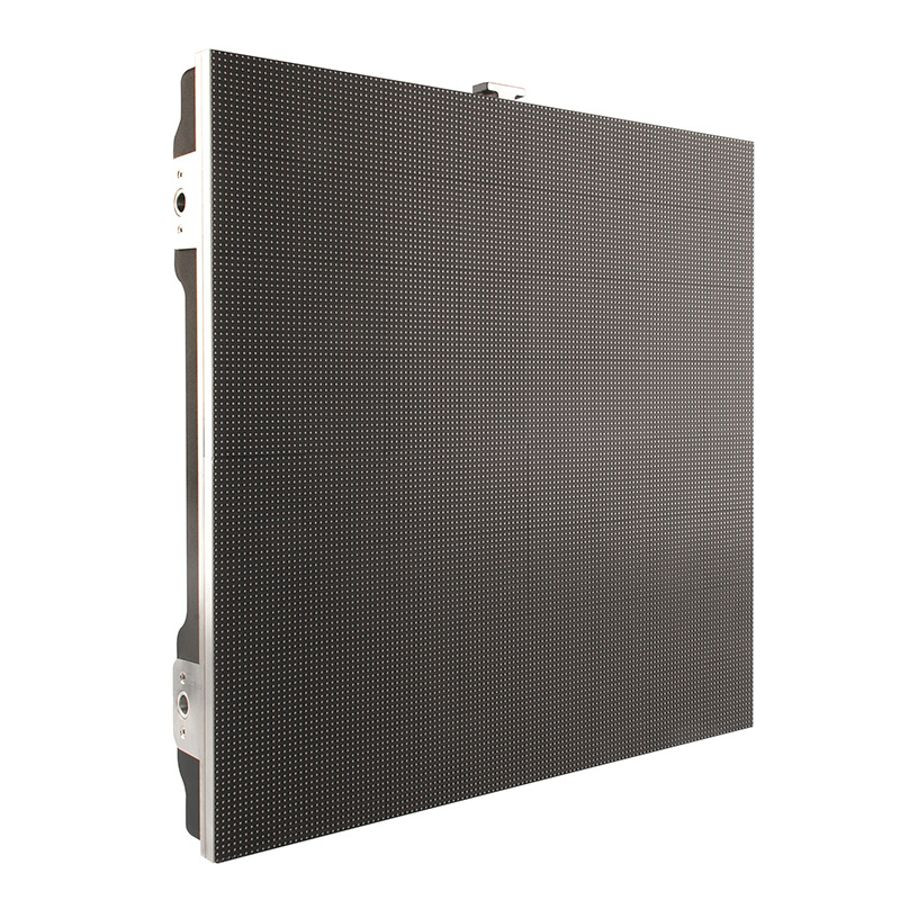

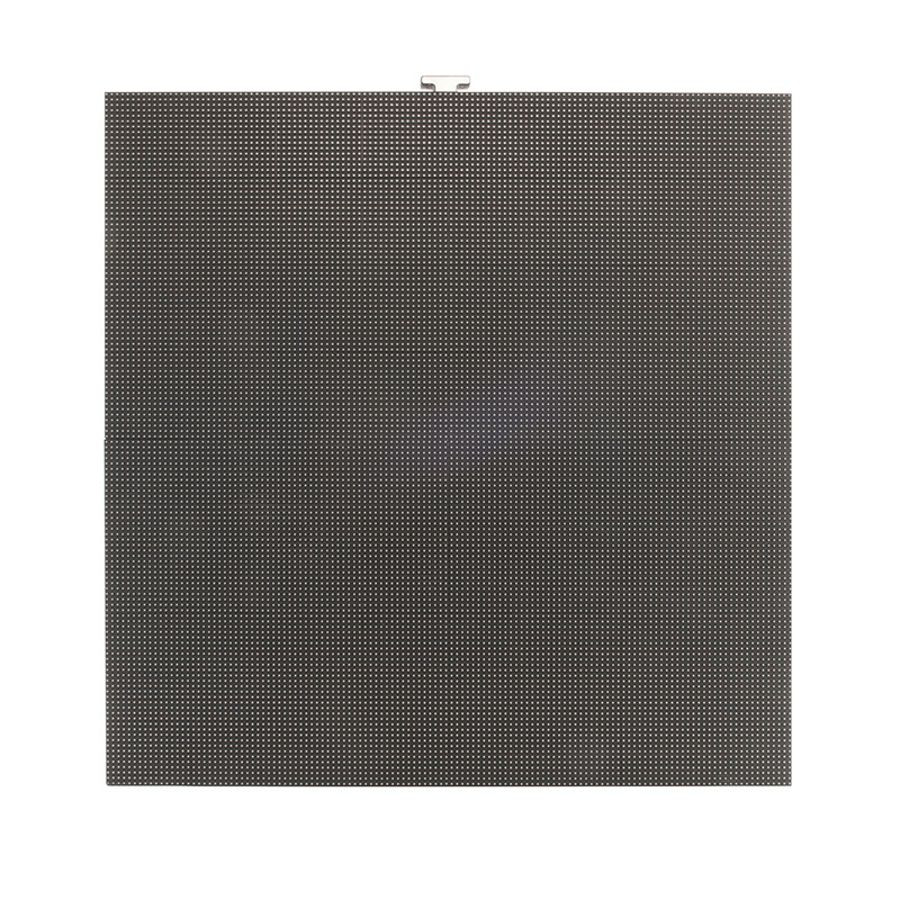

The PVP X3 LED Video Panel is designed for indoor installation, and is not compatible for production or repurposing.
There are additional components that are required/recommended for use with the X3.
Chauvet VIP Video Display Driver (Required) - The VIP Driver is the brain behind Chauvet LED Video walls, and acts as a connection between DVI or HDMI sources and the panels themselves. The system will not function correctly without this unit.
Chauvet Professional X-Series Rig Bar (Optional) - While it is recommended that you use the M12 Bolt/Clamps for rear mounting, the RBX50CM will allow you to hang the X3. NEVER place LED Video panels on a ground setup.
Chauvet Professional VIP Signal Distributor (Optional) - For users with more than 24 panels, it's important that the signal is properly split/amplified. The signal distributor will allow you to amplify the output of your video signal to up to 192 panels.
• 3.9 mm pixel pitch modular video panel with SMD 2121 LEDs
• Stainless steel hardware is integrated into each panel for secure interlocking between panels
• Solid aluminum die-cast construction makes these panels durable for the touring/rental market

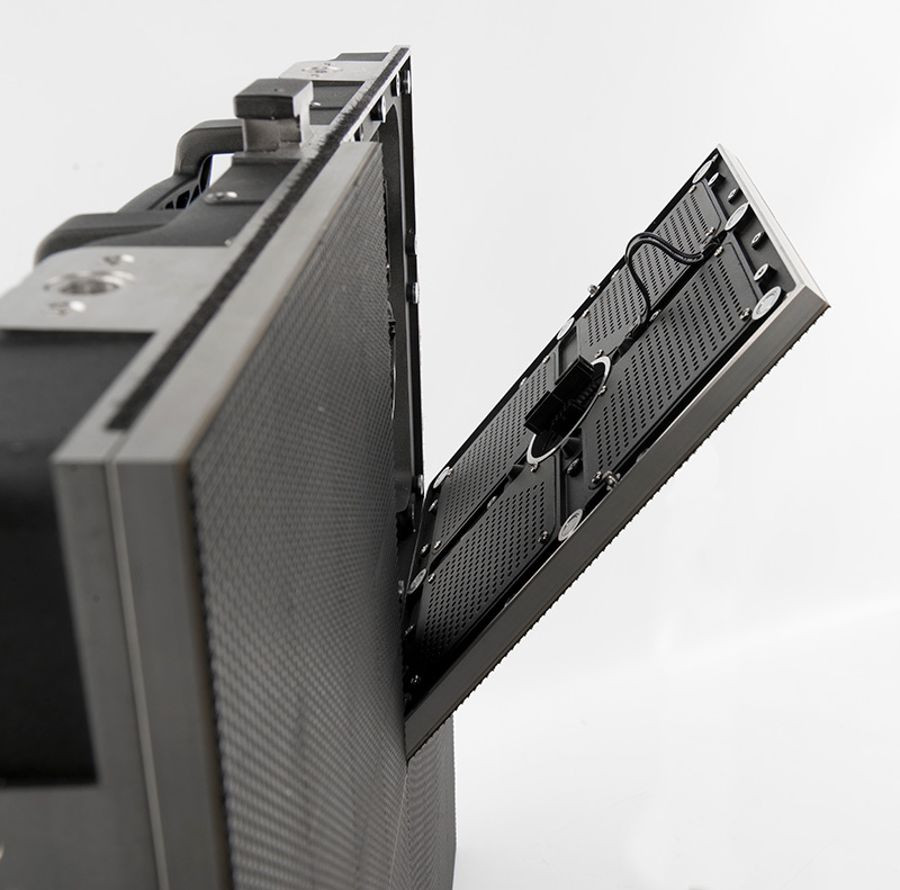

• Magnetic LED modules make replacing them fast and painless in the field or on the repair bench
• Tri-color (RGB), full black body LEDs provide the highest in class contrast and black levels
• Computer guided CNC cutting provides ultimate precision for seamless modular connections
• Works with VIP' Driver and VIP' Signal Distributor

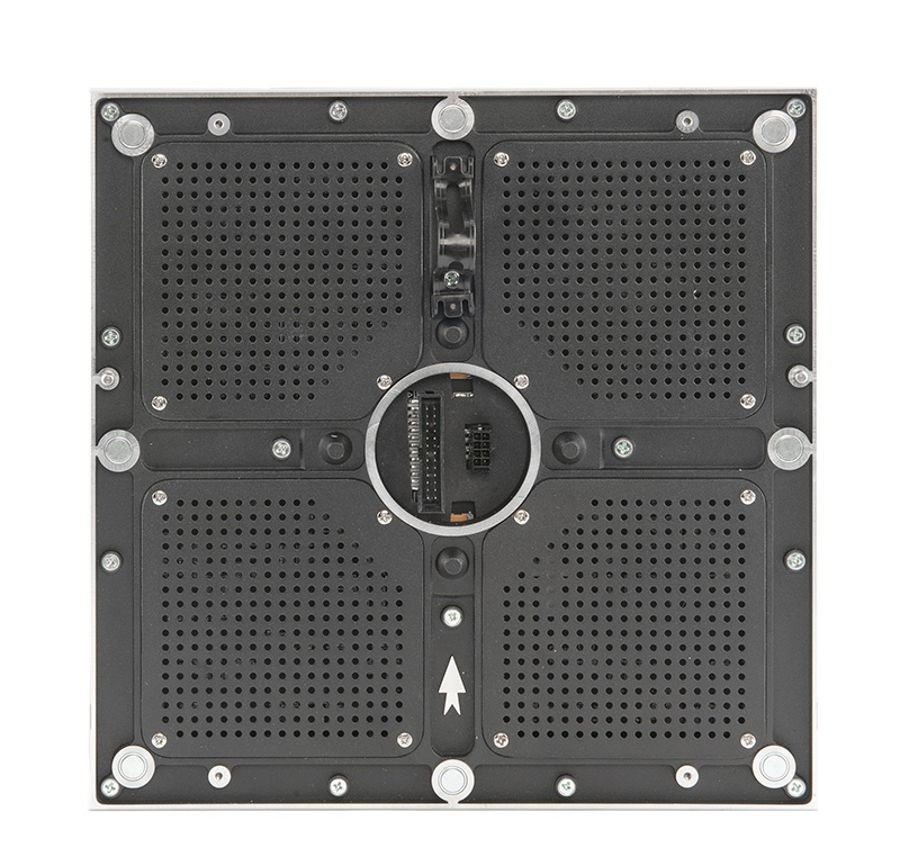

• Use with the X-Series Rig Bar to hang the panels, or with the M12 mounting points on the back of each panel
Specifications• Control Protocol: LINSN
• Data Connectors: Amphenol XLRnet
• Light Source: 16,384 LEDs (tri-color RGB) SMD 2121, 50,000 hours life expectancy
• Color Wavelength: red (625 nm), green (525 nm), blue (470 nm)
• Pixels: 128 x 128
• Pixel Pitch: 3.9 mm
• Pixel Density: 65,536/m2
• Viewing Angle: 130
• Display Refresh Rate: 1,350 Hz
• Transparency: 0%
• Illuminance: 1,560 NITS
• IP Rating: IP43, indoor use
• Cable Length (signal extension): 2.46 ft (0.75 m)
• Cable Length (power): 6 ft (1.83 m)
• Cable Length (power extension): 2.46 ft (0.75 m)
• Power Connection: Edison plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Power Linking: 20 units @ 120 V; 35 units @ 208 V; 37 units @ 230 V
• Maximum Panels/VIP' Driver: 70
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 107 W, 0.89 A @ 120 V, 60 Hz
• Power and Current: 108 W, 0.52 A @ 208 V, 60 Hz
• Power and Current: 109 W, 0.49 A @ 230 V, 50 Hz
• Weight: 18.7 lb (8.5 kg)
• Dimensions: 19.7 x 3.5 x 20.35 in (500 x 89 x 517 mm)
• Housing Material: Aluminum die-cast
• Compatible Mounting Options: X Series Rig Bar (RB-X50CM, RB-X200CM), or M12 Bolt/Clamp (rear mounting)
• Accessories (required): VIP' Driver
• Accessories (optional): VIP' Signal Distributor
• Accessories (optional): VIP' Media Server Pro
• Accessories (optional): VIP' 5162b Signal Processor
• Approvals: CE, EMC, MET
