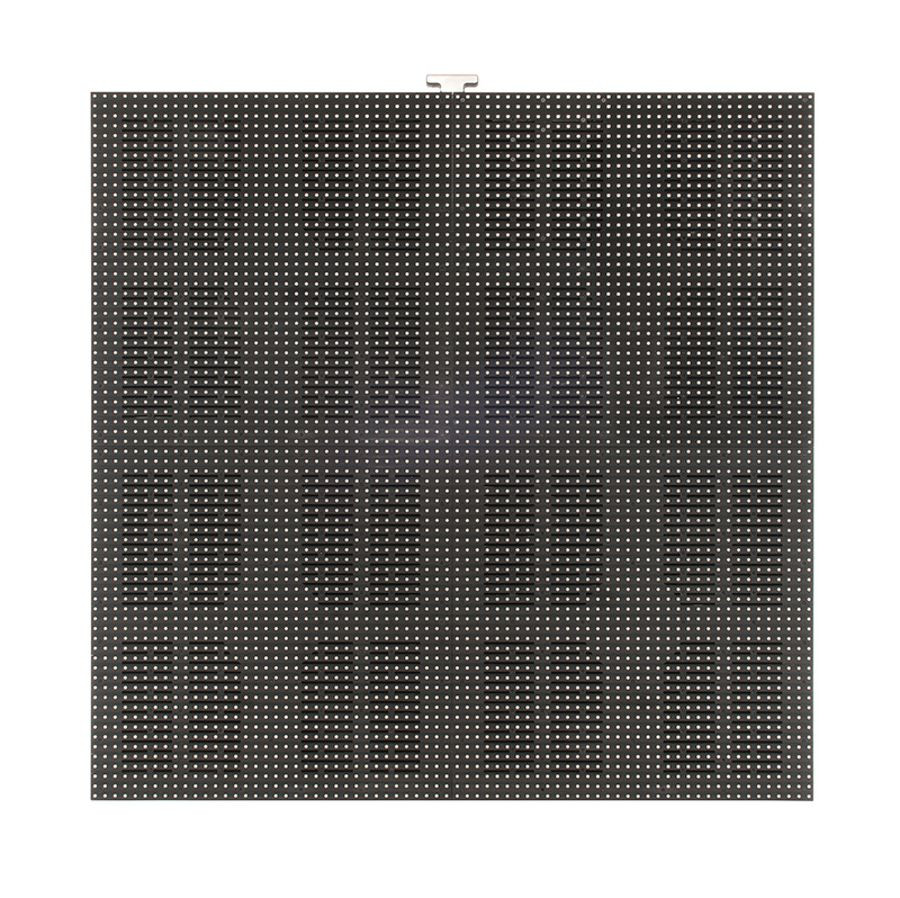

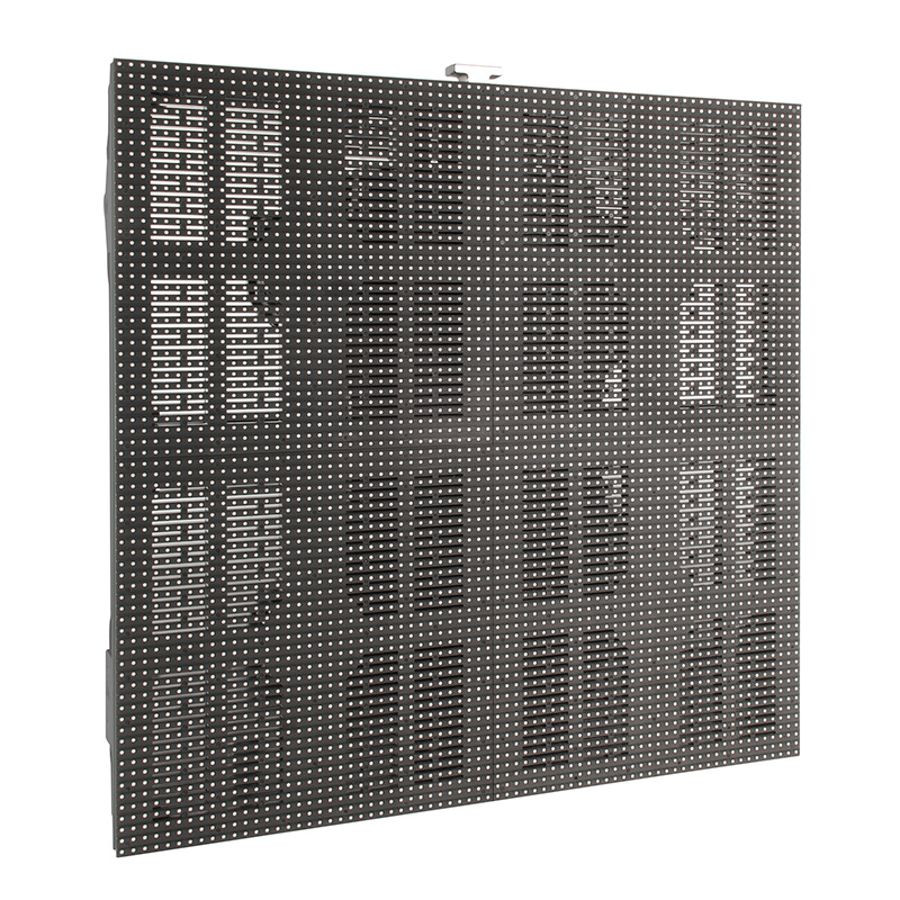

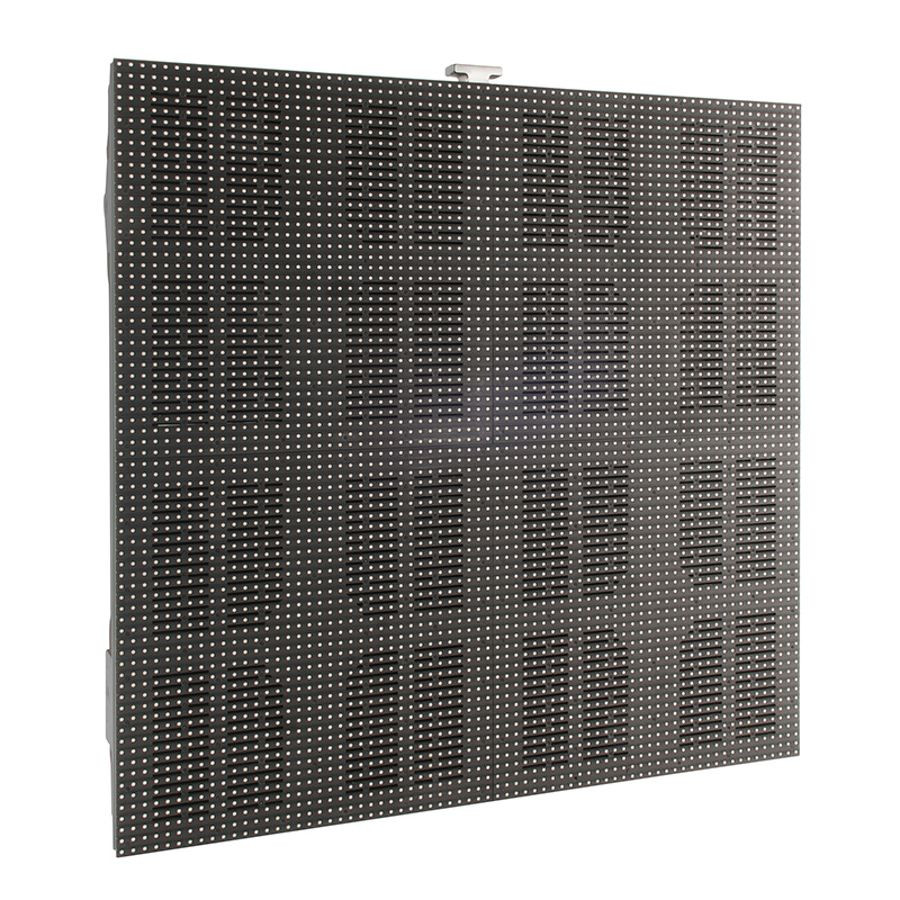

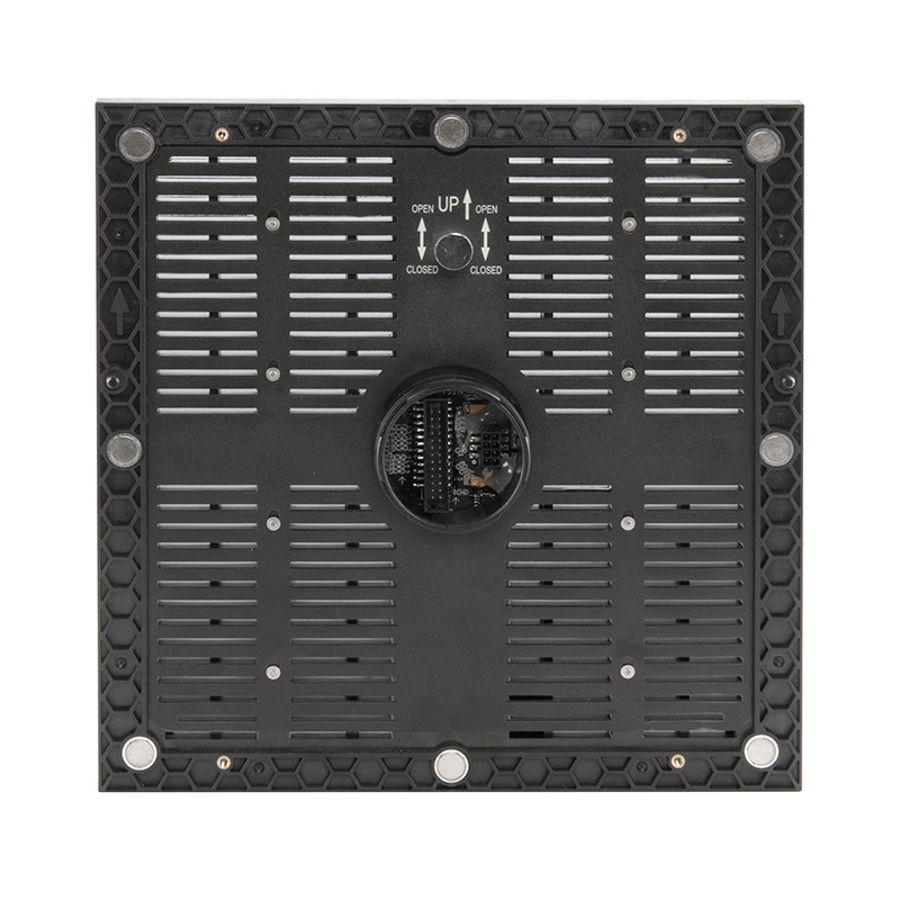

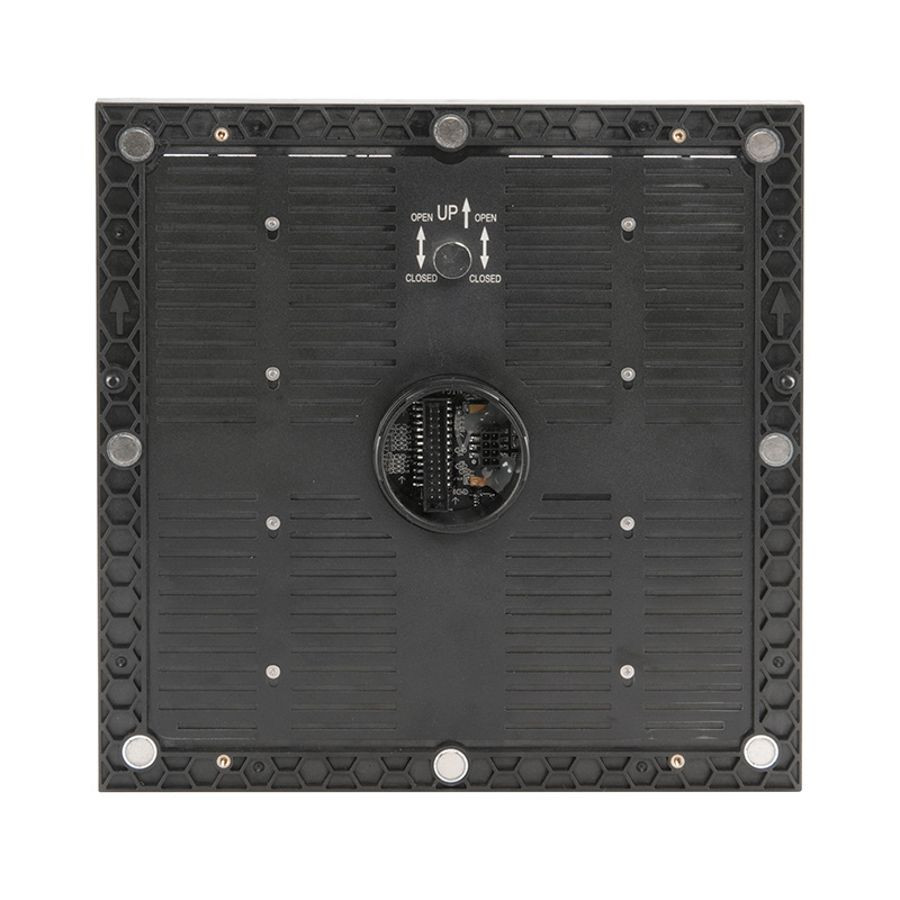

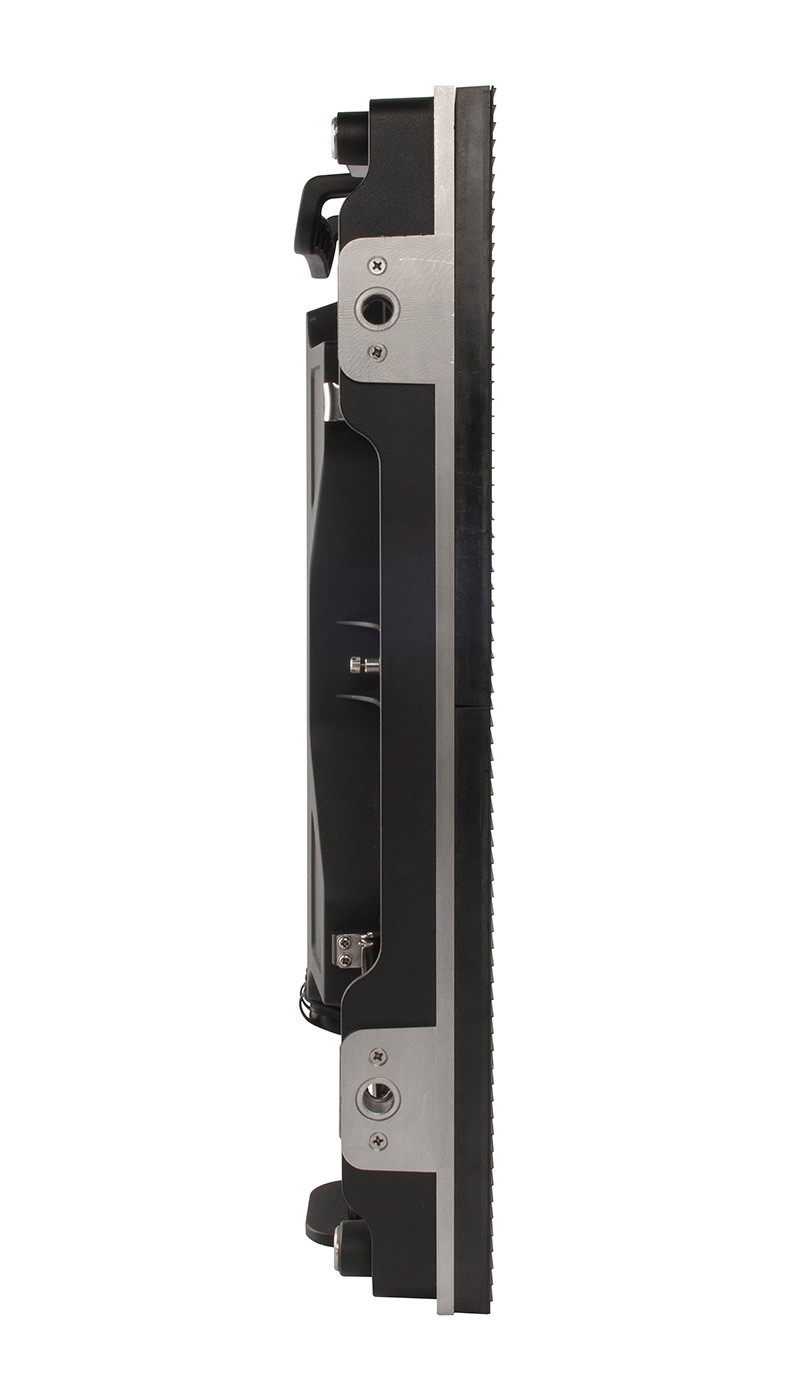

Chauvet Professional PVP X6 IP - SMD LED Video Panel 8-Pack

Dropships Ships Directly From The Supplier
Free Shipping FREE Ground Shipping to the contiguous U.S. (details)
VIP Price:
chauvet professional pvpx6ipx8
chauvet professional pvpx6ipx8 Chauvet Professional PVP X6 IP - SMD LED Video Panel 8-Pack Chauvet Professional PVP X6 IP - SMD LED Video Panel 8-Pack Chauvet Professional PVP X6 IP - SMD LED Video Panel 8-Pack Chauvet Professional PVP X6 IP - SMD LED Video Panel 8-Pack Chauvet Professional PVP X6 IP - SMD LED Video Panel 8-Pack Chauvet Professional PVP X6 IP - SMD LED Video Panel 8-Pack Chauvet Professional PVP X6 IP - SMD LED Video Panel 8-Pack Chauvet Professional PVP X6 IP - SMD LED Video Panel 8-Pack
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Includes: (8) PVP 6IP Panels, Road Case, 8 powerCON Linking Cables (2.46ft), 8 etherCON Linking Cables (2.46ft) PVP X6IP is an outdoor-rated video panel sporting an IP65 rating and brilliant weather-proof SMD 2623 LEDs with a pixel pitch of 6.9 mm. With 4,500 NITS, your video image will stand out even in broad daylight. Flexibility of use is optimized by an advanced die-cast aluminum housing, magnetic modules for quick serviceability, and a blow-through design that has an 8% transparency to increase safety in outdoor applications. The innovative design includes sealable louvers, which gives you the option to close them to block back light when used indoors.

Features
• 6.9 mm pixel pitch modular video panel with SMD 2623 LEDs
• Stainless steel hardware is integrated into each panel for secure interlocking between panels
• Solid aluminum die-cast construction makes these panels durable for the touring/rental market
• Magnetic LED modules make replacing them fast and painless in the field or on the repair bench
• Tri-color (RGB), full black body LEDs provide the highest in class contrast and black levels
• Computer guided CNC cutting provides ultimate precision for seamless modular connections
• Works with VIP' Driver and VIP' Signal Distributor
• Use with the CHAUVET Professional X-Series Rig Bar to hang the panels, or with the M12 mounting points on the back of each panel
• IP65 for temporary outdoor/wet use

Specifications

• Control Protocol: LINSN
• Data Connectors: Seetronic Etherkon IP65
• Light Source: 5,184 LEDs (tri-color RGB) SMD 2623, 50,000 hours life expectancy
• Color Wavelength: red (625 nm), green (525 nm), blue (470 nm)
• Pixels: 72 x 72
• Pixel Pitch: 6.9 mm
• Pixel Density: 20,736/m2
• Viewing Angle: 130
• Display Refresh Rate: 1,700 Hz
• Transparency: 8%
• Illuminance: 4,500 NITS
• IP Rating: IP65, temporary outdoor/wet use
• Cable Length (signal extension): 2.46 ft (0.75 m)
• Cable Length (power): 6 ft (1.83 m)
• Cable Length (power extension): 2.46 ft (0.75 m)
• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Power Linking: 17 units @ 120 V; 28 units @ 208 V; 29 units @ 230 V
• Maximum Panels/VIP' Driver: 120
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 127 W, 1.05 A @ 120 V, 60 Hz
• Power and Current: 135 W, 0.65 A @ 208 V, 60 Hz
• Power and Current: 135 W, 0.63 A @ 230 V, 50 Hz
• Weight: 19.8 lb (9 kg)
• Dimensions: 19.7 x 3.27 x 20.35 in (500 x 83 x 517 mm)
• Housing Material: Aluminum die-cast
• Compatible Mounting Options: X Series Rig Bar (RB-X50CM, RB-X200CM), or M12 Bolt/Clamp (rear mounting)
• Accessories (required): VIP' Driver
• Accessories (optional): VIP' Signal Distributor
• Accessories (optional): VIP' Media Server Pro
• Accessories (optional): VIP' 5162b Signal Processor
• Approvals: CE, EMC, MET
