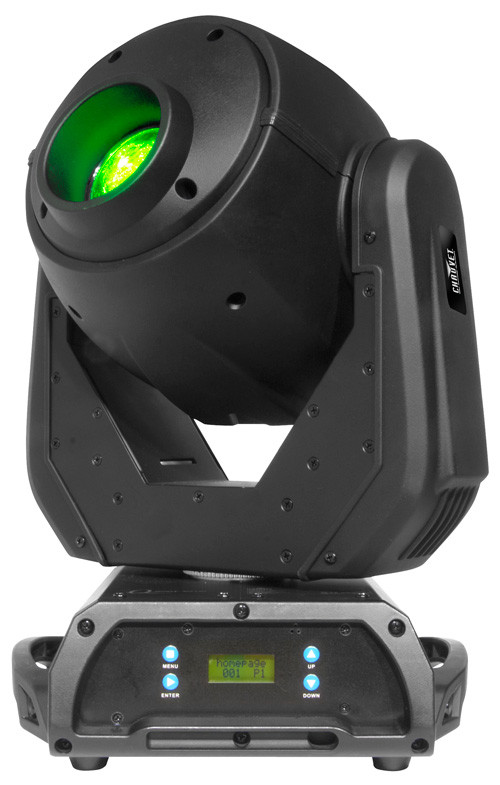

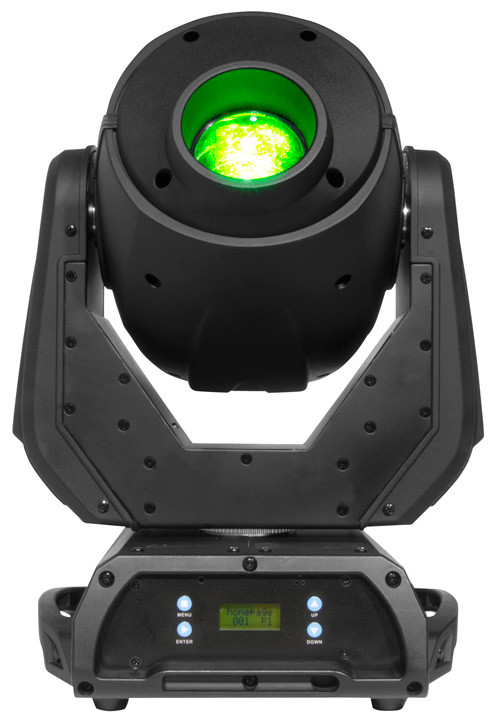

Chauvet Professional Q-Spot 360-LED Moving Yoke Spot Fixture

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

chauvet professional qspot360led
chauvet professional qspot360led Chauvet Professional Q-Spot 360-LED Moving Yoke Spot Fixture Chauvet Professional Q-Spot 360-LED Moving Yoke Spot Fixture Chauvet Professional Q-Spot 360-LED Moving Yoke Spot Fixture Chauvet Professional Q-Spot 360-LED Moving Yoke Spot Fixture Chauvet Professional Q-Spot 360-LED Moving Yoke Spot Fixture
Q-Spot' 360-LED is the most economical solution for high impact, yet energy-saving projections from a moving yoke spot fixture. It shares the architecture and optical system of the Q-Spot' 460-LED and, likewise, boasts a feature-rich profile that delivers crisp and vivid patterns equally suited for mobile and permanent applications.

• Patented optical and lens path for superior output
• Crisp focus provides stunning gobo images
• Lightweight and easy to hang
• Quiet operation for the most discerning of installations
• DMX channels: DMX channels: 11 or 14
• Color Wheel: 7 colors + white, continuous scroll at variable speeds
• Gobo wheel (static): 8 gobos, continuous scroll at variable speeds
• Gobo wheel (rotating): 7 gobos, interchangeable, slot-n-lock, continuous scroll at variable speed
• 3-facet rotating prism
• Variable electronic dimmer (0 100%)
• Remote fixture reset
• Move-in-black for pan/tilt
• Built-in automated programs
• Built-in sound activated programs
• 255 user-programmable steps without DMX controller
• High-powered, 3 (10W) LEDs
• User-selectable pan/tilt ranges
• Automatic pan/tilt correction
• Reset to factory settings option
• User-selectable basic or advanced operating modes
• Easy access door for gobo change
Specifications

• DMX connectors: 3-pin & 5-pin
• Pan & tilt: 540 / 270
• Source: 3 (10W) LED, 50,000 hours
• Configuration: 3 White (3 A x 3.33 VDC = 10 W)
• Strobe Speed: 0 - 20hz
• Beam angle: 16
• Lux: 1,100 @ 5 m
• AC Voltage Range: 100240 V, 50/60 Hz (auto-ranging)
• Power Consumption 120 V, 60 Hz: 74 W, 1.023 A (operating)
• Power Consumption 208 V, 50 Hz: 71 W, 0.572 A (operating)
• Power Consumption 230 V, 50 Hz: 72 W, 0.541 A (operating)
• Dimensions: 13 x 10.6 x 18.6 in (330 x 270 x 473 mm)
• Weight: 22 lbs (10 kg)
• Gobo Size: 25.8 mm outside, 20.45 mm image, 1.35 mm max thickness
• Environment: IP20, dry location
• Power Connection: Locking IEC

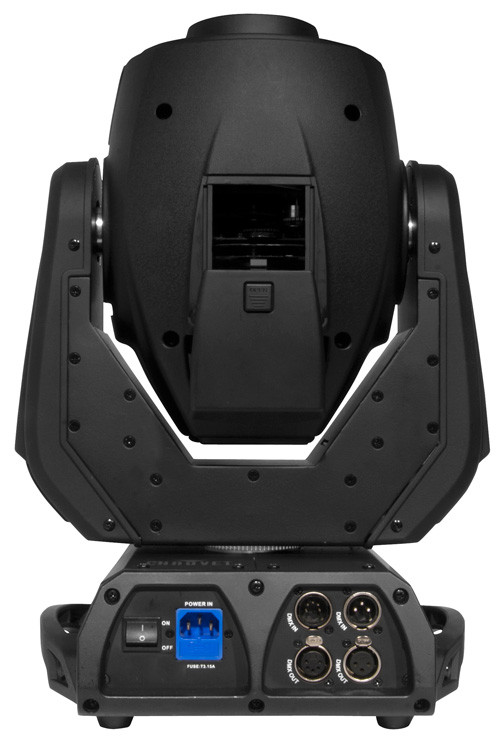

• Control Connection: 3-pin and 5-pin DMX input and output connectors
• Certification: CE, MET
