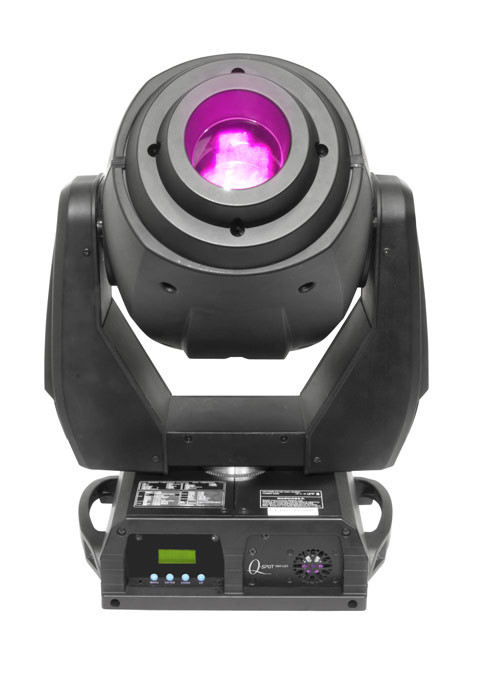

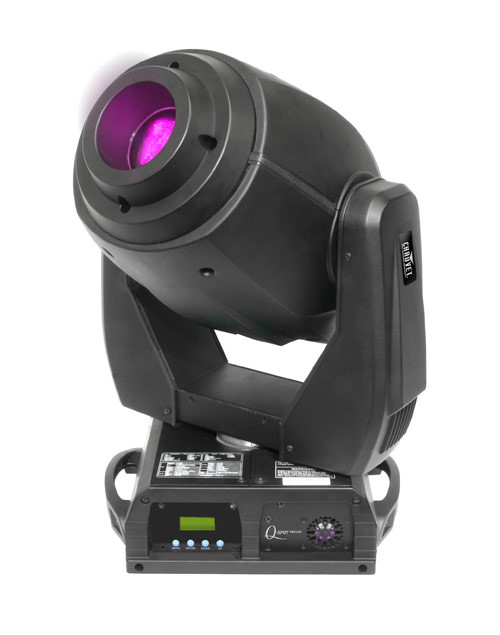

Q-Spot' 560-LED is the most powerful moving yoke spot in the Q-Series' due to its 3 60-watt white LEDs. Perfect for larger venues, it includes 7 colors plus white and 2 gobo wheels - 1 with 6 rotating slot-n-lock gobos and the other with 7 static gobos. Additional features include 13 or 17 channels of control, motorized focus and a 3-facet prism.
FEATURES:• 13 or 17 channel LED powered moving yoke spot
• Pan & tilt: 540 / 270
• Colors Wheel: 7 + white, split colors, continuous scroll at variable speeds
• Gobo Wheel 1: Indexed gobo wheel with 7 metal gobos + open
• Gobo Wheel 2: Indexed rotating gobo wheel with 6 (4 metal + 2 glass)+ open interchangeable, slot-n-lock gobos
• 3-facet rotating prism
• Variable shutter
• Variable iris
• Variable focus
• Variable 16-bit dimming (0100%)
• Move-in-black for pan/tilt, color, gobo

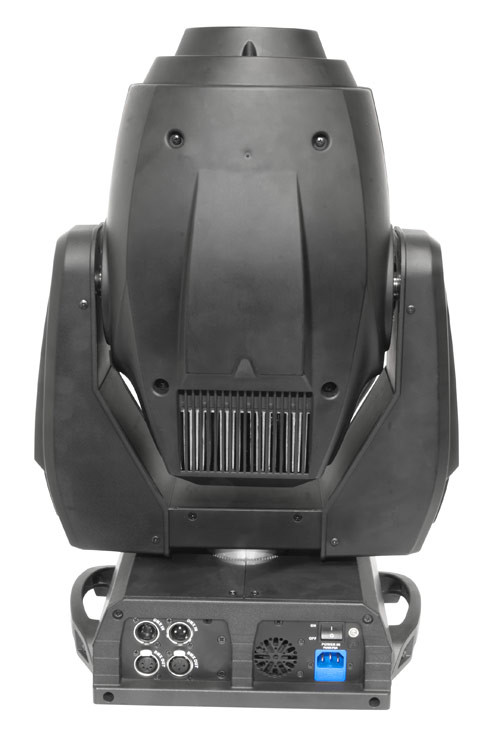

• 3-pin and 5-pin DMX connections
• Automatic pan & tilt correction
SPECIFICATIONS:• Source: 3 (60 W) LED, 50,000 hours
• Configuration: 3 white (14 A per die)
• Beam angle: 19
• Lux: 1,929 lux @ 5 m
• AC Voltage Range: 100240 V, 50/60 Hz (auto-ranging)
• Power Consumption 120 V, 60 Hz: 318 W, 2.6 A (operating)
• Power Consumption 230 V, 50 Hz: 302 W, 1.3 A (operating)
• Dimensions: 11.7 x 16.1 x 25 in (296 x 408 x 634 mm)
• Weight: 29 lbs (13.2 kg)
• Gobo Size: 25.8 mm outside, 18.2 mm image, 1.2 mm max thickness
• Power Connection: IEC
• Control Connection: 3 and 5-pin DMX
• Certification: CE, ETLc
• Environment: IP20, dry location
