FEATURES:• DMX channels: 8, 10, 16, 29
• Operating modes 8-channel: Pan, Tilt, HSV, Strobe, Zoom, Control
10-channel: Pan, Tilt, RGBW, Dimmer, Strobe, Zoom, Control
16-channel: Pan, Pan Fine, Tilt, Tilt Fine, Pan/Tilt Speed, RGBW, Macro, Auto Rings, Auto Speed, Dimmer, Strobe, Zoom, Control
29-channel: Pan, Pan Fine, Tilt, Tilt Fine, Pan/Tilt Speed, Dimmer, Strobe, Zoom, Control, R1, G1, B1, W1, R2, G2, B2, W2, R3, G3, B3, W3, R4, G4, B4, W4, R5, G5, B5, W5
• Quad-colored RGBW LEDs with brilliant color mixing
• Smooth zoom and dimming
• Fast, quiet movement
• Five zones of control
• Cam-lock omega brackets for quick installation
SPECIFICATIONS:• DMX connectors: 3- and 5-pin
• Pan & tilt: 540/270

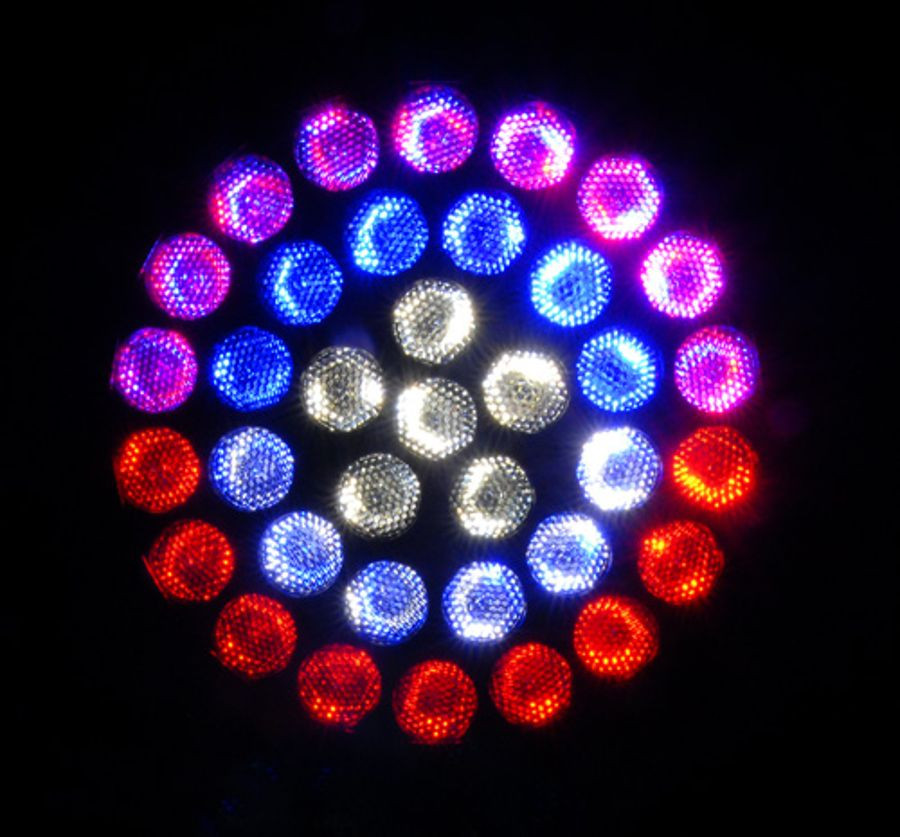

• Light source: 36 (10 W) quad-colored LEDs, 50,000 hrs
• Light source: Red (713 mA x 2.65 VDC = 1.89 W)
Green (703 mA x 3.90 VDC = 2.74 W)
Blue (711 mA x 3.66 VDC = 2.60 W)
White (705 mA x 3.33 VDC = 2.35 W)
• Strobe rate: 010 Hz
• Zoom angle: 14.536
• Beam angle: 14.5/36
• Field angle: 29/56
• Illuminance: 2,726 lux @ 5 m (14.5)612 lux @ 5 m (36)
• Input voltage: Auto-ranging 100240 VAC, 50/60 Hz
• Power and current: 510 W, 5.00 A @ 120 V, 60 Hz (operating)
447 W, 2.25 A @ 230 V, 50 Hz (operating)
• Weight: 27.6 lbs (12.52 kg)
• Dimensions: 11.89 x 15.74 x 18.58 in (302 x 400 x 472 mm)
• Approvals: CE, MET
• Environment: IP20, dry location
