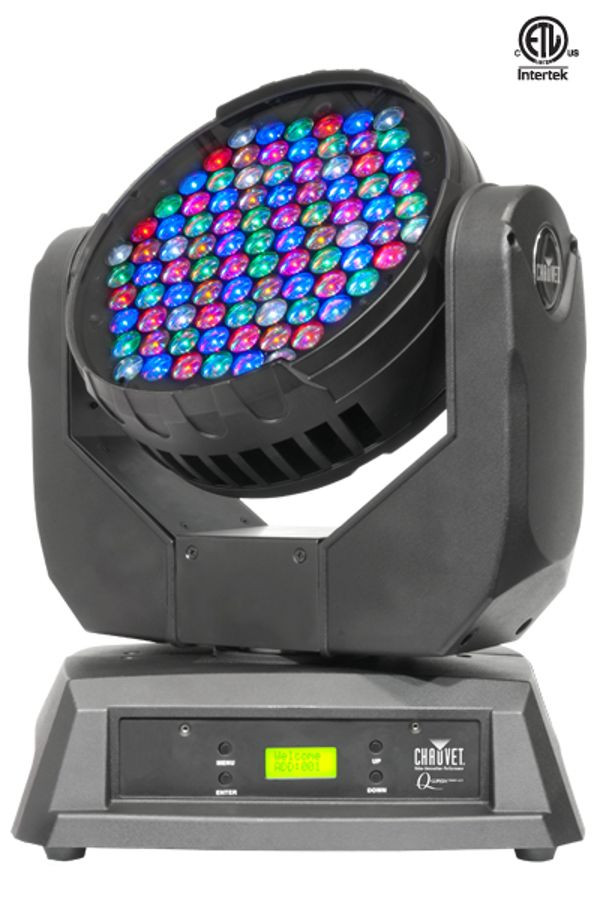

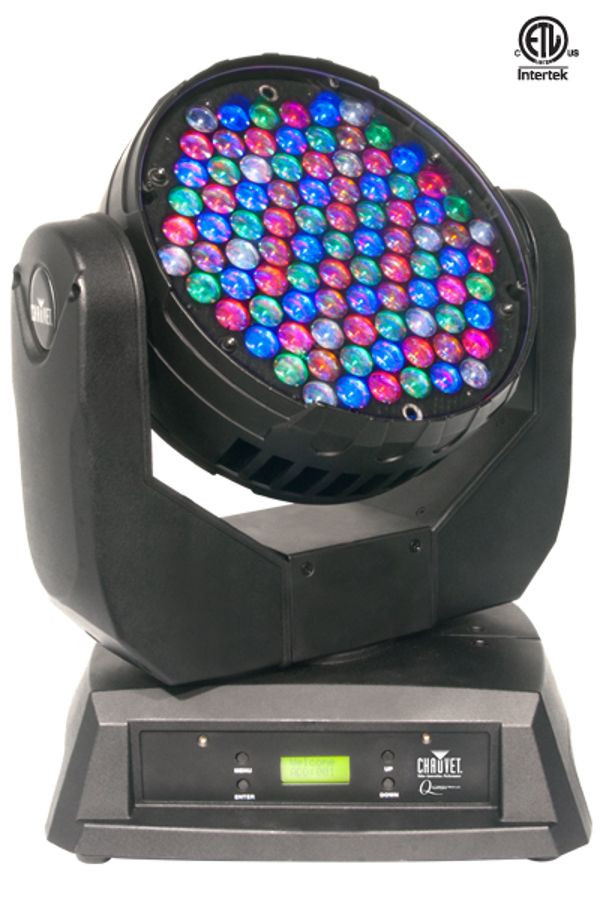

Q-Wash' 560Z-LED is a lightweight, LED moving yoke with a variable zoom (six-32 degrees) ideal for highlighting specific areas or to flood the stage with light. Powered by 91 three-watt RGBAW CREE LEDs, it delivers massive, flicker-free outputfrom the most vibrant hues to subtle pastels. A quick pan-and-tilt speed allows the fixture to get into position. Q-Wash' 560Z-LED features three- and five-pin DMX connections.
FEATURES:• DMX channels: 12 or 15
• 6 32 zoom
• Colors: RGBWA LEDs
• RGBWA color mixing
• IP rating: IP20
• Lightweight and easy to install
• 3-pin and 5-pin DMX connections
• User-selectable pan/tilt ranges
• Automatic pan/tilt correction
• User-selectable basic or advanced operating modes
SPECIFICATIONS:• Pan & tilt: 540 / 270
• DMX connection 3-pin & 5-pin

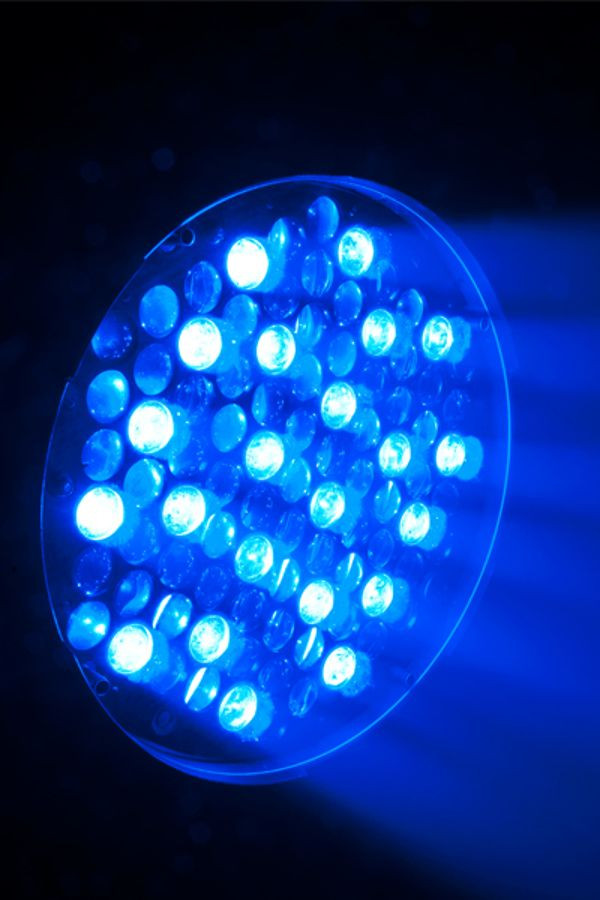

• Source: 91 (3 W) LEDs, 50,000 hours
• Configuration: 22 red (800 mA), 23 green (800 mA), 22 blue (800 mA), 12 white (800 mA), 12 amber (800 mA)
• Installed Optic(s): Zoomable optics from 632
• Beam angle: 6- 32
• Field angle: 9- 37
• Lux: 13,100 (6) - 917 (32) @ 5 m
• AC Voltage Range: 100 - 240 V, 50/60 Hz (auto-ranging)
• Power Consumption 120 V, 60 Hz: 309 W, 2.7 A (operating)
• Power Consumption 230 V, 50 Hz: 289 W, 1.4 A (operating)
• Dimensions: 13.3 x 9.1 x 14.2 in (339 x 232 x 361 mm)
• Weight: 21.2lbs (9.62kg)
• Power Connection: IEC

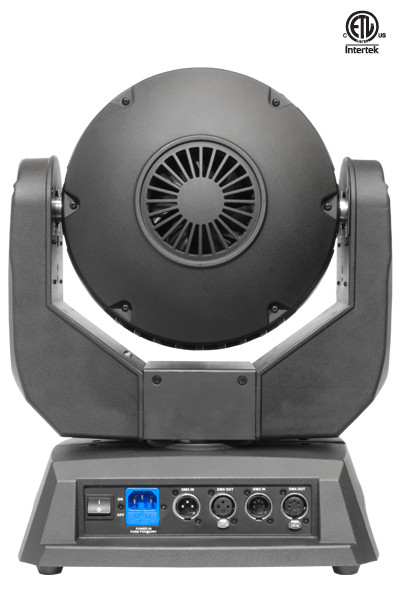

• Control Connection: 3-pin & 5-pin DMX
• Certification: CE, ETLc
• Environment: IP20, dry location
