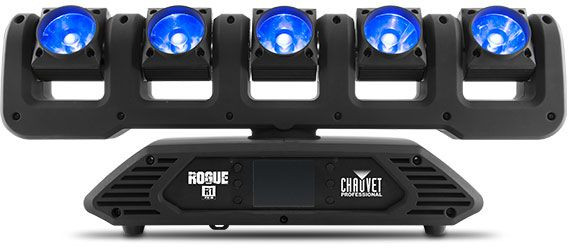

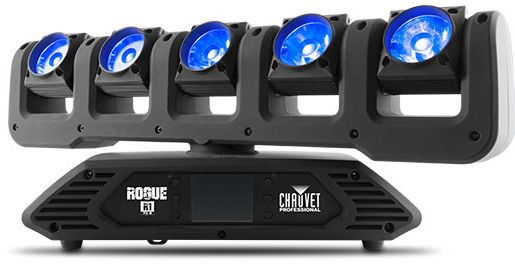

Chauvet Professional Rogue R1 FXB Features • Fully featured RGBW LED yoke effect beam fixture with pixel mapping
• 16-bit Dimming of master dimmer as well as individual colors for smooth control of fades
• Built in color and tilt macros for quick design possibilities
• Continuous movement of pan and tilt functions
• Individual control of all five heads for movement and output
• Quiet operation for a wide range of installation situations
• DMX, WDMX, sACN, Art-Net, and Kling-Net control for full flexibility
• 7 beam angle to create crisp and defined areal beam effects
Chauvet Professional Rogue R1 FXB Specs OPTICAL
• Light Source: 5 LEDs (quad-color RGBW) 15 W, (4 A), 50,000 hours life expectancy
• Installed Optics: 5
• Beam Angle: 7
• Field Angle: 11
• Illuminance : 5,361 lux @ 5 m
DYNAMIC EFFECTS
• Pan and Tilt: 540/540
• Pan and Tilt Ranges: 540, 360, 180 pan/540, 270, 180 tilt
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: No
• Color Temperature Presets: No
• Move-in-Black: Yes
• Dim Curves: 4
CONSTRUCTION / PHYSICAL
• Dimensions: 25.19 x 7.05 x 9.72 in (640 x 179 x 247 mm)
• Weight: 24.2 lb (11 kg)
• Exterior Color: BLACK
• Housing Material: High-impact flame-retardant polymer
CONNECTIONS
• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
CONTROL
• Control Protocol: Art-Net, Kling-Net, DMX, sACN
• DMX Channels Single Mode: 18, 25, or 47
• DMX Channels Dual Mode Function: 9, 17, 23
• DMX Channels Dual Mode Pixel: 15 or 20
• Art-Net Channels Single Mode: 18, 25, or 47
• Art-Net Channels Dual Mode Function: 9, 17, 23
• Art-Net Channels Dual Mode Pixel: 15 or 20
ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 9 units @ 120 V; 15 units @ 208 V; 18 units @ 230 V
• Power and Current: 207 W, 1.68 A @ 120 V, 60 Hz
• Power and Current: 200 W, 0.938 A @ 208 V, 60 Hz
• Power and Current: 197 W, 0.876 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
• CE, METIP Rating: IP20, dry location
WHAT'S INCLUDED
• Rogue RX1
• Edison (Local) plug to Neutrik powerCON
• Omega bracket with mounting hardware
