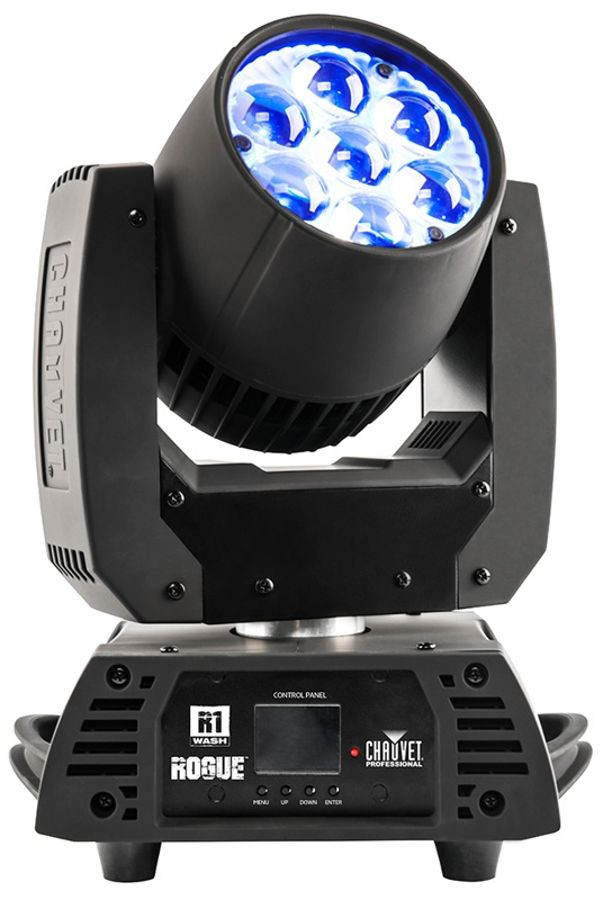

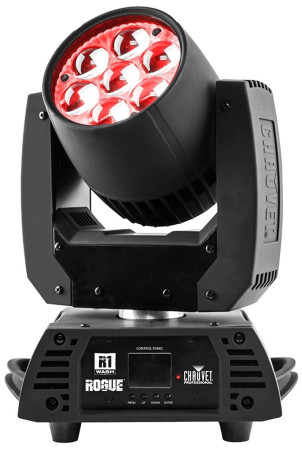

The Chauvet Professional Rogue R1 Wash. It's what do you get when you combine a bright wash unit, powerful visual effects, and smoother than smooth color blending. This moving head wash gives you large coverage at high speeds, with an 11 to 48 degree zoom range. This versatile piece from Chauvet professional offers smooth pan and tilt, as well as a unique lens system designed to give you the perfect combined color of wash that you need.
VIDEO
Features • 7 RGBW LEDs, 15 W each
• 3- and 5-pin DMX input/output connections
• Unique lens design for excellent color blending
• Fast, smooth pan and tilt movement
• 6 distinct dimming modes for advanced control
• Omega mounting bracket, fits all Rogue', Next', and Legend' fixtures
• Easy to read OLED display with simple, effective menu options
• Simple and complex DMX channel profiles for programming versatility
Specifications • DMX Channels: 14, 15, 19 or 21
• Data Connectors: 3- and 5-pin XLR
• Light Source: 7 LEDs (quad-color RGBW) 15 W, (980 mA), 50,000 hours life expectancy
• Pan and Tilt: 540/230
• Pan and Tilt Ranges: 180, 360, 540 pan/90, 180, 230 tilt
• Automatic Pan/Tilt Correction: Yes
• Built-in Automated Programs: Yes
• Customizable Programs: No
• Recall Custom Programs: No
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Beam Angle: 8 to 30
• Field Angle: 11 to 48
• Zoom Angle: 11 to 48
• Dimming Modes: 6
• Illuminance (11): 3,098 lux @ 5 m
• Illuminance (48): 299 lux @ 5 m
• Color Temperature (range): 2800 to 10000 K
• IP Rating: IP20, dry location
• Cable Length: 5 ft (1.5 m)
• Power Connection: Edison plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Power Linking: 10 units @ 120 V; 18 units @208 V; 21 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 161 W, 1.34 A @ 120 V, 60 Hz
• Power and Current: 141 W, 0.72 A @ 208 V, 60 Hz
• Power and Current: 139 W, 0.62 A @ 230 V, 50 Hz
• Weight: 13 lb (5.9 kg)
• Dimensions: 7.36 x 10.43 x 13.94 in (187 x 265 x 354 mm)
• Approvals: CE, MET
Check out the rest of the Chauvet Professional ROGUE series!
