Features: • Intense 300 W LED light engine for punchy, bold beams
• Perfect gobo morphing between gobo wheels
• Two color wheels with 7 colors, split color ability, and continuous variable speed scrolling
• Two gobo wheels: one fixed slot scrolling wheel and one rotating, interchangeable, scrolling wheel
• Iris, 3-facet prism, and frost for beam control
• Beautiful 16-bit LED dimming for ultimate fade control
• Neutrik powerCON power input/output connections for power linking
• 3- and 5-pin DMX input/output connections
• RDM enabled for remote addressing and trouble shooting
• Selectable LED maximum output to match legacy Rogue R2 Spots
• Selectable PWM settings to maintain flicker-free operation on camera
• Simple and complex DMX channel profiles for programming versatility
Optical • Light Source: 1 LEDs (CW) 300 W, (8.7 amps), 7,836 K, 50,000 hours life expectancy
• CRI: 72
• Beam Angle: 16.5
• Field Angle: 16.5
• Illuminance (total): 8,177 lux@ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects • Pan and Tilt: 540/250
• Pan and Tilt Ranges: 540, 360, 180 pan/250, 180, 90 tilt
• Colors (1): 7 + white, split colors, continuous scroll at variable speeds
• Colors (2): 7 + white, split colors, continuous scroll at variable speeds
• Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1(rotating): 29 mm (outside), 27.5 mm (image), 0.5 mm (max. thickness)
• Framing Shutters: No
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Focus: Motorized
• Frost: Motorized
• Iris: Motorized
• Prism: 3 Facets, motorized, rotating
• Strobe Rate: 0 to 22 Hz
• Standalone Color Mixing: No
• Color Temperature Presets: No
• Move-in-Black: Yes
Construction / Physical • Dimensions (single unit): 16.1 x 13.5 x 19.25 in (409 x 343 x 489 mm)
• Weight (single unit): 47.8 lb (21.7 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

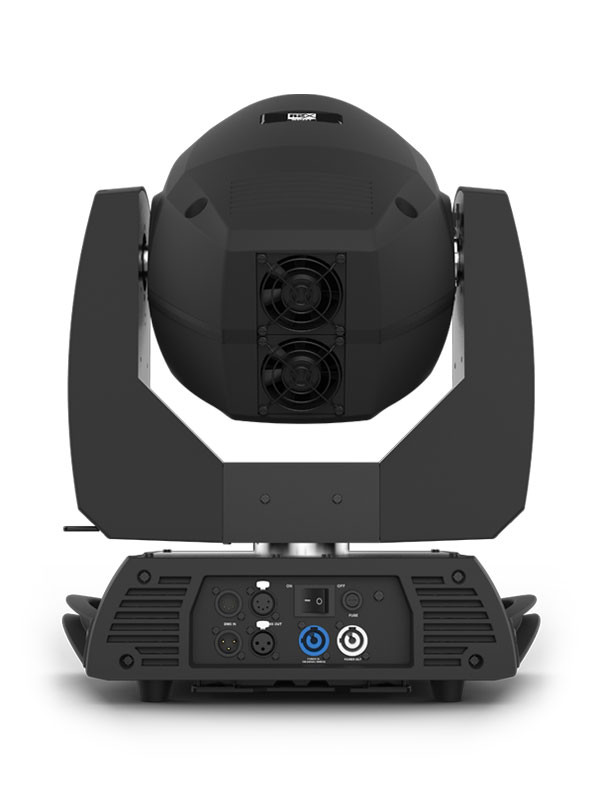

Connections • Power Connection: Edison (local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
Control • Control Protocol: DMX, RDM
• DMX Channels: 18 or 21
• Modes/Personalities: 2 personalities (18, 21)
Electrical • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 3 units @ 120 V; 6 units @ 208 V; 7 units @ 230 V
• Power and Current: 517 W, 4.31 A @ 120 V, 60 Hz
• Power and Current: 427 W, 2.05 A @ 208 V, 60 Hz
• Power and Current: 437 W, 1.9 A @ 230 V, 50 Hz
• Breaker Size: F 7A, 250 V
Certifications / Qualifications • CE, MET
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)

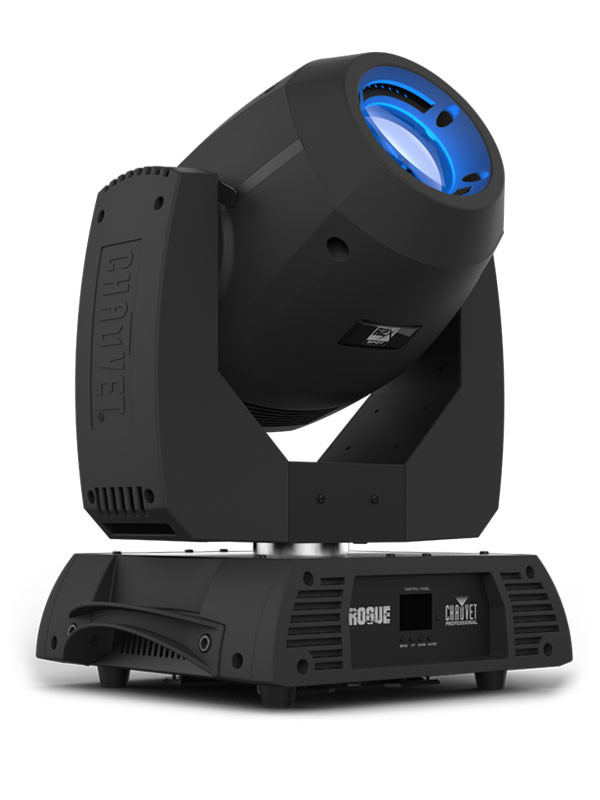

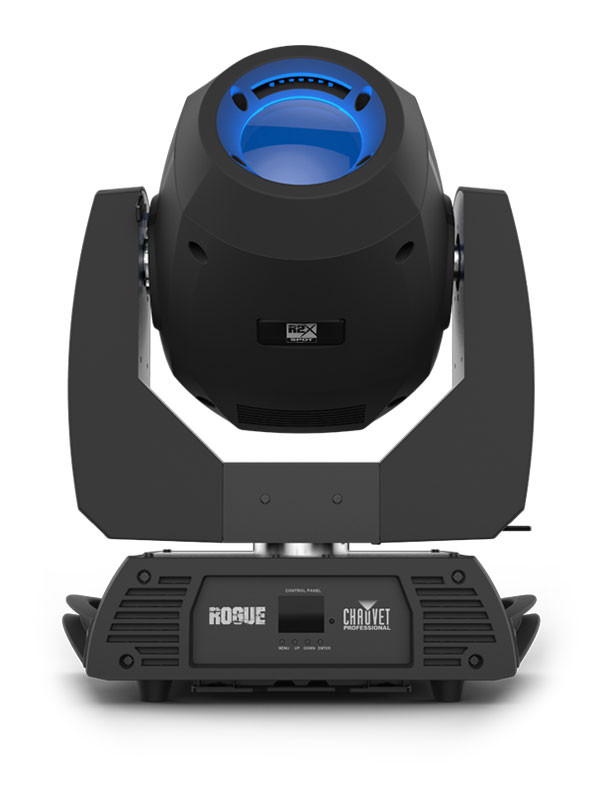

What's Included • Rogue R2X Spot
• Neutrik powerCON power cord
• Omega bracket with mounting hardware
Optional Accessories • Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• DMX Cables
• powerCON extension cables
