Features • Intense 300 W LED light engine for punchy, bold beams
• Zoom angle of 13 to 37 to easily cover stages and surfaces from a distance
• Perfect gobo morphing between gobo wheels
• Two color wheels with 7 colors, split color ability, and continuous variable speed scrolling
• Two gobo wheels: one fixed slot scrolling wheel and one rotating, interchangeable, scrolling wheel
• Iris, 3-facet prism, and frost for beam control
• Beautiful 16-bit LED dimming for ultimate fade control
• Neutrik powerCON power input/output connections for power linking
• 3- and 5-pin DMX input/output connections
• RDM enabled for remote addressing and trouble shooting
• Selectable PWM settings to maintain flicker free operation on camera
• Simple and complex DMX channel profiles for programming versatility
Specifications Optical
•Light Source: 1 LED (CW) 300 W, (8.8 A), 7,564 K, 50,000 hours life expectancy.
•Color Temperature (at full): 7,564 K
•CRI: 74
•Beam Angle: 12 to 36
•Field Angle: 13 to 37
•Zoom Angle: 13 to 37
•Illuminance (13): 12,828 lux @ 5 m
•Illuminance (37): 1,768 lux @ 5 m
•Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects
•Pan and Tilt: 540/250
•Pan and Tilt Ranges: 180, 360, 540 pan/90, 180, 250 tilt
•Colors (1): 7 + white, split colors, continuous scroll at variable speeds
•Colors (2): 7 + white, split colors, continuous scroll at variable speeds
•Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
•Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
•Gobo Size: Gobo Wheel 1 (rotating): Positions 1, 2, 3, 4, and 7 (metal); size: 28.8 mm (outside), 23.8 mm (image), 0.5 mm (max. thickness)
•Gobo Size: Gobo Wheel 1 (rotating): Positions 5 and 6 (glass); size: 27 mm (outside), 24 mm (image), 3 mm (max. thickness)
•Dimmer: Electronic
•Shutter/Strobe: Electronic
•Zoom: Motorized
•Focus: Motorized
•Frost: Motorized
•Iris: Motorized
•Prism: 3 Facets, motorized, rotating
•Strobe Rate: 0 to 22 Hz
•Move in Black: Yes
Construction / Physical
•Dimensions: 14.68 x 11.1 x 23.66 in (373 x 282 x 601mm)
•Weight: 50 lb (22.7 kg)
•Exterior Color: Black
•Housing Material: High-impact flame-retardant polymer

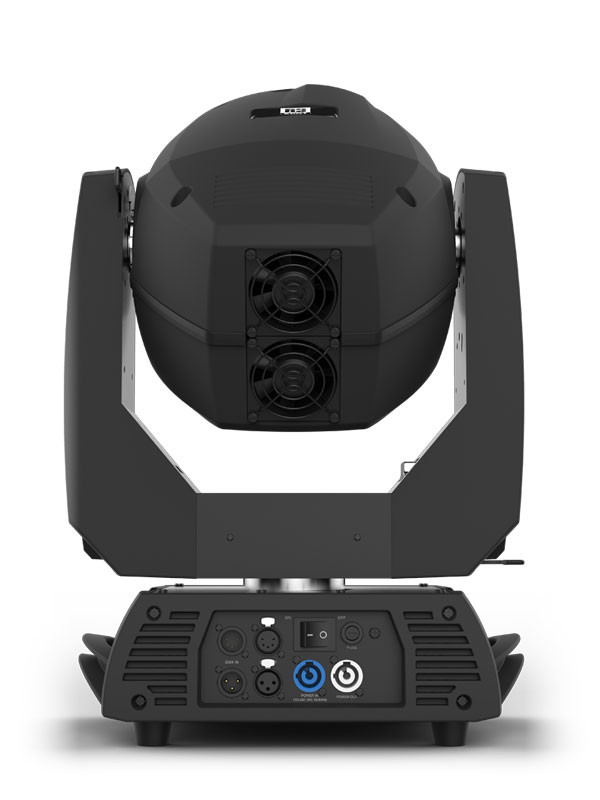

Connections
•Power Connection: Edison (local) plug to Neutrik powerCON
•Power Input: Neutrik powerCON
•Power Output: Neutrik powerCON
•Data Connectors: 3- and 5-pin XLR
•Cable Length (power): 5 ft (1.5 m)
Control
•Control Protocol: DMX, RDM
•DMX Channels: 19 or 25
•Modes/Personalities: 2 personalities (19, 25)
Electrical
•Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
•Power Linking: 3 units @ 120 V; 5 units @ 208 V; 6 units @ 230 V
•Power and Current: 514 W, 4.28 A @ 120 V, 60 Hz
•Power and Current: 488 W, 2.35 A @ 208 V, 60 Hz
•Power and Current: 492 W, 2.14 A @ 230 V, 50 Hz
Certifications / Qualifications
•CE, MET
•IP Rating: IP20, dry location
•Temperature (ambient): -4 F to 113 F (-20 C to 45 C)
What's Included

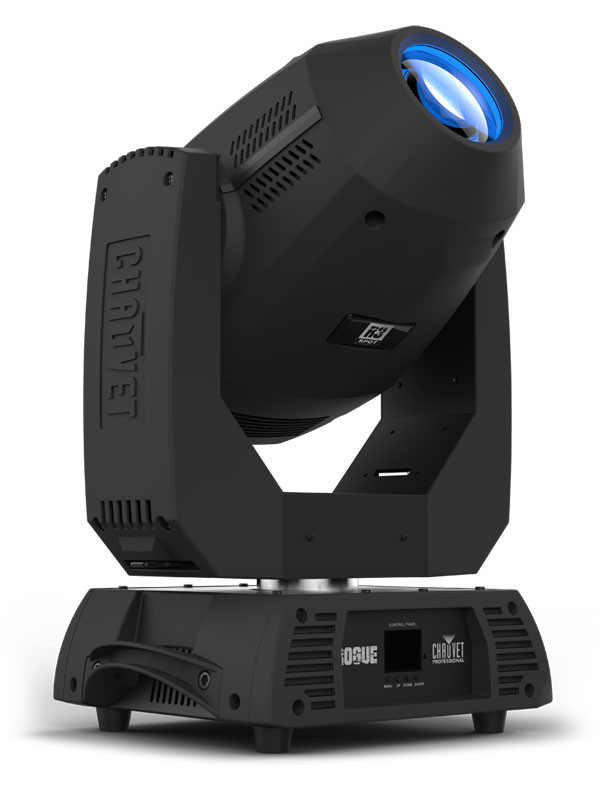

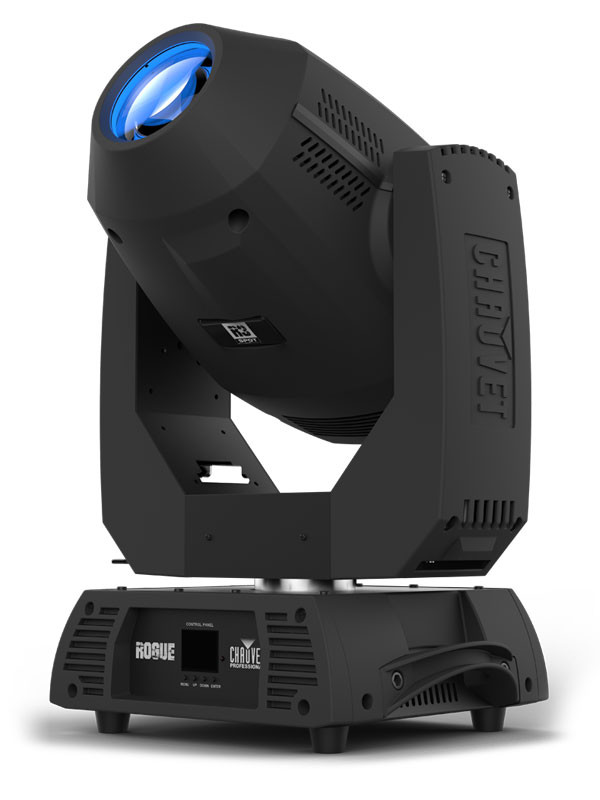

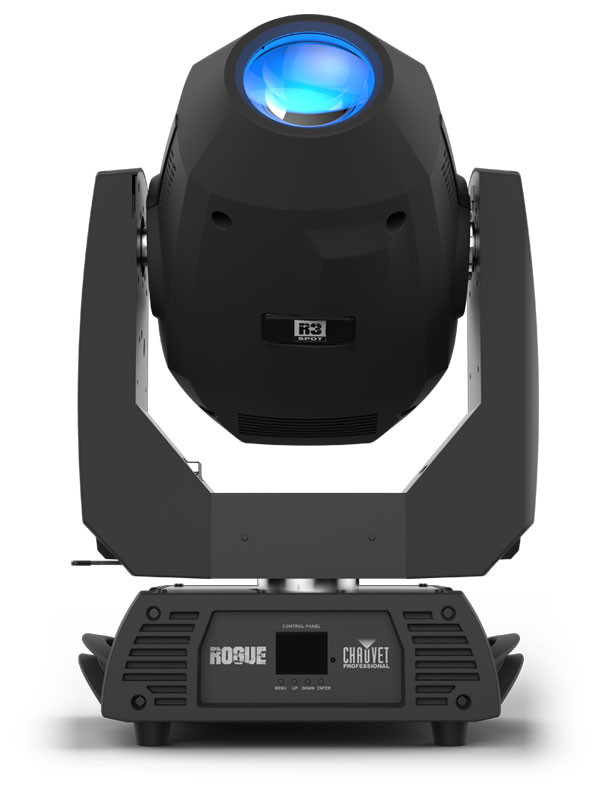

•Rogue R3 Spot
•Neutrik powerCON power cord
•2 Omega brackets with mounting hardware
Optional Accessories
•Professional Clamps: CTC-50HC, CTC-50HCN
•Safety Cable: SC-07
•DMX Cables
•powerCON extension cables
