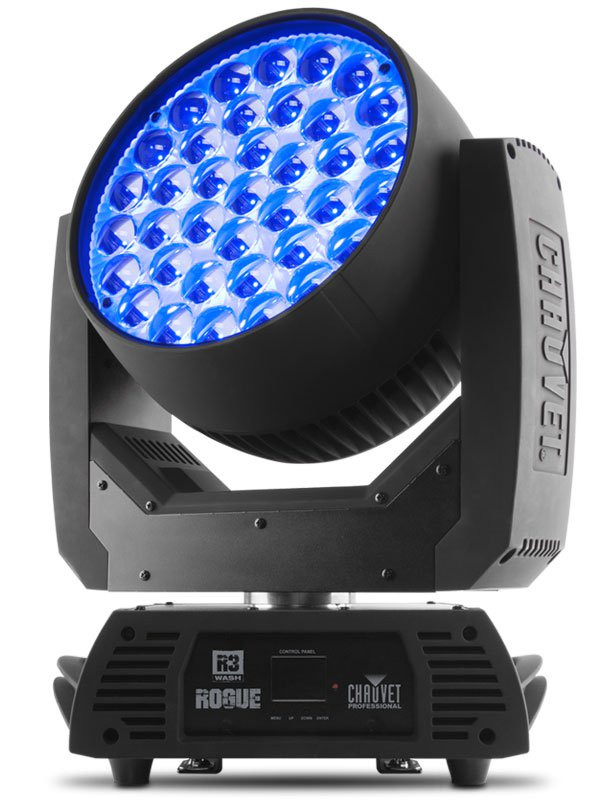

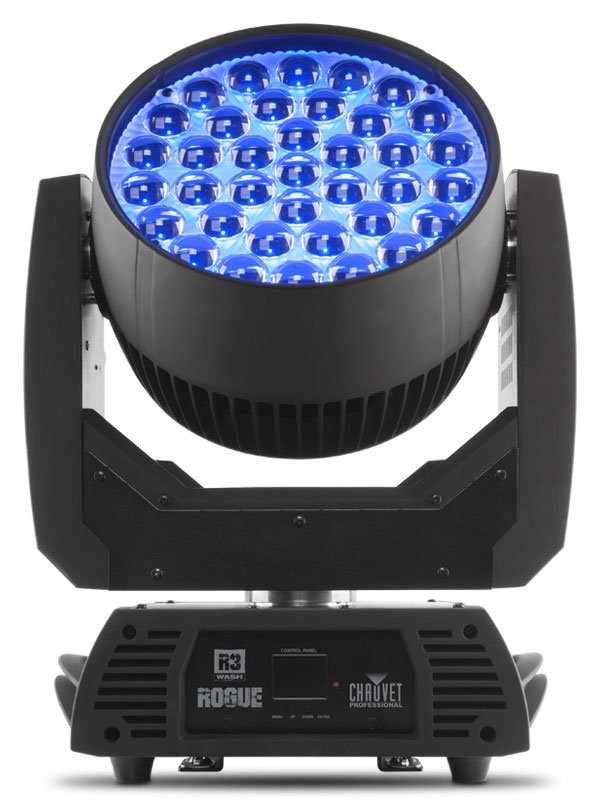

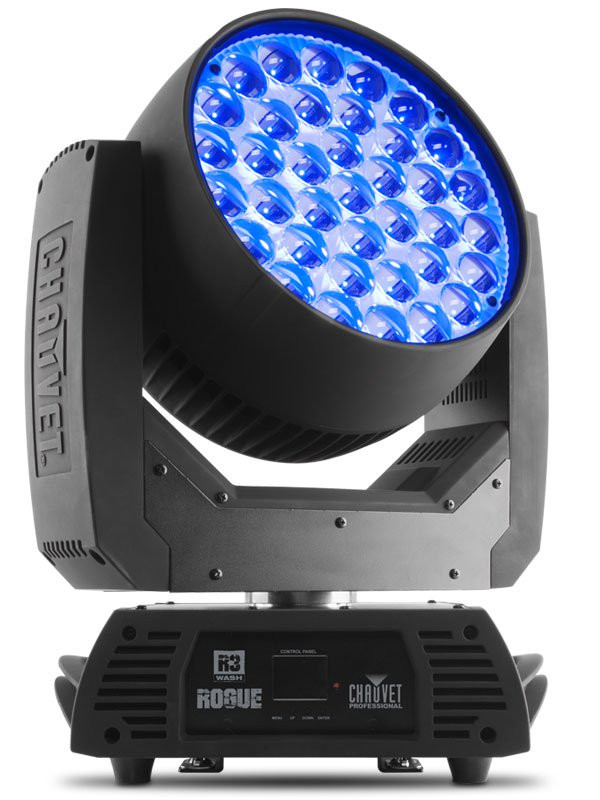

Features • Fully featured RGBW LED yoke wash fixture with LED zone control and zoom
• 16-bit Dimming of master dimmer as well as individual colors for smooth control of fades
• 37 RGBW LEDs, 15 W each
• 9 zones of LED control for pixel mapping effects
• Unique lens design offers excellent color mixing
• 6 distinct dimming modes for different dimming needs
• Easy to read OLED display with simple, effective menu options
• Simple and complex DMX channel profiles for programming versatility
• RDM (Remote Device Management) for added programming flexibility
Specifications Optical
• Light Source: 37 LEDs (quad-color RGBW) 15 W, (1 A), 50,000 hours life expectancy
• Color Temperature (range): 2,800 to 10,000 K
• Beam Angle: 8 to 30
• Field Angle: 12 to 49
• Zoom Angle: 12 to 49
• Illuminance (12): 21,000 lux @ 5 m
• Illuminance (49): 1,902 lux @ 5 m
• PWM Frequency: 2,400 Hz
Dynamic Effects
• Pan and Tilt: 540/230
• Pan and Tilt Ranges: 180, 360, 540 pan/90, 180, 230 tilt
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Curves: 4
• Built-in Automated Programs: Yes
• Customizable Programs: No
• Recall Custom Programs: No
Construction / Physical
• Dimensions: 15.51 x 11.73 x 18.50 in (394 x 298 x 470 mm)
• Weight: 38.5 lb (17.46 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

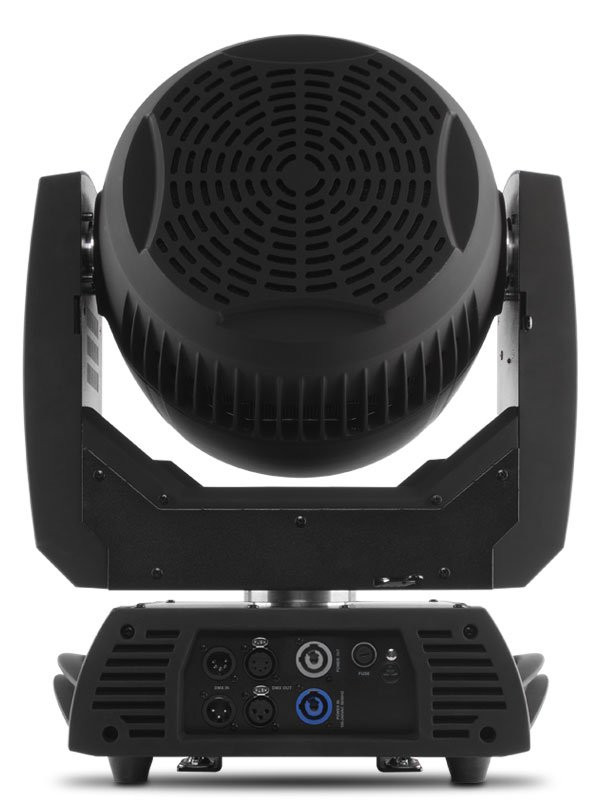

Connections
• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
Control
• Control Protocol: DMX, RDM
• DMX Channels: 21, 58, 99
• Modes/Personalities: 3 personalities
Electrical
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V
• Power and Current: 660 W, 6.21 A @ 120 V, 60 Hz
• Power and Current: 689 W, 3.40 A @ 208 V, 60 Hz
• Power and Current: 704 W, 3.10 A @ 230 V, 50 Hz
Certifications / Qualifications
• CE, MET
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)
What's Included
• Rogue R3 Wash
• Neutrik powerCON power cord
• Omega bracket with mounting hardware
Optional Accessories
• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• Neutrik powerCON cables
• DMX Cables
