Features • Osram Sirius lamp, 330 W X8, 8000 K, 1,500 hours life expectancy
• 3- and 5-pin DMX input/output connections
• Fast, smooth, and precise pan and tilt operation
• 111,000 lux at 15 m in beam mode
• Omega mounting bracket, fits all Rogue', Next', and Legend' fixtures
• Two prisms, 6-facet and 8-facet, independently controllable for amazing gobo effects
• Two gobo wheels, 1 rotating and 1 static wheel for dynamic projection images
• 2.5 to 8 zoom in beam mode, 5 to 19 zoom in spot mode for variable beam size options
Specifications • DMX Channels: 20 or 25

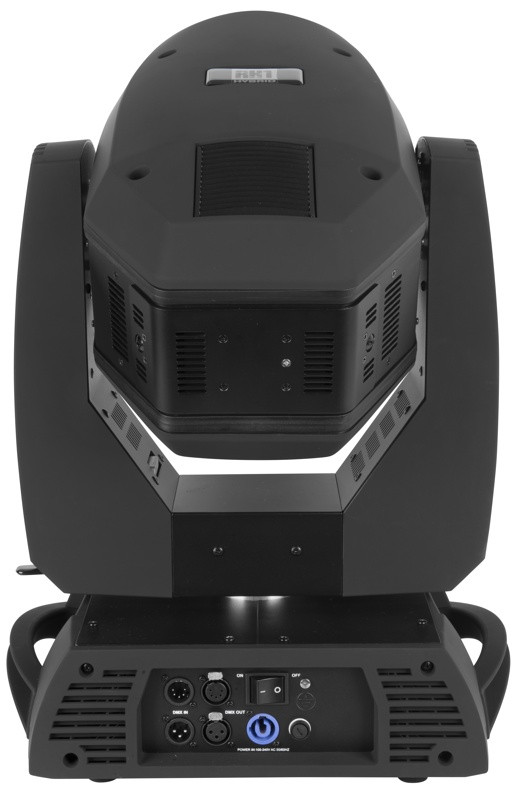

• Data Connectors: 3- and 5-pin XLR
• Light Source: Osram Sirius lamp, 330 W X8, 8000 K, 1,500 hours life expectancy
• Pan and Tilt: 540/260
• Pan and Tilt Ranges: 180, 360, 540pan /90, 180, 260 tilt
• Automatic Pan/Tilt Correction: Yes
• Colors: 13 + white, split colors, continuous scroll at variable speeds
• Gobos (1): 9 + open (9 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 14 + open (14 metal), continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating): 15.60 mm (outside), 14.44 mm (image), 1.12 mm (max. thickness)
• Prism (1): 6 Facets, motorized, rotating
• Prism (2): 8 Facets, motorized, rotating
• Dimmer: Motorized
• Focus: Motorized
• Frost: Motorized
• Shutter/Strobe: Motorized
• Beam Angle: 3 to 10 (Spot mode)
• Field Angle: 5 to 19 (Spot mode)
• Beam Angle: 1 to 4.5 (Beam mode)
• Field Angle: 2.5 to 8 (Beam mode)
• Zoom Angle (Spot mode): 5 to 19
• Zoom Angle (Beam mode): 2.5 to 8
• Illuminance (5): 112,200 lux @ 5 m
• Illuminance (19): 8,230 lux @ 5 m
• Illuminance (2.5): 111,000 lux @ 15 m
• Illuminance (8): 7,320 lux @ 15 m
• Color Temperature (at full): 6655 K
• IP Rating: IP20, dry location
• Cable Length: 5 ft (1.5 m)
• Power Connection: Neutrik powerCON power input connector
• Power Input: Neutrik powerCON power input connector
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 548 W, 4.53 A @ 120 V, 60 Hz
• Power and Current: 545 W, 2.54 A @ 208 V, 60 Hz
• Power and Current: 522 W, 2.30 A @ 230 V, 50 Hz
• Breaker Size: F 10 A, 250 V
• Weight: 55.2 lb (25.1 kg)
• Dimensions: 16.1 x 12.9 x 25.8 in (409 x 327 x 638 mm)
• Approvals: CE, MET
